Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid (B279986)

Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Immobiliser System / Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid (B279986)

DESCRIPTION

If there is a communication malfunction between the ECM and ID code box (immobiliser code ECU), or when the communication ID codes do not match, the ECM stores this DTC.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Note

B279986

Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid

Either of the following conditions is met (1 trip detection logic*):

  • A malfunction is detected in the communication or communication lines between the ECM and ID code box (immobiliser code ECU).
  • The communication ID codes of the ECM and ID code box (immobiliser code ECU) do not match.
  • ID code box (immobiliser code ECU)
  • ECM
  • Wire harness or connector

DTC output confirmation operation (Perform either of the following):

  • Start the engine and wait for 10 seconds. If there is a malfunction, the engine will stop (communication begins within 3 seconds of the engine start operation being performed, and DTCs are stored after 6 seconds).
  • Connect the cable to the negative (-) battery terminal, start the engine and wait for 10 seconds (communication begins within 3 seconds of the engine switch being turned on (IG), and DTCs are stored after 6 seconds).
  • *: Only output while a malfunction is present.
Vehicle Condition and Fail-safe Operation when Malfunction Detected

Vehicle Condition when Malfunction Detected

Fail-safe Operation when Malfunction Detected

Engine cannot be started

-
Related Data List and Active Test

DTC No.

Data List and Active Test

B279986

-

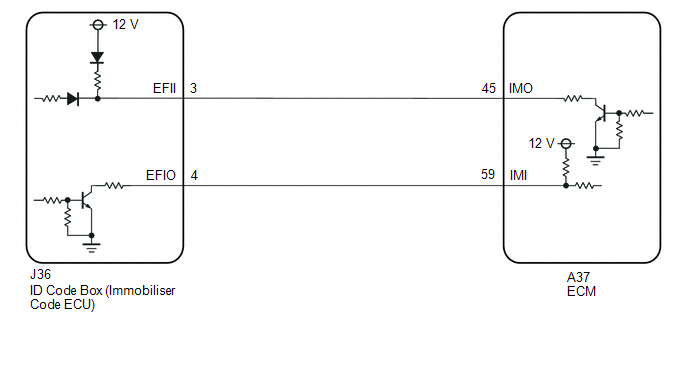

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When using the Techstream with the engine switch off, connect the Techstream to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Access. While using the Techstream, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the Techstream and the vehicle.
  • Before replacing the ECM or ID code box (immobiliser code ECU), refer to Registration.

    Click here

  • After performing repairs, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

HINT:

When DTC B279986 and the certification ECU (smart key ECU assembly) DTC are output simultaneously, first perform troubleshooting for the certification ECU (smart key ECU assembly) DTC.

PROCEDURE

1.

REGISTER ECU COMMUNICATION ID

(a) Register the ECU communication ID code.

Click here

NEXT

2.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs
NEXT

3.

CHECK FOR DTC

(a) Perform "DTC Output Confirmation Operation" procedure.

(b) Check for DTCs.

Powertrain > Engine > Trouble Codes

OK:

B279986 is not output.

OK

END (COMMUNICATION ID REGISTRATION WAS DEFECTIVE)
NG

4.

CHECK HARNESS AND CONNECTOR (ID CODE BOX (IMMOBILISER CODE ECU) - ECM)

(a) Disconnect the J36 ID code box (immobiliser code ECU) connector.

(b) Disconnect the A37 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J36-4 (EFIO) - A37-59 (IMI)

Always

Below 1 Ω

J36-3 (EFII) - A37-45 (IMO)

Always

Below 1 Ω

J36-4 (EFIO) or A37-59 (IMI) - Body ground

Always

10 kΩ or higher

J36-3 (EFII) or A37-45 (IMO) - Body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

5.

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

(a) Replace the ID code box (immobiliser code ECU) with a new one.

Click here

NEXT

6.

REGISTER ECU COMMUNICATION ID

(a) Register the ECU communication ID code.

Click here

NEXT

7.

CHECK WHETHER ENGINE STARTS

(a) Check that the engine starts.

OK:

Engine starts normally.

NG

REPLACE ECM

OK

8.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs
NEXT

9.

CHECK FOR DTC

(a) Perform "DTC Output Confirmation Operation" procedure.

(b) Check for DTCs.

Powertrain > Engine > Trouble Codes

OK:

B279986 is not output.

OK

END (ID CODE BOX (IMMOBILISER CODE ECU) WAS DEFECTIVE)
NG

REPLACE ECM
