Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components

COMPONENTS

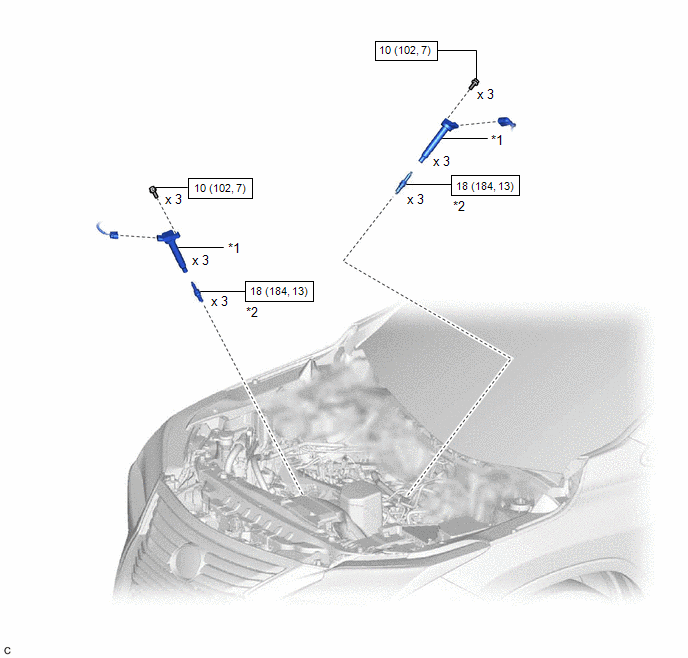

ILLUSTRATION

*1

IGNITION COIL ASSEMBLY

*2

SPARK PLUG

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

    Ignition Coil And Spark Plug
    ...

    Removal
    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during igni ...
