Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Disposal
DISPOSAL
PROCEDURE
1. DISPOSE OF HOOD SUPPORT ASSEMBLY
(a) Secure the hood support assembly horizontally in a vise with the piston rod pulled out.

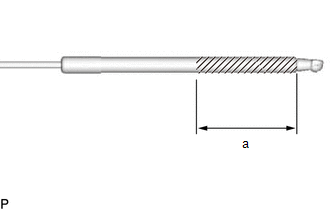

| (b) Wearing safety glasses, gradually cut a part within the area (a) shown in the illustration using a metal saw to release the gas. Specification:
NOTICE: Although the gas inside the hood support assembly is colorless, odorless and harmless, metal debris may scatter. Therefore, cover hood support assembly with a piece of cloth or other material. |
|
