Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL REAR COMBINATION LIGHT ASSEMBLY
(a) Engage the grommet.

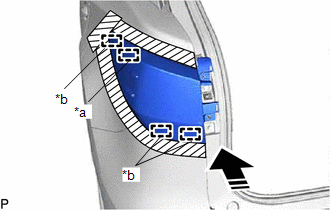

(b) Engage the 3 guides and pin to temporarily install the rear combination light assembly as shown in the illustration.
| *a | Pin |
| *b | Guide |
.png) | Install in this Direction |
(c) Install the rear combination light assembly with the 2 screws.
(d) Remove the protective tape.
(e) Connect the connector.
2. INSTALL REAR LIGHT COVER (for Bulb Type Turn Signal Light)
(a) Engage the 3 claws and guide as shown in the illustration.
| | Install in this Direction |
(b) Engage the 3 claws to install the rear light cover as shown in the illustration.
| | Install in this Direction |
3. INSTALL REAR LIGHT COVER (for LED Type Turn Signal Light)
(a) Engage the 4 claws as shown in the illustration.
| | Install in this Direction |
(b) Engage the 3 claws to install the rear light cover as shown in the illustration.
| | Install in this Direction |
4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)
Click here .gif)
5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)
Click here
6. INSTALL RECLINING REMOTE CONTROL BEZEL RH (w/o Rear Power Seat System)
for RH Side:
Click here
7. INSTALL FOLD SEAT SWITCH ASSEMBLY (w/ Rear Power Seat System)
for RH Side:
Click here
8. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)
Click here
9. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)
Click here
10. INSTALL ROPE HOOK ASSEMBLY
Click here
11. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
Click here
12. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
Click here
13. INSTALL REAR FLOOR FINISH SIDE PLATE LH
Click here
14. INSTALL REAR SEAT SIDE GARNISH LH
Click here
15. INSTALL UPPER QUARTER TRIM PAD LH
Click here
16. INSTALL REAR SEAT ASSEMBLY LH (for LH Side)
Click here
17. INSTALL REAR SEAT ASSEMBLY RH (for RH Side)
Click here
18. INSTALL REAR DOOR SCUFF PLATE LH
Click here
19. INSTALL REAR FLOOR FINISH PLATE
Click here
20. INSTALL DECK SIDE TRIM BOX RH
Click here
21. INSTALL FRONT DECK FLOOR BOX (for LH Side)
Click here
22. INSTALL REAR NO. 4 FLOOR BOARD
Click here
23. INSTALL REAR DECK FLOOR BOX
Click here
24. INSTALL REAR NO. 3 FLOOR BOARD
Click here
25. INSTALL DECK BOARD ASSEMBLY
Click here
26. INSTALL TONNEAU COVER ASSEMBLY
Click here
Reassembly
