Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Parts Location
PARTS LOCATION

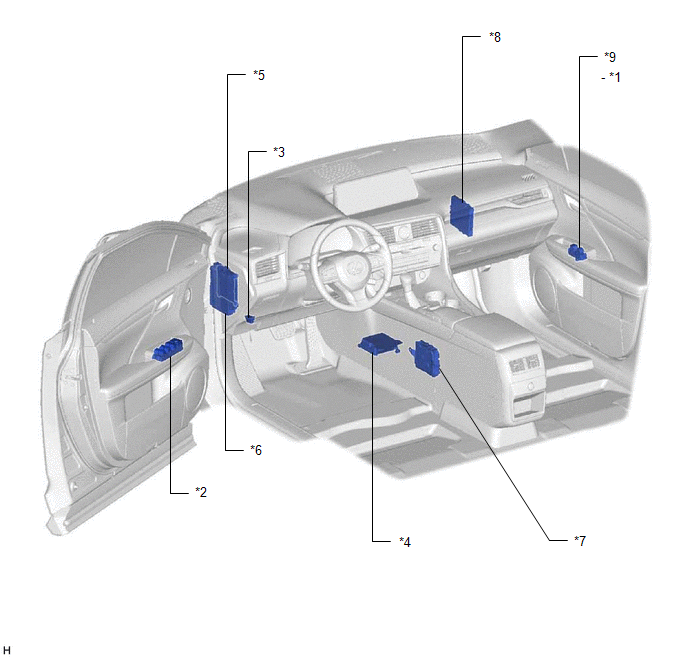

ILLUSTRATION
| *1 | DOOR CONTROL SWITCH | *2 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECC-ACC FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE - D/L FUSE - AM2 FUSE - ALL DR LOCK RELAY - D DR UNLOCK RELAY - L/D DR UNLOCK RELAY |
| *7 | DCM (TELEMATICS TRANSCEIVER) | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | POWER WINDOW REGULATOR SWITCH ASSEMBLY | - | - |

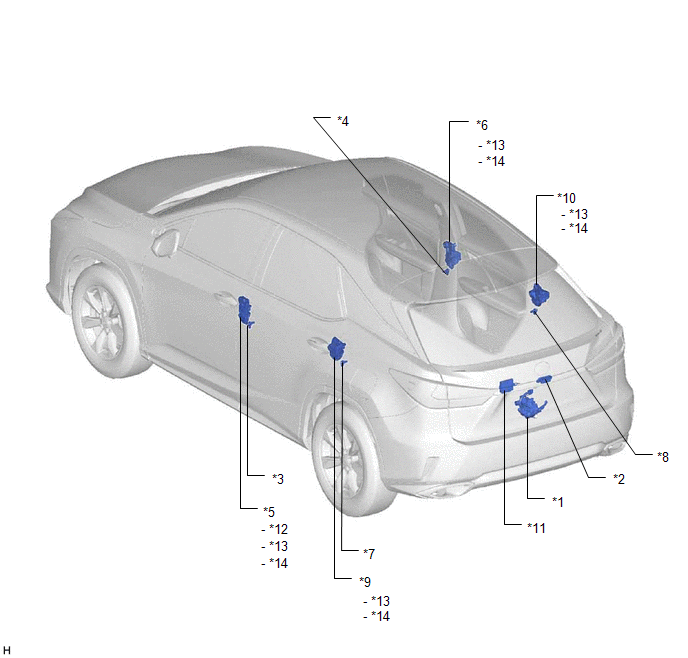

ILLUSTRATION
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | BACK DOOR OPENER SWITCH ASSEMBLY |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *9 | REAR DOOR LOCK ASSEMBLY LH | *10 | REAR DOOR LOCK ASSEMBLY RH |
| *11 | MULTIPLEX NETWORK DOOR ECU | *12 | DOOR KEY LOCK AND UNLOCK SWITCH |
| *13 | DOOR LOCK MOTOR | *14 | DOOR UNLOCK DETECTION SWITCH |
