Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear No. 1 seat inner belt assembly removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane Control System | |
| Pre-collision system | |||
| Intelligent clearance sonar system*1 | |||
| Parking assist monitor system | | ||
| Panoramic view monitor system | | ||
| Lighting system (w/ Automatic Headlight Beam Level Control System) | | ||
| Initialize back door lock | Power door lock control system | | |
| Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) | |
*1: When performing learning using the Techstream.
Click here .gif)
CAUTION:
-
Be sure to read Precaution thoroughly before servicing.
Click here
- Wear protective gloves. Sharp areas on the parts may injure your hands.
.png)
NOTICE:
After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) battery terminal.
PROCEDURE
1. REMOVE REAR NO. 1 SEAT ASSEMBLY RH
Click here
2. REMOVE REAR SEAT COVER CAP RH
Click here
3. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH
Click here
4. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH
Click here
5. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD
Click here
6. REMOVE REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER
Click here
7. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

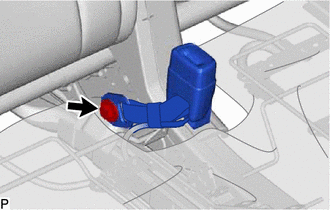

| (a) Disconnect the connector. |
|
(b) Disengage the 2 clamps.
| (c) Loosen the bolt and remove the rear seat 3 point type belt assembly RH. HINT: The bolt cannot be removed from the rear seat 3 point type belt assembly RH. |
|
Components
COMPONENTS ILLUSTRATION *1 NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH *2 REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER *3 REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH *4 REAR SEAT COV ...
Inspection
INSPECTION PROCEDURE 1. INSPECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Conditi ...
