INSPECTION

PROCEDURE

1. INSPECT VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

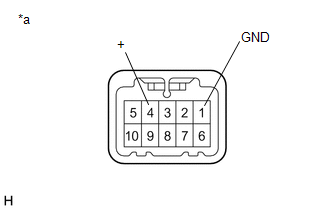

*a

Component without harness connected

(VSC OFF switch (Combination Switch Assembly))

(b) Disconnect the VSC OFF switch (combination switch assembly) connector.

(c) Check both the connector case and the terminal for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

4 (+) - 1 (GND)

Switch pushed

Below 1 Ω

4 (+) - 1 (GND)

Switch not pushed

10 kΩ or higher

If the result is not as specified, replace the VSC OFF switch (combination switch assembly).

    Removal
    REMOVAL PROCEDURE 1. REMOVE REAR CONSOLE UPPER PANEL Click here 2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL Click here 3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Click here 4. R ...

    Installation
    INSTALLATION PROCEDURE 1. INSTALL VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY) (a) Install the VSC OFF switch (combination switch assembly) to the console box ornament with the 3 screws. 2. INSTALL CO ...
