Lexus RX (RX 350L, RX450h) 2016-2022 Owners Manual: Voice command system

The voice command system enables the audio and hands-free systems to be operated using voice commands.

Operations of the voice command system can be performed by selecting the menu corresponding to each function on the right part of the screen. Even if any menu is selected, commands displayed on all menus can be operated.

Using the voice command system

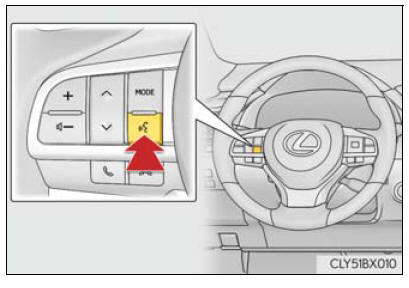

1. Press the talk switch.

To cancel the voice command system, press and hold the talk switch.

2. After a beep sounds, say the desired command.

On the list screen, you can select the desired command.

Lexus RX. Other function

■ Menu screen To display the menu screen, move the controller to the left.

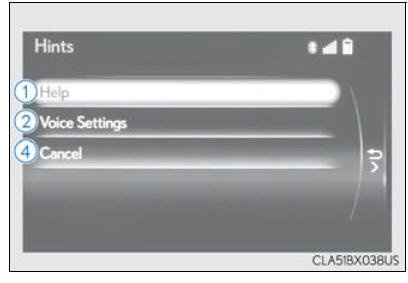

"Hints" screen

Lexus RX. Other function

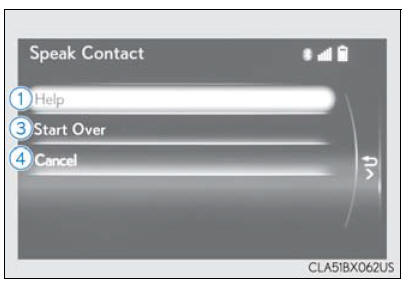

Except "Hints" screen

Lexus RX. Other function

  1. Offer examples of commands and operation methods
  2. Adjust the settings for voice guidance volume and voice recognition prompts. Select to train voice recognition. ("Hints" screen)
  3. Start over voice recognition (except "Hints" screen)
  4. Cancel voice recognition

■ When using the microphone

  • It is unnecessary to speak directly into the microphone when giving a command.
  • Wait for the confirmation beep before speaking a command.
  • Voice commands may not be recognized if:
    • Spoken too quickly.
    • Spoken at a low or high volume.
    • The roof or windows are open.
    • Passengers are talking while voice commands are spoken.
    • The air conditioning speed is set high.
    • The air conditioning vents are turned towards the microphone.
  • In the following conditions, the system may not recognize the command properly and using voice commands may not be possible:
    • The command is incorrect or unclear. Note that certain words, accents or speech patterns may be difficult for the system to recognize.
    • There is excessive background noise, such as wind noise.

■ When searching for a track

  • A USB memory or iPod must be connected to enable track searching and playback.
  • When a USB memory or iPod is connected, recognition data is created so tracks can be searched using voice commands.
  • Recognition data is updated under the following conditions:
    • When the USB memory or iPod data has changed.
    • When the voice recognition language is changed.
  • While the recognition data is being created or being updated, a track search cannot be performed using a voice command.

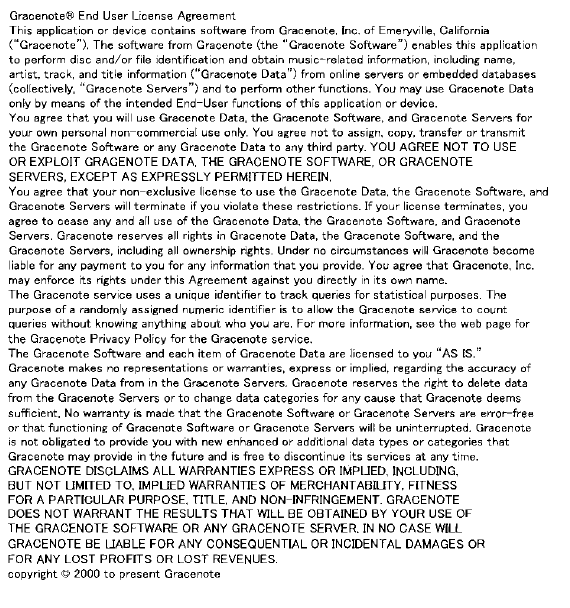

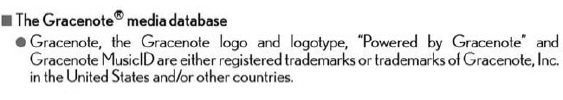

■ The Gracenote media database

Casual speech recognition

Due to natural language speech recognition technology, this system enables recognition of a command when spoken naturally. However, the system cannot recognize every variation of each command.

In some situations, it is possible to omit the command for the procedure and directly state the desired operation.

This function is available in English, Spanish and French.

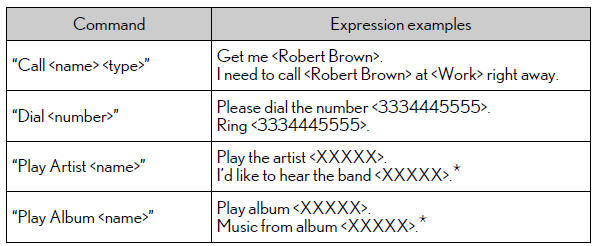

■ Expression examples for each function

Lexus RX. Other function

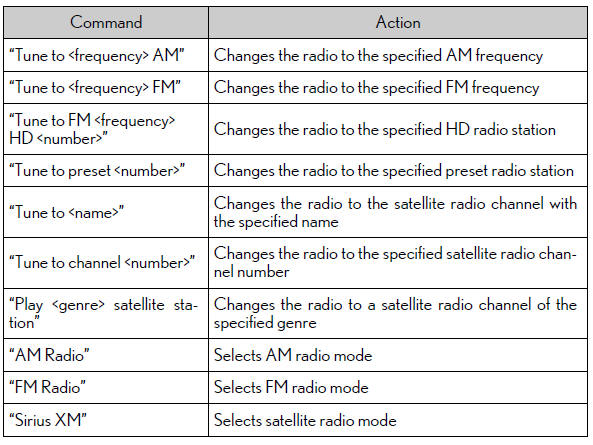

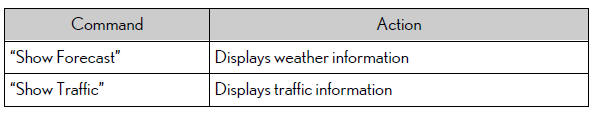

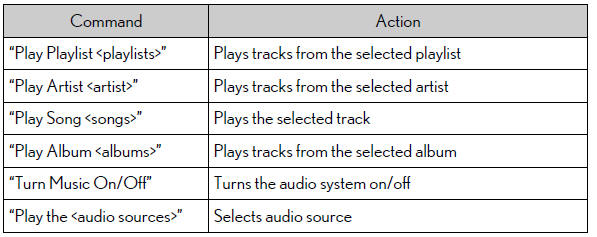

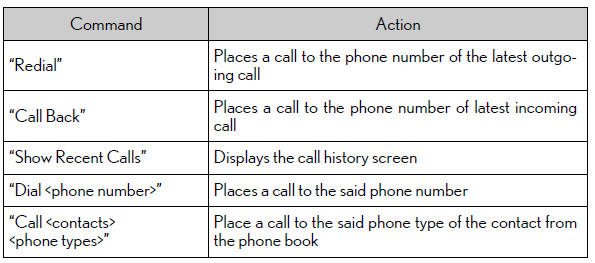

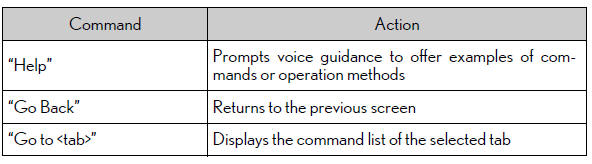

Command list

Some recognizable voice commands and their actions are shown below as examples.


Lexus RX. Other function


Lexus RX. Other function


Lexus RX. Other function


Lexus RX. Other function


Lexus RX. Other function

    USB photo
    Connecting a USB memory device enables you to enjoy photo on the Lexus Display Audio display. USB photo screen Go to "USB Photo": "MENU" button → "Info" → "USB1 Photo" or "USB2 Photo" Menu sc ...
