Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Removal
REMOVAL
PROCEDURE
1. REMOVE REAR CONSOLE UPPER PANEL
Click here .gif)
2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Click here
3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Click here
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Click here
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
Click here
6. REMOVE CONSOLE PANEL SUB-ASSEMBLY
Click here
7. REMOVE CONSOLE BOX ORNAMENT

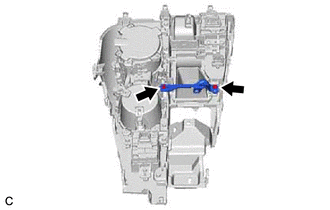

| (a) Remove the 2 screws and console box bracket. |
|
.png)

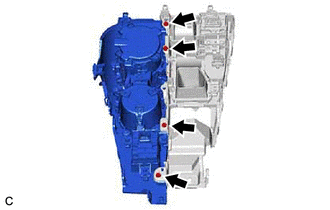

| (b) Remove the 4 screws and console box ornament from the shifting hole frame sub-assembly. |
|
.png)
8. REMOVE COMBINATION SWITCH ASSEMBLY

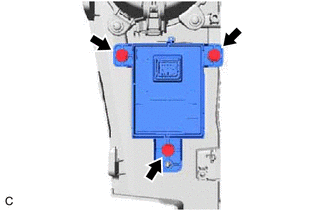

| (a) Remove the 3 screws and combination switch assembly from the console box ornament. |
|
.png)
Installation
INSTALLATION PROCEDURE 1. INSTALL COMBINATION SWITCH ASSEMBLY (a) Install the combination switch assembly to the console box ornament with the 3 screws. 2. INSTALL CONSOLE BOX ORNAMENT (a) Install the ...
