Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY
Click here .gif)
2. REMOVE SHIFT POSITION INDICATOR

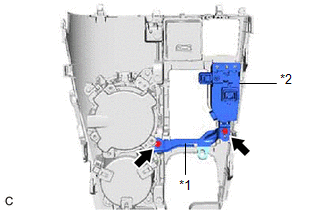

| (a) Remove the 2 screws, console box bracket and shift position indicator from the upper console panel sub-assembly. |
|
.png)
On-vehicle Inspection
