Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Components
COMPONENTS
ILLUSTRATION
.png)
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | INLET AIR CLEANER ASSEMBLY |
| *5 | BATTERY | *6 | COOL AIR INTAKE DUCT SEAL |
| *7 | BATTERY TRAY | *8 | BATTERY CLAMP SUB-ASSEMBLY |
| *9 | BATTERY CLAMP BOLT | *10 | NEGATIVE BATTERY TERMINAL |
| *11 | POSITIVE BATTERY TERMINAL | *12 | BATTERY INSULATOR |
| *13 | NO. 2 VENTILATION HOSE | *14 | NO. 1 FUEL VAPOR FEED HOSE |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |
ILLUSTRATION
.png)

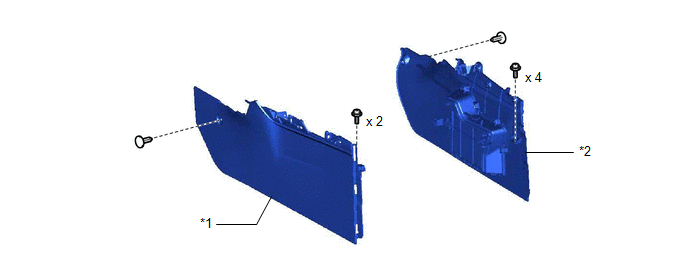

| *1 | FRONT NO. 1 CONSOLE BOX INSERT | *2 | FRONT NO. 2 CONSOLE BOX INSERT |
ILLUSTRATION
.png)
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during tran ...
