REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission control cable assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced| Replacement Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: When performing learning using the Techstream.
Click here | |||
| Battery terminal is disconnected/reconnected | Memorize steering angle neutral point | Lane Control System | |
| Pre-collision System | |||
| Intelligent Clearance Sonar System*1 | |||
| Lighting System (w/ Automatic Headlight Beam Level Control System) | | ||
| Parking Assist Monitor System | | ||
| Panoramic View Monitor System | | ||
| Initialize back door lock | Power Door Lock Control System | | |
| Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) | | |
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Click here
2. SECURE VEHICLE
(a) Fully apply the parking brake and chock a wheel.
CAUTION:
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Click here
4. REMOVE COOL AIR INTAKE DUCT SEAL
Click here
5. REMOVE INLET AIR CLEANER ASSEMBLY
Click here
6. REMOVE BATTERY
Click here
7. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
Click here
8. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Click here
9. REMOVE AIR CLEANER CASE SUB-ASSEMBLY
Click here
10. REMOVE CONSOLE BOX ASSEMBLY
Click here
11. REMOVE FRONT NO. 1 CONSOLE BOX INSERT
Click here
12. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
Click here
13. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
(a) Move the shift lever to N.
| (b) Disconnect the transmission control cable assembly from the transmission floor shift assembly. |
|
| (c) Disengage the 2 claws and disconnect the transmission control cable assembly from the transmission floor shift assembly. |
|
| (d) Remove the nut and disconnect the transmission control cable assembly from the transmission control shaft lever. |
|
(e) Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with clip from the No. 1 transmission control cable bracket.
| (f) Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly. |
|
| (g) Disengage the 2 clamps. |
|
| (h) Turn back the floor carpet. |
|

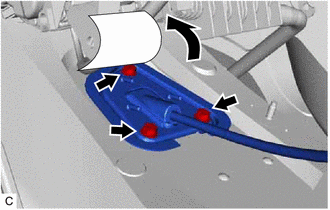

(i) Remove the 3 bolts and transmission control cable assembly from the cabin.
