Lexus RX (RX 350L, RX450h) 2016-2023 Owners Manual: Customization

Customizable features

Your vehicle includes a variety of electronic features that can be personalized to suit your preferences. The settings of these features can be changed using the multi-information display, on the audio system screen, or at your Lexus dealer.

Customizing vehicle features

When customizing vehicle features, ensure that the vehicle is parked in a safe place with the shift lever in P and the parking brake set.

■ Changing on the audio system screen

Vehicles with a Lexus Display Audio system

  1. Press the "MENU" button on the Lexus Display Audio controller.
  2. Select "Setup" on the "Menu" screen and select "Vehicle".

Various setting can be changed. Refer to the list of settings that can be changed for details.

Vehicles with a navigation system

  1. Press the "MENU" button on the Remote Touch.
  2. Select on the "Menu" screen and select .

Various setting can be changed. Refer to the list of settings that can be changed for details.

Customizable Features

Some function settings are changed simultaneously with other functions being customized. Contact your Lexus dealer for further details.

  1. Settings that can be changed on the audio system screen
  2. Settings that can be changed by your Lexus dealer

Definition of symbols: O = Available, - =Not available

■ Vehicle proximity notification system

Lexus RX. Customization

■ Gauges, meters and multi-information display

Lexus RX. Customization

*1: The default setting varies according to countries.
*2: Except F SPORT models

■ Door lock

Lexus RX. Customization

■ Power back door

Lexus RX. Customization

*: If equipped

■ Smart access system with push-button start and wireless remote control

Lexus RX. Customization

■ Smart access system with push-button start

Lexus RX. Customization

■ Wireless remote control

Lexus RX. Customization

*1: This setting enables opening of the power back door when it is locked or unlocked.
*2: This function is available only when a customized setting that enables opening of the power back door when it is either locked or unlocked is selected. (See *1 above.)

■ Driving position memory

Lexus RX. Customization

■ Steering wheel

Lexus RX. Customization

■ Outside rear view mirrors

Lexus RX. Customization

■ Power windows, and moon roof * or panoramic moon roof*

Lexus RX. Customization

*: If equipped

■ Moon roof*

Lexus RX. Customization

*: If equipped

■ Turn signal lever

Lexus RX. Customization

■ Automatic light control system

Lexus RX. Customization

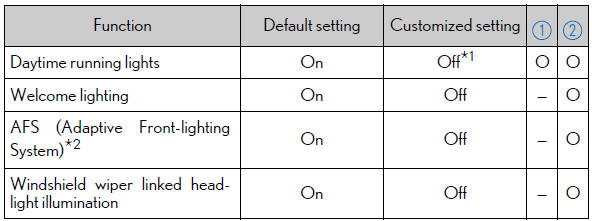

■ Lights

Lexus RX. Customization

*1: Except for Canada
*2: If equipped

■ Rain-sensing windshield wipers

Lexus RX. Customization

■ Intuitive parking assist

Lexus RX. Customization

*: When intuitive parking assist is operating.

■ BSM (Blind Spot Monitor)

Lexus RX. Customization

■ Driving mode select switch

Lexus RX. Customization

*: If equipped

■ Front automatic air conditioning system

Lexus RX. Customization

■ Seat heaters/seat ventilators

Lexus RX. Customization

■ Illumination

Lexus RX. Customization

*: If equipped

■ Seat belt reminder

Lexus RX. Customization

■ Vehicle customization

  • When the smart access system with push-button start is off, the entry unlock function cannot be customized.
  • When the doors remain closed after unlocking the doors and the timer activated automatic door lock function activates, signals will be generated in accordance with the operation buzzer volume and operational signal (Emergency flashers) function settings.
  • Some settings can be changed using a switch or the audio system screen. If a setting is changed using a switch, the changed setting will not be reflected on the audio system screen until the power switch is turned off and then to ON mode.

WARNING

■ Cautions during customization As the hybrid system needs to be operating during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.

NOTICE

■ During customization To prevent 12-volt battery discharge, ensure that the hybrid system is operating while customizing features.

Initialization

Items to initialize

The following items must be initialized for normal system operation after such cases as the 12-volt battery being reconnected, or maintenance being performed on the vehicle.

Item When to initialize
Message indicating maintenance is required (U.S.A. only)
  • After the maintenance is performed
Tire pressure warning system
  • When changing the tire inflation pressure by changing traveling speed
  • When changing the tire size
  • When rotating the tires
Oil maintenance
  • After the maintenance is performed
Intelligent Clearance Sonar (ICS)
  • After reconnecting or changing the 12-volt battery
Power back door
  • After reconnecting or changing the 12-volt battery
