Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components
COMPONENTS

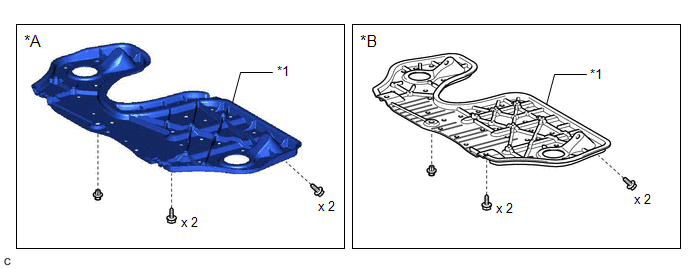

ILLUSTRATION
| *A | for TMC Made | *B | for TMMC Made |
| *1 | NO. 2 ENGINE UNDER COVER | - | - |

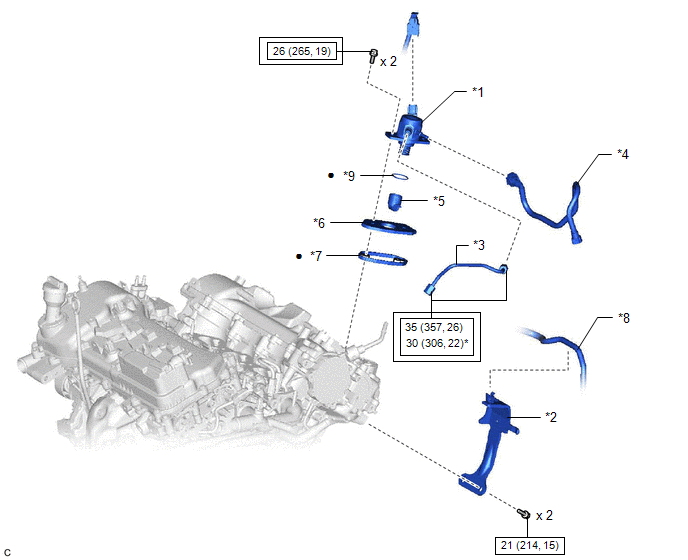

ILLUSTRATION
| *1 | FUEL PUMP ASSEMBLY | *2 | FUEL PUMP PROTECTOR |
| *3 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *4 | NO. 2 FUEL TUBE SUB-ASSEMBLY |
| *5 | FUEL PUMP LIFTER ASSEMBLY | *6 | FUEL PUMP LIFTER GUIDE |
| *7 | FUEL PUMP SPACER GASKET | *8 | FUEL TUBE SUB-ASSEMBLY |
| *9 | O-RING | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with a union nut wrench | ● | Non-reusable part |
On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. FUEL PUMP ASSEMBLY OPERATION (a) Check fuel pressure. (1) Connect the Techstream to the DLC3. (2) Start the engine. (3) Turn the Techstream on. (4) Enter the followi ...
