Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Removal
REMOVAL
PROCEDURE
1. REMOVE DECK BOARD ASSEMBLY
Click here .gif)
2. REMOVE REAR DECK FLOOR BOX
Click here
3. REMOVE REAR NO. 4 FLOOR BOARD
Click here
4. REMOVE FRONT DECK FLOOR BOX
Click here
5. REMOVE FUEL PUMP CONTROL ECU ASSEMBLY

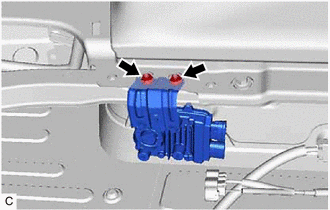

| (a) Disconnect the 2 fuel pump control ECU assembly connectors. |
|
| (b) Remove the clip. |
|
| (c) Remove the 2 nuts. |
|
(d) Turn back the deck trim side panel assembly LH and remove the fuel pump control ECU assembly from the vehicle body.
NOTICE:
Do not reuse the fuel pump control ECU assembly if it has been dropped or subjected to a severe impact.
.png) | Turn back |
Installation
INSTALLATION PROCEDURE 1. INSTALL FUEL PUMP CONTROL ECU ASSEMBLY (a) Install the fuel pump control ECU assembly to the vehicle body and return the deck trim side panel assembly LH to its original posi ...
