DTC COMBINATION TABLE
HOW TO INTERPRET COMMUNICATION DTCS (DTCS THAT START WITH U)
(a) If a CAN communication error cannot be reproduced, determine the suspected malfunctioning part using the DTCs stored in ECUs that are connected to the CAN buses by following the procedure below.
HINT:
Communication DTCs (DTCs that start with U) indicate a communication error between the ECU that stores the DTC and the ECU that is indicated by the DTC.
(1) If multiple ECUs store a communication DTC for a particular ECU, a communication stop of the ECU is suspected.
| *a | Items to be Checked | - | - |
NOTICE:
- This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
-
Even though a DTC title may indicate a communication error with a specific ECU, the ECU name used in the DTC name on the Techstream may differ depending on the ECU that stores the DTC. (Regarding output DTCs, refer to the DTC Table by ECU.)
Click here
.gif)
HINT:
As multiple ECUs indicate a communication stop with the main body ECU, the possibility of a communication stop of the main body ECU is high.
(2) If almost all of the communication DTCs of an ECU are stored, a communication stop of the ECU is suspected.
| *a | Items to be Checked | - | - |
NOTICE:
This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
HINT:
If almost all of the DTCs of the main body ECU are stored, the possibility of a communication stop of the main body ECU is high.
(3) When a CAN communication error occurs, many DTCs are output. DTCs other than communication error DTCs (such as DTCs that start with C or B) and communication DTCs for the ABS system are important DTCs, however it may be easier to determine the malfunctioning part by examining the overall situation without considering these DTCs.

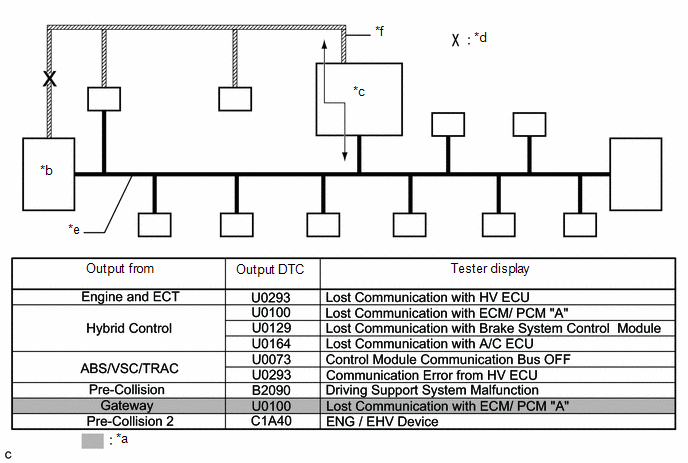

(b) To help determine the part of the non-bus 2 that has a communication error, prioritize the communication stop DTCs stored in the gateway function equipped ECU.
| *a | Items to be Checked | *b | ECM |
| *c | Gateway Function Equipped ECU | *d | Location of Malfunction |
| *e | Bus 2 | *f | Non-bus 2 |
NOTICE:
This DTC table is from another model, and is only used here to show the ECUs connected to both a bus 2 and a non-bus 2. It shows DTCs output when there is an open in the main bus lines for the ECM on the non-bus 2. This table does not show DTCs applicable to this vehicle.
HINT:
- As gateway function equipped ECUs (non-bus 2 monitor ECU) monitor signals from all ECUs that are connected to non-bus 2, gateway function equipped ECUs can detect ECUs with a communication stop more accurately.
- When there is a communication stop for the gateway function equipped ECU (gateway), communication with ECUs connected to other buses such as the bus 2 stops. Therefore, communication DTCs for ECUs connected to other buses are also stored.
(c) When any of the following malfunctions occurs, many DTCs are likely to be output from many ECUs. Because of this, it may be difficult to determine the probable malfunctioning part.
- Short between CAN lines (CANH and CANL)
- Short between a CAN line (CANH or CANL) and ground
- Short between a CAN line (CANH or CANL) and +B
- Open in a CAN branch line (CANH or CANL) of an ECU or sensor
- Open in a CAN main bus line (CANH or CANL) between 2 ECUs that have a terminating resistor
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 1, PAST COMMUNICATION ERROR)
(a) Regarding a past communication error of an ECU and sensor connected to the bus 1 (in this case, normal is displayed when performing the CAN bus check, but communication DTCs are output), the probable CAN bus line(s) that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- Regarding an open in a CAN bus line(s) and a communication stop that is currently occurring, the malfunctioning part can be confirmed easily by performing the CAN bus check using the Techstream because the ECU or sensor connected to the CAN bus line(s) does not respond (the ECU or sensor name will not be displayed on the screen).
-
If an open in a CAN main bus line, a short between the CAN bus lines (CANH and CANL) or a short to ground or +B in the CAN bus occurs, DTCs of almost all ECUs (or sensors) on the CAN bus may be output, or a message indicating a communication error may be displayed on the Techstream screen. In this case, check the resistance of the CAN bus (steps 10 to 24) first.
Click here
- If an open occurs in just one of the lines of a CAN bus line(s), DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
| - | Trouble Mode (Open in CAN branch line(s)) | ||||
|---|---|---|---|---|---|
| Bus 1 | |||||
| Output ECU | Output DTC | Clearance Warning ECU Communication Stop Mode | Front Camera Module Communication Stop Mode | Millimeter Wave Radar Sensor Communication Stop Mode | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Bus 1 | Forward Recognition Camera | U010087 | - | ○ | - |
| U012587 | - | ○ | - | ||
| U012687 | - | ○ | - | ||
| U012987 | - | ○ | - | ||
| U013187 | - | ○ | - | ||
| U014087 | - | ○ | - | ||
| U015587 | - | ○ | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | ○ | - | - | |
| U0124 | ○ | - | - | ||
| U0126 | ○ | - | - | ||
| U0129 | ○ | - | - | ||
| U0140 | ○ | - | - | ||
| U0151 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| U0164 | ○ | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | ○ | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | ○ | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | ○ | - | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | ○ | - | - | ||
| Bus 3 | DCM (Telematics Transceiver) | U014087 | - | - | - |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | ○ | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | - | ○ | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | ○ | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | ○ | - | ||
| U0265 | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Sub Bus 1 | Multiplex Tilt and Telescopic ECU | U0142 | - | - | - |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN branch line(s)) | ||||
|---|---|---|---|---|---|
| Bus 1 | |||||
| Output ECU | Output DTC | Parking Assist ECU Communication Stop Mode | Blind Spot Monitor Sensor Communication Stop Mode | Rear Television Camera Communication Stop Mode | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| Bus 1 | Parking Assist ECU*1*2 | U0100 | ○ | - | - |
| U0126 | ○ | - | - | ||
| U0129 | ○ | - | - | ||
| U0140 | ○ | - | - | ||
| U0163 | ○ | - | - | ||
| U0233 | ○ | ○ | - | ||
| U0265 | ○ | - | ○ | ||
| U1110 | ○ | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | ○ | - | |
| U0125 | - | ○ | - | ||
| U0126 | - | ○ | - | ||
| U0129 | - | ○ | - | ||
| U0142 | - | ○ | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | ○ | |
| U0126 | - | - | ○ | ||
| U0129 | - | - | ○ | ||
| U0140 | - | - | ○ | ||
| U0163 | - | - | ○ | ||
| U0233 | - | ○ | ○ | ||
| U1110 | - | - | ○ | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | ○ | - | - | ||
| U0265 | - | - | ○ | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Bus 4 | Tire Pressure Warning ECU and Receiver | U0129 | - | - | - |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Bus 5 | Combination Meter Assembly | U0100 | - | - | - |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| U0265 | - | - | ○ | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | - | - | ○ | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN main bus line(s)) | ||||
|---|---|---|---|---|---|
| Bus 1 | |||||
| Output ECU | Output DTC | Network Gateway ECU (CA1H and CA1L Terminal) | No. 3 CAN J/C to No. 10 CAN J/C | Network Gateway ECU (CAYH and CAYL Terminal) | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Forward Recognition Camera | U010087 | ○ | - | - | |
| U012587 | ○ | - | - | ||
| U012687 | ○ | - | - | ||
| U012987 | ○ | - | - | ||
| U013187 | ○ | - | - | ||
| U014087 | ○ | - | - | ||
| U015587 | ○ | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | ○ | - | - | |
| U0124 | ○ | - | - | ||
| U0126 | ○ | - | - | ||
| U0129 | ○ | - | - | ||
| U0140 | ○ | - | - | ||
| U0151 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| U0164 | ○ | - | - | ||
| Parking Assist ECU*1*2 | U0100 | ○ | - | - | |
| U0126 | ○ | - | - | ||
| U0129 | ○ | - | - | ||
| U0140 | ○ | - | - | ||
| U0163 | ○ | - | - | ||
| U0233 | - | ○ | - | ||
| U0265 | - | ○ | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | ○ | ○ | - | |
| U0125 | ○ | ○ | - | ||
| U0126 | ○ | ○ | - | ||
| U0129 | ○ | ○ | - | ||
| U0142 | ○ | ○ | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Bus 1 | Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | ○ | ○ | - |
| U0126 | ○ | ○ | - | ||
| U0129 | ○ | ○ | - | ||
| U0140 | ○ | ○ | - | ||
| U0163 | ○ | ○ | - | ||
| U0233 | - | - | - | ||
| U1110 | - | ○ | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | ○ | - | - | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | ○ | - | - | ||
| U0265 | ○ | ○ | - | ||
| U1110 | ○ | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | ○ | - | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | ○ | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | ○ | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | ○ | - | - | ||
| U0265 | ○ | ○ | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | ○ | ○ | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (CAN bus lines short circuit or short to GND) | ||||
|---|---|---|---|---|---|
| Bus 1 | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Bus 1 | Forward Recognition Camera | U010087 | ○ | ○ | ○ |
| U012587 | ○ | ○ | ○ | ||
| U012687 | ○ | ○ | ○ | ||
| U012987 | ○ | ○ | ○ | ||
| U013187 | ○ | ○ | ○ | ||
| U014087 | ○ | ○ | ○ | ||
| U015587 | ○ | ○ | ○ | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | ○ | ○ | ○ | |
| U0124 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | ○ | ○ | ○ | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| Parking Assist ECU*1*2 | U0100 | ○ | ○ | ○ | |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| U0233 | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| U1110 | ○ | ○ | ○ | ||
| Blind Spot Monitor Sensor LH | U0100 | ○ | ○ | ○ | |
| U0125 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | ○ | ○ | ○ | |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| U0233 | ○ | ○ | ○ | ||
| U1110 | ○ | ○ | ○ | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | ○ | ○ | ○ | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| U1110 | ○ | ○ | ○ | ||
| Bus 3 | DCM (Telematics Transceiver) | U014087 | - | - | - |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | ○ | ○ | ○ | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | ○ | ○ | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | ○ | ○ | ○ | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | ○ | ○ | ○ | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Sub Bus 1 | Multiplex Tilt and Telescopic ECU | U0142 | - | - | - |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 2, PAST COMMUNICATION ERROR)
(a) Regarding a past communication error of an ECU and sensor connected to the bus 2 (in this case, normal is displayed when performing the CAN bus check, but communication DTCs are output), the probable CAN bus line(s) that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- Regarding an open in a CAN bus line(s) and a communication stop that is currently occurring, the malfunctioning part can be confirmed easily by performing the CAN bus check using the Techstream because the ECU or sensor connected to the CAN bus line(s) does not respond (the ECU or sensor name will not be displayed on the screen).
-
If an open in a CAN main bus line, a short between the CAN bus lines (CANH and CANL) or a short to ground or +B in the CAN bus occurs, DTCs of almost all ECUs (or sensors) on the CAN bus may be output, or a message indicating a communication error may be displayed on the Techstream screen. In this case, check the resistance of the CAN bus (steps 9 to 23) first.
Click here
- If an open occurs in just one of the lines of a CAN bus line(s), DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
| - | Trouble Mode (Open in CAN main bus line(s)) | Trouble Mode (CAN bus lines short circuit or short to GND) | ||||
|---|---|---|---|---|---|---|
| Bus 2 | Bus 2 | |||||
| Output ECU | Output DTC | ECM Communication Stop Mode | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - | - |
| Forward Recognition Camera | U010087 | ○ | ○ | ○ | ○ | |
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | ○ | ○ | ○ | ○ | |
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | ○ | ○ | ○ | ○ | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | ○ | ○ | ○ | ○ | |
| U0125 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | - | |
| Bus 1 | Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | ○ | ○ | ○ | ○ |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - | - |
| ECM | U010487 | ○ | ○ | ○ | ○ | |
| U012287 | ○ | ○ | ○ | ○ | ||
| U115587 | ○ | ○ | ○ | ○ | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | ○ | ○ | ○ | ○ | |
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0198 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | - | |
| U015587 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | ○ | ○ | ○ | ○ | |
| U010187 | ○ | ○ | ○ | ○ | ||
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U015187 | - | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | ○ | ○ | ○ | ○ | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | - | |
| Absorber Control ECU | U0100 | ○ | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ○ | ||
| U0122 | - | - | - | - | ||
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| Power Steering ECU Assembly | U0100 | ○ | ○ | ○ | ○ | |
| U0129 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Steering Sensor | - | - | - | - | - | |
| Bus 4 | Yaw Rate Sensor Assembly | - | - | - | - | - |
| Airbag Sensor Assembly | U0154 | - | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | ○ | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ○ | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | ○ | ○ | ○ | ○ | |
| U0131 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | ○ | ○ | ○ | ○ | |
| U0142 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | ○ | ○ | ○ | ○ | |
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | ○ | ○ | ○ | ○ | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | ○ | ○ | ○ | ○ | |
| Combination Meter Assembly | U0100 | ○ | ○ | ○ | ○ | |
| U0129 | - | - | - | - | ||
| U0131 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Bus 5 | Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | ○ | ○ | ○ | ○ |
| U0101 | ○ | ○ | ○ | ○ | ||
| U0120 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1106 | - | - | - | - | ||
| U1126 | - | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - | - |
| U0200 | - | - | - | - | ||
| U0208 | - | - | - | - | ||
| U0230 | - | - | - | - | ||
| U1002 | - | - | - | - | ||
| U1115 | - | - | - | - | ||
| Multiplex Network Door ECU | U0101 | ○ | ○ | ○ | ○ | |
| U0122 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | - | |
| U0208 | - | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 3, PAST COMMUNICATION ERROR)
(a) Regarding a past communication error of an ECU and sensor connected to the bus 3 (in this case, normal is displayed when performing the CAN bus check, but communication DTCs are output), the probable CAN bus line(s) that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- Regarding an open in a CAN bus line(s) and a communication stop that is currently occurring, the malfunctioning part can be confirmed easily by performing the CAN bus check using the Techstream because the ECU or sensor connected to the CAN bus line(s) does not respond (the ECU or sensor name will not be displayed on the screen).
-
If an open in a CAN main bus line, a short between the CAN bus lines (CANH and CANL) or a short to ground or +B in the CAN bus occurs, DTCs of almost all ECUs (or sensors) on the CAN bus may be output, or a message indicating a communication error may be displayed on the Techstream screen. In this case, check the resistance of the CAN bus (steps 9 to 23) first.
Click here
- If an open occurs in just one of the lines of a CAN bus line(s), DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
| - | Trouble Mode (Open in CAN branch line(s)) | Trouble Mode (Open in CAN main bus line(s)) | ||||
|---|---|---|---|---|---|---|
| Bus 3 | Bus 3 | |||||
| Output ECU | Output DTC | Radio Receiver Assembly Communication Stop Mode | DCM Communication Stop Mode | Network Gateway ECU (CA3H and CA3L Terminal) | Network Gateway ECU (CAYH and CAYL Terminal) | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | - | |
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | - | |
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | ○ | - | ○ | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | - | |
| U0125 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | ○ | - | ○ | - | ||
| U0233 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - | - |
| ECM | U010487 | - | - | - | - | |
| U012287 | - | - | - | - | ||
| U115587 | - | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - | - |
| Bus 3 | Radio Receiver Assembly*1 | U0100 | ○ | - | ○ | - |
| U0129 | ○ | - | ○ | - | ||
| U0140 | ○ | - | ○ | - | ||
| U0155 | ○ | - | ○ | - | ||
| U0164 | ○ | - | ○ | - | ||
| U0198 | ○ | ○ | - | - | ||
| U023B | ○ | - | ○ | - | ||
| U0265 | ○ | - | ○ | - | ||
| U1110 | ○ | - | ○ | - | ||
| DCM (Telematics Transceiver) | U014087 | - | ○ | ○ | - | |
| U015587 | - | ○ | ○ | - | ||
| U016387 | ○ | ○ | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | - | |
| U010187 | - | - | - | - | ||
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U015187 | - | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0122 | - | - | - | - | ||
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Steering Sensor | - | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Bus 5 | Air Conditioning Amplifier Assembly | U0100 | - | - | - | - |
| U0131 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0163 | ○ | - | ○ | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0163 | ○ | - | ○ | - | ||
| U023A | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| U0131 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0163 | ○ | - | ○ | - | ||
| U0182 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0120 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1106 | - | - | - | - | ||
| U1126 | - | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - | - |
| U0200 | - | - | - | - | ||
| U0208 | - | - | - | - | ||
| U0230 | - | - | - | - | ||
| U1002 | - | - | - | - | ||
| U1115 | - | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | - | |
| U0122 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | - | |
| U0208 | - | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (CAN bus lines short circuit or short to GND) | ||||
|---|---|---|---|---|---|
| Bus 3 | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Bus 1 | Forward Recognition Camera | U010087 | - | - | - |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | ○ | ○ | ○ | |
| U0129 | ○ | ○ | ○ | ||
| U0140 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| U0198 | ○ | ○ | ○ | ||
| U023B | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| U1110 | ○ | ○ | ○ | ||
| Bus 3 | DCM (Telematics Transceiver) | U014087 | ○ | ○ | ○ |
| U015587 | ○ | ○ | ○ | ||
| U016387 | ○ | ○ | ○ | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| U023A | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0163 | ○ | ○ | ○ | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| U0265 | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Sub Bus 1 | Multiplex Tilt and Telescopic ECU | U0142 | - | - | - |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 4, PAST COMMUNICATION ERROR)
(a) Regarding a past communication error of an ECU and sensor connected to the bus 4 (in this case, normal is displayed when performing the CAN bus check, but communication DTCs are output), the probable CAN bus line(s) that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- Regarding an open in a CAN bus line(s) and a communication stop that is currently occurring, the malfunctioning part can be confirmed easily by performing the CAN bus check using the Techstream because the ECU or sensor connected to the CAN bus line(s) does not respond (the ECU or sensor name will not be displayed on the screen).
-
If an open in a CAN main bus line, a short between the CAN bus lines (CANH and CANL) or a short to ground or +B in the CAN bus occurs, DTCs of almost all ECUs (or sensors) on the CAN bus may be output, or a message indicating a communication error may be displayed on the Techstream screen. In this case, check the resistance of the CAN bus (steps 9 to 23) first.
Click here
- If an open occurs in just one of the lines of a CAN bus line(s), DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
| - | Trouble Mode (Open in CAN branch line(s)) | |||||
|---|---|---|---|---|---|---|
| Bus 4 | ||||||
| Output ECU | Output DTC | Brake Actuator (Skid Control ECU) Communication Stop Mode | 4WD Control ECU Communication Stop Mode | Restraints Occupant Classification System Module Communication Stop Mode | Suspension Control ECU Communication Stop Mode | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | - | |
| U012587 | - | - | - | - | ||
| U012687 | - | - | - | - | ||
| U012987 | ○ | - | - | - | ||
| U013187 | - | - | - | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | - | |
| U0124 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | ○ | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | - | |
| U0126 | - | - | - | - | ||
| U0129 | ○ | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | - | |
| U0125 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | ○ | - | - | - | ||
| U0142 | - | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | - | |
| Bus 1 | Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | - |
| U0126 | - | - | - | - | ||
| U0129 | ○ | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - | - |
| ECM | U010487 | - | - | - | - | |
| U012287 | ○ | - | - | - | ||
| U115587 | - | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | - | |
| U0129 | ○ | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0198 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | - | |
| U015587 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | ○ | - | - | - | |
| U010187 | ○ | - | - | - | ||
| U012587 | ○ | - | - | - | ||
| U012687 | ○ | - | - | - | ||
| U015187 | ○ | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | ○ | - | - | |
| U0126 | - | ○ | - | - | ||
| U0129 | ○ | ○ | - | - | ||
| Occupant Detection ECU | U0125 | - | - | ○ | - | |
| U0129 | ○ | - | ○ | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | ○ | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | ○ | |
| U0101 | - | - | - | ○ | ||
| U0122 | ○ | - | - | ○ | ||
| U0124 | - | - | - | ○ | ||
| U0126 | - | - | - | ○ | ||
| Power Steering ECU Assembly | U0100 | - | - | - | - | |
| U0129 | ○ | - | - | - | ||
| U023A | - | - | - | - | ||
| Steering Sensor | - | - | - | - | - | |
| Bus 4 | Yaw Rate Sensor Assembly | - | - | - | - | - |
| Airbag Sensor Assembly | U0154 | - | - | ○ | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0126 | - | - | - | - | ||
| U0129 | ○ | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | - | |
| U0131 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | - | |
| U0129 | ○ | - | - | - | ||
| U0131 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Bus 5 | Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | - |
| U0101 | - | - | - | - | ||
| U0120 | - | - | - | - | ||
| U0129 | ○ | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1106 | - | - | - | - | ||
| U1126 | - | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - | - |
| U0200 | - | - | - | - | ||
| U0208 | - | - | - | - | ||
| U0230 | - | - | - | - | ||
| U1002 | - | - | - | - | ||
| U1115 | - | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | - | |
| U0122 | ○ | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | - | |
| U0208 | - | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN branch line(s)) | |||||
|---|---|---|---|---|---|---|
| Bus 4 | ||||||
| Output ECU | Output DTC | Tire Pressure Monitor ECU Communication Stop Mode | Power Steering ECU Communication Stop Mode | Steering Angle Sensor Communication Stop Mode | Yaw Rate Sensor Communication Stop Mode | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | - | |
| U012587 | - | - | - | ○ | ||
| U012687 | - | - | ○ | - | ||
| U012987 | - | - | - | - | ||
| U013187 | - | ○ | - | - | ||
| U014087 | - | - | - | - | ||
| U015587 | - | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | - | |
| U0124 | - | - | - | ○ | ||
| U0126 | - | - | ○ | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | - | |
| U0126 | - | - | ○ | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | - | |
| U0125 | - | - | - | ○ | ||
| U0126 | - | - | ○ | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| Bus 1 | Millimeter Wave Radar Sensor Assembly | - | - | - | - | - |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | - | |
| U0126 | - | - | ○ | - | ||
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0233 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - | - |
| ECM | U010487 | - | - | - | - | |
| U012287 | - | - | - | - | ||
| U115587 | - | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | - | |
| U0129 | - | - | - | - | ||
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0198 | - | - | - | - | ||
| U023B | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U1110 | - | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | - | |
| U015587 | - | - | - | - | ||
| U016387 | - | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | - | |
| U010187 | - | - | - | - | ||
| U012587 | - | - | - | ○ | ||
| U012687 | - | - | ○ | - | ||
| U015187 | - | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | - | |
| U0126 | - | - | ○ | - | ||
| U0129 | - | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | ○ | |
| U0129 | - | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | ○ | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0122 | - | - | - | - | ||
| U0124 | - | - | - | ○ | ||
| U0126 | - | - | ○ | - | ||
| Bus 4 | Power Steering ECU Assembly | U0100 | - | ○ | - | - |
| U0129 | - | ○ | - | - | ||
| U023A | - | ○ | - | - | ||
| Steering Sensor | - | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0126 | - | - | ○ | - | ||
| U0129 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | - | |
| U0131 | - | ○ | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | - | |
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | - | |
| U0140 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | - | |
| Bus 5 | Combination Meter Assembly | U0100 | - | - | - | - |
| U0129 | - | - | - | - | ||
| U0131 | - | ○ | - | - | ||
| U0142 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0163 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | - | |
| U0101 | - | - | - | - | ||
| U0120 | - | - | - | - | ||
| U0129 | - | - | - | - | ||
| U0151 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0164 | - | - | - | - | ||
| U0182 | - | - | - | - | ||
| U023A | - | - | - | - | ||
| U0265 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| U1106 | - | - | - | - | ||
| U1126 | - | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - | - |
| U0200 | - | - | - | - | ||
| U0208 | - | - | - | - | ||
| U0230 | - | - | - | - | ||
| U1002 | - | - | - | - | ||
| U1115 | - | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | - | |
| U0122 | - | - | - | - | ||
| U0142 | - | - | - | - | ||
| U0155 | - | - | - | - | ||
| U0327 | - | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | - | |
| U0208 | - | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN main bus line(s)) | ||||
|---|---|---|---|---|---|
| Bus 4 | |||||
| Output ECU | Output DTC | Network Gateway ECU (CA2H and CA2L Terminal) | No. 1 CAN J/C to No. 8 CAN J/C | No. 8 CAN J/C to No. 9 CAN J/C | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | ○ | ○ | ○ | ||
| U012687 | ○ | ○ | ○ | ||
| U012987 | ○ | - | - | ||
| U013187 | ○ | ○ | ○ | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | - | - | ||
| U0140 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | - | - | ||
| U0142 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Bus 1 | Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | ○ | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | ○ | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | ○ | - | - | |
| U010187 | ○ | - | - | ||
| U012587 | - | ○ | ○ | ||
| U012687 | - | ○ | ○ | ||
| U015187 | - | ○ | ○ | ||
| 4WD ECU Assembly*1 | U0100 | ○ | ○ | - | |
| U0126 | - | - | ○ | ||
| U0129 | ○ | - | - | ||
| Occupant Detection ECU | U0125 | - | - | ○ | |
| U0129 | ○ | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | ○ | ○ | |
| Absorber Control ECU | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0122 | - | ○ | ○ | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | ○ | ○ | ○ | |
| U0129 | - | ○ | ○ | ||
| U023A | ○ | ○ | ○ | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | ○ | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | ○ | - | - | ||
| U0131 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | ○ | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| U0265 | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | ○ | - | - | ||
| U1126 | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | |
| U0122 | ○ | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN main bus line(s)) | ||||
|---|---|---|---|---|---|
| Bus 4 | |||||
| Output ECU | Output DTC | No. 9 CAN J/C to No. 12 CAN J/C | No. 12 CAN J/C to No. 7 CAN J/C | Airbag Sensor Assembly | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Bus 1 | Forward Recognition Camera | U010087 | - | - | - |
| U012587 | ○ | ○ | - | ||
| U012687 | ○ | ○ | - | ||
| U012987 | - | - | - | ||
| U013187 | ○ | ○ | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | ○ | ○ | - | ||
| U0126 | ○ | ○ | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | ○ | ○ | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | ○ | ○ | - | ||
| U0126 | ○ | ○ | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | |
| U0126 | ○ | ○ | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 3 | DCM (Telematics Transceiver) | U014087 | - | - | - |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | ○ | ○ | -*5 ○*6 | ||
| U012687 | ○ | ○ | - | ||
| U015187 | ○ | ○ | ○ | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | ○ | ○ | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | ○ | ○ | -*5 ○*6 | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | ○ | - | - | |
| Absorber Control ECU | U0100 | ○ | - | - | |
| U0101 | ○ | - | - | ||
| U0122 | ○ | - | - | ||
| U0124 | - | ○ | -*5 ○*6 | ||
| U0126 | - | ○ | - | ||
| Power Steering ECU Assembly | U0100 | ○ | ○ | - | |
| U0129 | ○ | ○ | - | ||
| U023A | ○ | ○ | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | ○ | ○ | ○ | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | ○ | ○ | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | ○ | ○ | - | ||
| U0142 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | - | - | - | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | ○ | ○ | - | ||
| U0142 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| U0265 | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | |
| U0122 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Sub Bus 1 | Position Control ECU and Switch Assembly LH | - | - | - | - |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
- *5: w/ TFT Meter Type Combination Meter Assembly
- *6: w/ Optitron Meter Type Combination Meter Assembly
| - | Trouble Mode (CAN bus lines short circuit or short to GND) | ||||
|---|---|---|---|---|---|
| Bus 4 | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | ○ | ○ | ○ | ||
| U012687 | ○ | ○ | ○ | ||
| U012987 | ○ | ○ | ○ | ||
| U013187 | ○ | ○ | ○ | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| Bus 1 | Parking Assist ECU*1*2 | U0100 | - | - | - |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | ○ | ○ | ○ | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | ○ | ○ | ○ | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | ○ | ○ | ○ | |
| U010187 | ○ | ○ | ○ | ||
| U012587 | ○ | ○ | ○ | ||
| U012687 | ○ | ○ | ○ | ||
| U015187 | ○ | ○ | ○ | ||
| 4WD ECU Assembly*1 | U0100 | ○ | ○ | ○ | |
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| Occupant Detection ECU | U0125 | ○ | ○ | ○ | |
| U0129 | ○ | ○ | ○ | ||
| Bus 4 | Tire Pressure Warning ECU and Receiver | U0129 | ○ | ○ | ○ |
| Absorber Control ECU | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0122 | ○ | ○ | ○ | ||
| U0124 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| Power Steering ECU Assembly | U0100 | ○ | ○ | ○ | |
| U0129 | ○ | ○ | ○ | ||
| U023A | ○ | ○ | ○ | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | ○ | ○ | ○ | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Bus 5 | Combination Meter Assembly | U0100 | - | - | - |
| U0129 | ○ | ○ | ○ | ||
| U0131 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0151 | ○ | ○ | ○ | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | ○ | ○ | ○ | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| U0265 | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | ○ | ○ | ○ | ||
| U1126 | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | - | |
| U0122 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| U0327 | - | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 5, PAST COMMUNICATION ERROR)
(a) Regarding a past communication error of an ECU and sensor connected to the bus 5 (in this case, normal is displayed when performing the CAN bus check, but communication DTCs are output), the probable CAN bus line(s) that had a malfunction can be determined based on the following DTC combination table.
HINT:
- Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
- Regarding an open in a CAN bus line(s) and a communication stop that is currently occurring, the malfunctioning part can be confirmed easily by performing the CAN bus check using the Techstream because the ECU or sensor connected to the CAN bus line(s) does not respond (the ECU or sensor name will not be displayed on the screen).
-
If an open in a CAN main bus line, a short between the CAN bus lines (CANH and CANL) or a short to ground or +B in the CAN bus occurs, DTCs of almost all ECUs (or sensors) on the CAN bus may be output, or a message indicating a communication error may be displayed on the Techstream screen. In this case, check the resistance of the CAN bus (steps 9 to 23) first.
Click here
- If an open occurs in just one of the lines of a CAN bus line(s), DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
| - | Trouble Mode (Open in CAN branch line(s)) | ||||
|---|---|---|---|---|---|
| Bus 5 | |||||
| Output ECU | Output DTC | Air Conditioning Amplifier Communication Stop Mode | AFS ECU Communication Stop Mode | Main Body ECU Communication Stop Mode | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | ○ | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | ○ | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | ○ | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | ○ | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | ○ | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | ○ | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| Bus 2 | ECM | U010487 | - | - | - |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | ○ | ||
| U0155 | - | - | - | ||
| U0164 | ○ | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | ○ | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | ○ | - | |
| U0101 | - | ○ | - | ||
| U0126 | - | ○ | - | ||
| U0129 | - | ○ | - | ||
| U0142 | - | ○ | ○ | ||
| U0155 | - | ○ | - | ||
| Bus 5 | Air Conditioning Amplifier Assembly | U0100 | ○ | - | - |
| U0131 | ○ | - | - | ||
| U0142 | ○ | - | ○ | ||
| U0151 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| U0163 | ○ | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | ○ | ||
| U0163 | - | - | - | ||
| U023A | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | ○ | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | ○ | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | ○ | ||
| U0151 | - | - | - | ||
| U0163 | - | - | - | ||
| U0182 | - | ○ | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | ○ | |
| U0101 | - | - | ○ | ||
| U0120 | - | - | ○ | ||
| U0129 | - | - | ○ | ||
| U0151 | - | - | ○ | ||
| U0155 | - | - | ○ | ||
| U0164 | ○ | - | ○ | ||
| U0182 | - | ○ | ○ | ||
| U023A | - | - | ○ | ||
| U0265 | - | - | ○ | ||
| U0327 | - | - | ○ | ||
| U1106 | - | - | ○ | ||
| U1126 | - | - | ○ | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Sub Bus 1 | Multiplex Network Door ECU | U0101 | - | - | ○ |
| U0122 | - | - | ○ | ||
| U0142 | - | - | - | ||
| U0155 | - | - | ○ | ||
| U0327 | - | - | ○ | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN branch line(s)) | |||
|---|---|---|---|---|
| Bus 5 | ||||
| Output ECU | Output DTC | Combination Meter Mirror ECU Communication Stop Mode | Certification ECU Communication Stop Mode | |
| Bus 1 | Network Gateway ECU*3 | - | - | - |
| Bus 1 | Forward Recognition Camera | U010087 | - | - |
| U012587 | - | - | ||
| U012687 | - | - | ||
| U012987 | - | - | ||
| U013187 | - | - | ||
| U014087 | - | - | ||
| U015587 | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | |
| U0124 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0151 | - | - | ||
| U0155 | - | - | ||
| U0164 | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0163 | - | - | ||
| U0233 | - | - | ||
| U0265 | - | - | ||
| U1110 | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | |
| U0125 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0142 | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0163 | - | - | ||
| U0233 | - | - | ||
| U1110 | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - |
| ECM | U010487 | - | - | |
| U012287 | - | - | ||
| U115587 | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | |
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0155 | - | - | ||
| U0164 | - | - | ||
| U0198 | - | - | ||
| U023B | - | - | ||
| U0265 | - | - | ||
| U1110 | - | - | ||
| Bus 3 | DCM (Telematics Transceiver) | U014087 | - | - |
| U015587 | - | - | ||
| U016387 | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | |
| U010187 | - | - | ||
| U012587 | - | - | ||
| U012687 | - | - | ||
| U015187 | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| Occupant Detection ECU | U0125 | - | - | |
| U0129 | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | |
| Absorber Control ECU | U0100 | - | - | |
| U0101 | - | - | ||
| U0122 | - | - | ||
| U0124 | - | - | ||
| U0126 | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | |
| U0129 | - | - | ||
| U023A | - | - | ||
| Steering Sensor | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | |
| U0101 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0142 | - | - | ||
| U0155 | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | |
| U0131 | - | - | ||
| U0142 | - | - | ||
| U0151 | - | - | ||
| U0155 | - | - | ||
| U0163 | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | ○ | - | |
| U0142 | ○ | - | ||
| U0163 | ○ | - | ||
| U023A | ○ | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | ○ | |
| U0142 | - | ○ | ||
| U0155 | - | ○ | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | ○ |
| U0140 | - | ○ | ||
| U0155 | - | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | ○ | |
| Combination Meter Assembly | U0100 | - | - | |
| U0129 | - | - | ||
| U0131 | - | - | ||
| U0142 | - | - | ||
| U0151 | - | - | ||
| U0163 | - | - | ||
| U0182 | - | - | ||
| U023A | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | |
| U0101 | - | - | ||
| U0120 | - | ○ | ||
| U0129 | - | - | ||
| U0151 | - | - | ||
| U0155 | - | - | ||
| U0164 | - | - | ||
| U0182 | - | - | ||
| U023A | - | - | ||
| U0265 | - | - | ||
| U0327 | - | ○ | ||
| U1106 | - | - | ||
| U1126 | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - |
| U0200 | - | - | ||
| U0208 | - | - | ||
| U0230 | - | - | ||
| U1002 | - | - | ||
| U1115 | - | - | ||
| Multiplex Network Door ECU | U0101 | - | - | |
| U0122 | - | - | ||
| U0142 | - | - | ||
| U0155 | - | - | ||
| U0327 | - | ○ | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | |
| U0208 | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN main bus line(s)) | |||
|---|---|---|---|---|
| Bus 5 | ||||
| Output ECU | Output DTC | Network Gateway ECU | Combination Meter ECU Communication Stop Mode | |
| Bus 1 | Network Gateway ECU*3 | - | - | - |
| Forward Recognition Camera | U010087 | - | - | |
| U012587 | - | - | ||
| U012687 | - | - | ||
| U012987 | - | - | ||
| U013187 | - | - | ||
| U014087 | ○ | - | ||
| U015587 | ○ | ○ | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | |
| U0124 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | ○ | - | ||
| U0151 | - | - | ||
| U0155 | ○ | ○ | ||
| U0164 | ○ | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | ○ | - | ||
| U0163 | - | - | ||
| U0233 | - | - | ||
| U0265 | - | - | ||
| U1110 | - | - | ||
| Bus 1 | Blind Spot Monitor Sensor LH | U0100 | - | - |
| U0125 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0142 | ○ | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | ○ | - | ||
| U0163 | - | - | ||
| U0233 | - | - | ||
| U1110 | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - |
| ECM | U010487 | - | - | |
| U012287 | - | - | ||
| U115587 | ○ | ○ | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | |
| U0129 | - | - | ||
| U0140 | ○ | - | ||
| U0155 | ○ | ○ | ||
| U0164 | ○ | - | ||
| U0198 | - | - | ||
| U023B | - | - | ||
| U0265 | - | - | ||
| U1110 | - | - | ||
| DCM (Telematics Transceiver) | U014087 | ○ | - | |
| U015587 | ○ | ○ | ||
| U016387 | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | |
| U010187 | - | - | ||
| U012587 | - | - | ||
| U012687 | - | - | ||
| U015187 | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| Occupant Detection ECU | U0125 | - | - | |
| U0129 | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | |
| Absorber Control ECU | U0100 | - | - | |
| U0101 | - | - | ||
| U0122 | - | - | ||
| U0124 | - | - | ||
| U0126 | - | - | ||
| Bus 4 | Power Steering ECU Assembly | U0100 | - | - |
| U0129 | - | - | ||
| U023A | - | - | ||
| Steering Sensor | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | ○ | - | |
| U0101 | ○ | - | ||
| U0126 | ○ | - | ||
| U0129 | ○ | - | ||
| U0142 | - | - | ||
| U0155 | - | ○ | ||
| Air Conditioning Amplifier Assembly | U0100 | ○ | - | |
| U0131 | ○ | - | ||
| U0142 | - | - | ||
| U0151 | ○ | - | ||
| U0155 | - | ○ | ||
| U0163 | ○ | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | ○ | - | |
| U0142 | - | - | ||
| U0163 | ○ | - | ||
| U023A | ○ | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | ○ | - | |
| U0142 | - | - | ||
| U0155 | - | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | ○ | - | |
| U0140 | - | - | ||
| U0155 | - | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | ○ | - | |
| Combination Meter Assembly | U0100 | ○ | ○ | |
| U0129 | ○ | ○ | ||
| U0131 | ○ | ○ | ||
| U0142 | - | ○ | ||
| U0151 | ○ | ○ | ||
| U0163 | ○ | ○ | ||
| U0182 | - | ○ | ||
| U023A | ○ | ○ | ||
| Bus 5 | Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | ○ | - |
| U0101 | ○ | - | ||
| U0120 | - | - | ||
| U0129 | ○ | - | ||
| U0151 | ○ | - | ||
| U0155 | - | ○ | ||
| U0164 | - | - | ||
| U0182 | - | - | ||
| U023A | ○ | - | ||
| U0265 | ○ | - | ||
| U0327 | - | - | ||
| U1106 | ○ | - | ||
| U1126 | ○ | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - |
| U0200 | - | - | ||
| U0208 | - | - | ||
| U0230 | - | - | ||
| U1002 | - | - | ||
| U1115 | - | - | ||
| Multiplex Network Door ECU | U0101 | ○ | - | |
| U0122 | ○ | - | ||
| U0142 | - | - | ||
| U0155 | - | ○ | ||
| U0327 | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | |
| U0208 | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (CAN bus lines short circuit or short to GND) | ||||
|---|---|---|---|---|---|
| Bus 5 | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | ○ | ○ | ○ | ||
| U015587 | ○ | ○ | ○ | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | ○ | ○ | ○ | ||
| U0151 | - | - | - | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | ○ | ○ | ○ | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | ○ | ○ | ○ | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | ○ | ○ | ○ | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | - | - | - | ||
| U115587 | ○ | ○ | ○ | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Bus 3 | Radio Receiver Assembly*1 | U0100 | - | - | - |
| U0129 | - | - | - | ||
| U0140 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | ○ | ○ | ○ | |
| U015587 | ○ | ○ | ○ | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0126 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| Air Conditioning Amplifier Assembly | U0100 | ○ | ○ | ○ | |
| U0131 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| Bus 5 | Combination Meter Mirror ECU (Headup Display) | U0100 | ○ | ○ | ○ |
| U0142 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| U023A | ○ | ○ | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | ○ | ○ | ○ | |
| U0142 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | ○ | ○ | ○ | |
| U0140 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | ○ | ○ | ○ | |
| Combination Meter Assembly | U0100 | ○ | ○ | ○ | |
| U0129 | ○ | ○ | ○ | ||
| U0131 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| U0151 | ○ | ○ | ○ | ||
| U0163 | ○ | ○ | ○ | ||
| U0182 | ○ | ○ | ○ | ||
| U023A | ○ | ○ | ○ | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | ○ | ○ | ○ | |
| U0101 | ○ | ○ | ○ | ||
| U0120 | ○ | ○ | ○ | ||
| U0129 | ○ | ○ | ○ | ||
| U0151 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0164 | ○ | ○ | ○ | ||
| U0182 | ○ | ○ | ○ | ||
| U023A | ○ | ○ | ○ | ||
| U0265 | ○ | ○ | ○ | ||
| U0327 | ○ | ○ | ○ | ||
| U1106 | ○ | ○ | ○ | ||
| U1126 | ○ | ○ | ○ | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - | - |
| U0200 | - | - | - | ||
| U0208 | - | - | - | ||
| U0230 | - | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Multiplex Network Door ECU | U0101 | ○ | ○ | ○ | |
| U0122 | ○ | ○ | ○ | ||
| U0142 | - | - | - | ||
| U0155 | ○ | ○ | ○ | ||
| U0327 | ○ | ○ | ○ | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | - | |
| Sub Bus 1 | Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | - |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
DTC COMBINATION TABLE (OPEN OR SHORT IN SUB BUS 1, PAST COMMUNICATION ERROR)
(a) Regarding a past communication error of an ECU and sensor connected to sub bus 1 (in this case, normal is displayed when performing the CAN bus check, but communication DTCs are output), determine the part that had a malfunction based on DTCs output from the main body ECU (multiplex network body ECU).
HINT:
- As gateway function equipped ECUs (sub bus monitor ECUs) monitor signals from all ECUs that are connected to sub buses, gateway function equipped ECUs can detect ECUs with a communication stop more accurately.
- DTCs output from ECUs other than the main body ECU (multiplex network body ECU) (gateway function equipped ECU) are shown only as a reference.
- Regarding a communication stop that is currently occurring in sub bus 1, the malfunctioning part can be confirmed easily by performing the CAN bus check using the Techstream.
- If an open occurs in just one of the lines of a CAN branch, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
| - | Trouble Mode (Open in CAN branch line(s)) | ||||
|---|---|---|---|---|---|
| Sub Bus 1 | |||||
| Output ECU | Output DTC | Multiplex Network Door ECU | Outer Mirror Control ECU Assembly (for driver side) | Outer Mirror Control ECU Assembly (for front passenger side) | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Bus 5 | Air Conditioning Amplifier Assembly | U0100 | - | - | - |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| U0265 | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | ○ | - |
| U0200 | - | - | ○ | ||
| U0208 | - | - | - | ||
| U0230 | ○ | - | - | ||
| U1002 | - | - | - | ||
| U1115 | - | - | - | ||
| Sub Bus 1 | Multiplex Network Door ECU | U0101 | ○ | - | - |
| U0122 | ○ | - | - | ||
| U0142 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| U0327 | ○ | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | ○ | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | ○ | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN branch line(s)) | |||
|---|---|---|---|---|
| Sub Bus 1 | ||||
| Output ECU | Output DTC | Position Control ECU and Switch Assembly LH | Multiplex Tilt and Telescopic ECU | |
| Bus 1 | Network Gateway ECU*3 | - | - | - |
| Forward Recognition Camera | U010087 | - | - | |
| U012587 | - | - | ||
| U012687 | - | - | ||
| U012987 | - | - | ||
| U013187 | - | - | ||
| U014087 | - | - | ||
| U015587 | - | - | ||
| Bus 1 | Clearance Warning ECU Assembly*1*2 | U0100 | - | - |
| U0124 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0151 | - | - | ||
| U0155 | - | - | ||
| U0164 | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0163 | - | - | ||
| U0233 | - | - | ||
| U0265 | - | - | ||
| U1110 | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | |
| U0125 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0142 | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0163 | - | - | ||
| U0233 | - | - | ||
| U1110 | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - |
| ECM | U010487 | - | - | |
| U012287 | - | - | ||
| U115587 | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | |
| U0129 | - | - | ||
| U0140 | - | - | ||
| U0155 | - | - | ||
| U0164 | - | - | ||
| U0198 | - | - | ||
| U023B | - | - | ||
| U0265 | - | - | ||
| U1110 | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | |
| U015587 | - | - | ||
| U016387 | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - |
| Bus 4 | Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - |
| U010187 | - | - | ||
| U012587 | - | - | ||
| U012687 | - | - | ||
| U015187 | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | |
| U0126 | - | - | ||
| U0129 | - | - | ||
| Occupant Detection ECU | U0125 | - | - | |
| U0129 | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | |
| Absorber Control ECU | U0100 | - | - | |
| U0101 | - | - | ||
| U0122 | - | - | ||
| U0124 | - | - | ||
| U0126 | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | |
| U0129 | - | - | ||
| U023A | - | - | ||
| Steering Sensor | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | |
| U0101 | - | - | ||
| U0126 | - | - | ||
| U0129 | - | - | ||
| U0142 | - | - | ||
| U0155 | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | |
| U0131 | - | - | ||
| U0142 | - | - | ||
| U0151 | - | - | ||
| U0155 | - | - | ||
| U0163 | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | |
| U0142 | - | - | ||
| U0163 | - | - | ||
| U023A | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | |
| U0142 | - | - | ||
| U0155 | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | |
| U0140 | - | - | ||
| U0155 | - | - | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - |
| Combination Meter Assembly | U0100 | - | - | |
| U0129 | - | - | ||
| U0131 | - | - | ||
| U0142 | - | - | ||
| U0151 | - | - | ||
| U0163 | - | - | ||
| U0182 | - | - | ||
| U023A | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | |
| U0101 | - | - | ||
| U0120 | - | - | ||
| U0129 | - | - | ||
| U0151 | - | - | ||
| U0155 | - | - | ||
| U0164 | - | - | ||
| U0182 | - | - | ||
| U023A | - | - | ||
| U0265 | - | - | ||
| U0327 | - | - | ||
| U1106 | - | - | ||
| U1126 | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | - | - |
| U0200 | - | - | ||
| U0208 | ○ | - | ||
| U0230 | - | - | ||
| U1002 | - | - | ||
| U1115 | - | ○ | ||
| Multiplex Network Door ECU | U0101 | - | - | |
| U0122 | - | - | ||
| U0142 | - | - | ||
| U0155 | - | - | ||
| U0327 | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | - | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | - | ○ | |
| U0208 | ○ | ○ | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (Open in CAN main bus line(s)) | ||||
|---|---|---|---|---|---|
| Sub Bus 1 | |||||
| Output ECU | Output DTC | Main Body ECU (Multiplex Network Body ECU) | No. 8 CAN J/C to No. 11 CAN J/C | No. 8 CAN J/C to No. 1 CAN Junction Terminal | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Forward Recognition Camera | U010087 | - | - | - | |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Bus 1 | Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| DCM (Telematics Transceiver) | U014087 | - | - | - | |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - | |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| U0265 | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | ○ | - | - |
| U0200 | ○ | ○ | - | ||
| U0208 | ○ | - | - | ||
| U0230 | ○ | - | - | ||
| U1002 | - | - | - | ||
| U1115 | ○ | - | - | ||
| Multiplex Network Door ECU | U0101 | ○ | - | - | |
| U0122 | ○ | - | - | ||
| U0142 | ○ | - | - | ||
| U0155 | ○ | - | - | ||
| U0327 | ○ | - | - | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | ○ | - | - | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | ○ | ○ | - | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Multiplex Tilt and Telescopic ECU | U0142 | ○ | - | - | |
| U0208 | - | - | - | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
| - | Trouble Mode (CAN bus lines short circuit or short to GND) | ||||
|---|---|---|---|---|---|
| Sub Bus 1 | |||||
| Output ECU | Output DTC | CANH to CANL | CANH Short to Ground | CANL Short to Ground | |
| Bus 1 | Network Gateway ECU*3 | - | - | - | - |
| Bus 1 | Forward Recognition Camera | U010087 | - | - | - |
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U012987 | - | - | - | ||
| U013187 | - | - | - | ||
| U014087 | - | - | - | ||
| U015587 | - | - | - | ||
| Clearance Warning ECU Assembly*1*2 | U0100 | - | - | - | |
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| Parking Assist ECU*1*2 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Blind Spot Monitor Sensor LH | U0100 | - | - | - | |
| U0125 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| Millimeter Wave Radar Sensor Assembly | - | - | - | - | |
| Rear Television Camera Assembly*2 (w/ Parking Assist Monitor System) | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0163 | - | - | - | ||
| U0233 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 2 | Network Gateway ECU*3 | - | - | - | - |
| ECM | U010487 | - | - | - | |
| U012287 | - | - | - | ||
| U115587 | - | - | - | ||
| Bus 3 | Network Gateway ECU*3 | - | - | - | - |
| Radio Receiver Assembly*1 | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0198 | - | - | - | ||
| U023B | - | - | - | ||
| U0265 | - | - | - | ||
| U1110 | - | - | - | ||
| Bus 3 | DCM (Telematics Transceiver) | U014087 | - | - | - |
| U015587 | - | - | - | ||
| U016387 | - | - | - | ||
| Bus 4 | Network Gateway ECU*3 | - | - | - | - |
| Skid Control ECU (Brake Actuator Assembly)*4 | U010087 | - | - | - | |
| U010187 | - | - | - | ||
| U012587 | - | - | - | ||
| U012687 | - | - | - | ||
| U015187 | - | - | - | ||
| 4WD ECU Assembly*1 | U0100 | - | - | - | |
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| Occupant Detection ECU | U0125 | - | - | - | |
| U0129 | - | - | - | ||
| Tire Pressure Warning ECU and Receiver | U0129 | - | - | - | |
| Absorber Control ECU | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0122 | - | - | - | ||
| U0124 | - | - | - | ||
| U0126 | - | - | - | ||
| Power Steering ECU Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U023A | - | - | - | ||
| Steering Sensor | - | - | - | - | |
| Yaw Rate Sensor Assembly | - | - | - | - | |
| Airbag Sensor Assembly | U0154 | - | - | - | |
| Bus 5 | Network Gateway ECU*3 | - | - | - | - |
| Headlight ECU Sub-assembly LH*1*2 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0126 | - | - | - | ||
| U0129 | - | - | - | ||
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Air Conditioning Amplifier Assembly | U0100 | - | - | - | |
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0163 | - | - | - | ||
| Combination Meter Mirror ECU (Headup Display) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0163 | - | - | - | ||
| U023A | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Entry Function) | U0100 | - | - | - | |
| U0142 | - | - | - | ||
| U0155 | - | - | - | ||
| Bus 5 | Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function) | U0100 | - | - | - |
| U0140 | - | - | - | ||
| U0155 | - | - | - | ||
| Certification ECU (Smart Key ECU Assembly) (Start Function) | U0100 | - | - | - | |
| Combination Meter Assembly | U0100 | - | - | - | |
| U0129 | - | - | - | ||
| U0131 | - | - | - | ||
| U0142 | - | - | - | ||
| U0151 | - | - | - | ||
| U0163 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| Main Body ECU (Multiplex Network Body ECU)*3 | U0100 | - | - | - | |
| U0101 | - | - | - | ||
| U0120 | - | - | - | ||
| U0129 | - | - | - | ||
| U0151 | - | - | - | ||
| U0155 | - | - | - | ||
| U0164 | - | - | - | ||
| U0182 | - | - | - | ||
| U023A | - | - | - | ||
| U0265 | - | - | - | ||
| U0327 | - | - | - | ||
| U1106 | - | - | - | ||
| U1126 | - | - | - | ||
| Sub Bus 1 | Main Body ECU (Multiplex Network Body ECU)*3 | U0199 | ○ | ○ | ○ |
| U0200 | ○ | ○ | ○ | ||
| U0208 | ○ | ○ | ○ | ||
| U0230 | ○ | ○ | ○ | ||
| U1002 | ○ | ○ | ○ | ||
| U1115 | ○ | ○ | ○ | ||
| Multiplex Network Door ECU | U0101 | ○ | ○ | ○ | |
| U0122 | ○ | ○ | ○ | ||
| U0142 | ○ | ○ | ○ | ||
| U0155 | ○ | ○ | ○ | ||
| U0327 | ○ | ○ | ○ | ||
| Outer Mirror Control ECU Assembly (for driver side) | U0142 | ○ | ○ | ○ | |
| Outer Mirror Control ECU Assembly (for front passenger side) | U0142 | ○ | ○ | ○ | |
| Position Control ECU and Switch Assembly LH | - | - | - | - | |
| Sub Bus 1 | Multiplex Tilt and Telescopic ECU | U0142 | ○ | ○ | ○ |
| U0208 | ○ | ○ | ○ | ||
HINT:
- ○: DTC is output.
- -: DTC is not output.
- If an open occurs in just one of the lines of a CAN bus line, DTCs which are not related to malfunctioning parts may be output.
- *1: DTC U0073 may be stored when communication is lost.
- *2: DTC U1000 may be stored when communication is lost.
- *3: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
- *4: DTC U0074 may be stored when communication is lost.
Dtc Check / Clear
DTC CHECK / CLEAR CHECK FOR DTC (a) Connect the Techstream to the DLC3. (b) Turn the engine switch on (IG). (c) Turn the Techstream on. (d) Enter the following menus: Body Electrical / Central Gateway ...
Fail-safe Chart
FAIL-SAFE CHART FAIL-SAFE FUNCTION (a) When communication fails in any of the CAN bus lines (communication lines), a fail-safe function(s) will operate. The fail-safe function that is specified for ea ...
Other materials:
Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Exhaust Manifold: Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during exhaust manifold (TWC: Front Catalyst) and exhaust manifold assembly LH (TWC: Front Catalyst) removal/in ...
Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Smart Access System With Push-button Start (for Start Function): Power Source Mode does not Change to ON (IG and ACC)
DESCRIPTION If any of the following operations are performed, the certification ECU (smart key ECU assembly) receives a signal, and changes the power source mode.
With the electrical key transmitter sub-assembly in the cabin, the engine switch is pressed.
When the transmitter battery of the ele ...
Lexus RX (RX 350L, RX450h) 2016-{YEAR} Owners Manual
- For your information
- Pictorial index
- For safety and security
- Instrument cluster
- Operation of each component
- Driving
- Lexus Display Audio system
- Interior features
- Maintenance and care
- When trouble arises
- Vehicle specifications
- For owners
Lexus RX (RX 350L, RX450h) 2016-{YEAR} Repair Manual
0.022
