COMPONENTS

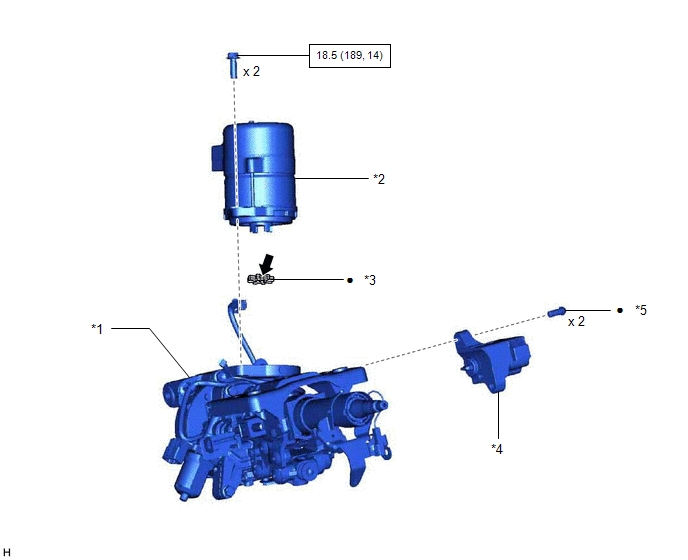

ILLUSTRATION
| *1 | ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | ELECTRIC POWER STEERING MOTOR SHAFT DAMPER | *4 | STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY |
| *5 | STEERING LOCK SET BOLT | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Grease | - | - |
Installation
INSTALLATION PROCEDURE 1. INSTALL POWER STEERING ECU ASSEMBLY NOTICE:
Do not drop the power steering ECU assembly, strike it with tools or subject it to impacts.
If the power steering ECU assembl ...
