Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *A | for F-Sport | - | - |
| *1 | NO. 2 BACK DOOR NAME PLATE | *2 | NO. 3 BACK DOOR NAME PLATE |
| ● | Non-reusable part | - | - |

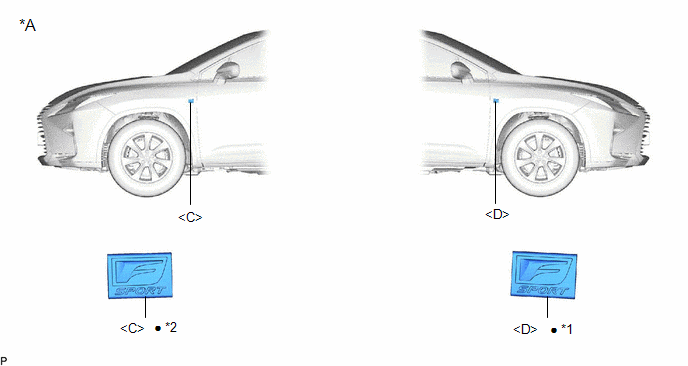

ILLUSTRATION
| *A | for F-Sport | - | - |
| *1 | NO. 1 FRONT FENDER NAME PLATE | *2 | NO. 2 FRONT FENDER NAME PLATE |
| ● | Non-reusable part | - | - |
Name Plate
...
Installation
INSTALLATION CAUTION / NOTICE / HINT HINT: When installing the name plates, heat the vehicle body and name plates using a heat light. Heating Temperature Item Temperature Vehicle Body 40 to ...
