Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Repair
REPAIR
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
- If the installation area of the headlight assembly is damaged, use a supply retainer for a low-cost repair.
- Ensure that the headlight assembly is not damaged.
PROCEDURE
1. INSTALL UPPER HEADLIGHT PROTECTOR RETAINER

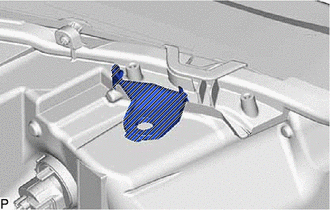

| (a) Cut off the part shaded in the illustration and sand smooth with sandpaper. HINT: After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer. |
|

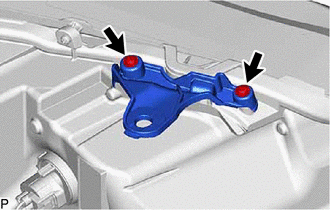

| (b) Install the upper headlight protector retainer with the 2 screws. |
|
2. INSTALL UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER

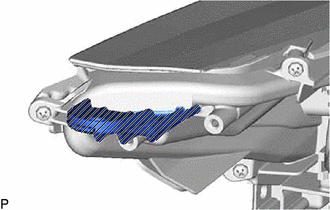

| (a) Cut off the part shaded in the illustration and sand smooth with sandpaper. HINT: After cutting off the part, place the upper No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer. |
|

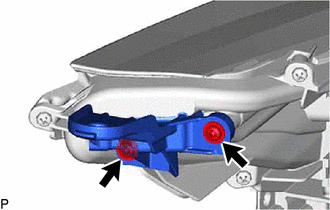

| (b) Install the upper No. 2 headlight protector retainer with the 2 screws. |
|
3. INSTALL LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER

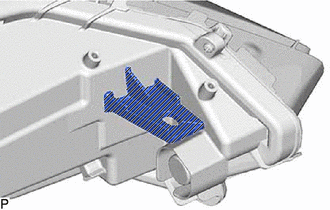

| (a) Cut off the part shaded in the illustration and sand smooth with sandpaper. HINT: After cutting off the part, place the lower No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer. |
|

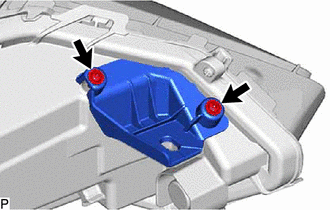

| (b) Install the lower No. 2 headlight protector retainer with the 2 screws. |
|
Installation
INSTALLATION CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. INSTALL HEADLIGHT ASSEMBLY (a) w/ Automa ...
