You can view the status of your hybrid system on the multi-information display and the audio system screen.

Vehicles with a navigation system (12.3-inch display): The energy monitor or consumption screen can be displayed and operated on the side display.

  1. Multi-information display
  2. Audio system screen
  3. Meter control switches
  4. "MENU" button
  5. Lexus Display Audio controller
  6. "MENU" button
  7. Remote Touch knob
  8. "ENTER" button

Lexus RX. Energy monitor/consumption screen

*1: Vehicles with a Lexus Display Audio system
*2: Vehicles with a navigation system

Energy monitor

Lexus Display Audio screen

Press the "MENU" button on the Lexus Display Audio controller, then select "Info" on the "Menu" screen, and then select "Fuel Consumption".

If the "Energy Monitor" screen does not appear, move the controller to the right and select "Energy".

Lexus RX. Energy monitor/consumption screen

Navigation system screen

Press the "MENU" button on the Remote Touch, then select on the "Menu" screen, and then select "Fuel Consumption".

If the "Trip Information" or "Past Record" screen is displayed, select "Energy".

Lexus RX. Energy monitor/consumption screen

Multi-information display

Press the or of the meter control switches and select , and then press the or to select the energy monitor display.

  Audio system screen

Multi-information display

When the vehicle is powered by the electric motor (traction motor) Lexus RX. Energy monitor/consumption screen Lexus RX. Energy monitor/consumption screen
When the vehicle is powered by both the gasoline engine and the electric motor (traction motor) Lexus RX. Energy monitor/consumption screen Lexus RX. Energy monitor/consumption screen
When the vehicle is powered by the gasoline engine Lexus RX. Energy monitor/consumption screen Lexus RX. Energy monitor/consumption screen
When the vehicle is charging the hybrid battery (traction battery) Lexus RX. Energy monitor/consumption screen Lexus RX. Energy monitor/consumption screen
Lexus RX. Energy monitor/consumption screen Lexus RX. Energy monitor/consumption screen
When there is no energy flow Lexus RX. Energy monitor/consumption screen Lexus RX. Energy monitor/consumption screen
Hybrid battery (traction battery) status Lexus RX. Energy monitor/consumption screen Lexus RX. Energy monitor/consumption screen

These images are examples only, and may vary slightly from actual conditions.

Fuel consumption

■ Trip information

Lexus Display Audio screen

Press the "MENU" button on the Lexus Display Audio controller, then select "Info" on the "Menu" screen, and then select "Fuel Consumption".

If the "Trip Information" screen does not appear, move the controller to the right and select "Trip Information".

  1. Fuel consumption in the past 15 minutes
  2. Current fuel consumption
  3. Regenerated energy in the past 15 minutes
    One symbol indicates 50 Wh.

    Up to 5 symbols are shown.

  4. Average vehicle speed since the hybrid system was started.
  5. Elapsed time since the hybrid system was started.
  6. Cruising range

Lexus RX. Energy monitor/consumption screen

Navigation system screen

Press the "MENU" button on the Remote Touch, then select on the "Menu" screen, and then select "Fuel Consumption".

If the "Energy Monitor" or "Past Record" screen is displayed, select "Trip Information".

  1. Resetting the consumption data
  2. Fuel consumption in the past 15 minutes
  3. Current fuel consumption
  4. Regenerated energy in the past 15 minutes
    One symbol indicates 50 Wh.
    Up to 5 symbols are shown.
  5. Average vehicle speed since the hybrid system was started.
  6. Elapsed time since the hybrid system was started.
  7. Cruising range

Lexus RX. Energy monitor/consumption screen

Average fuel consumption for the past 15 minutes is divided by color into past averages and averages attained since the power switch was last turned to ON mode. Use the displayed average fuel consumption as a reference.

The image is an example only.

■ Past record

Lexus Display Audio screen

Press the "MENU" button on the Lexus Display Audio controller, then select "Info" on the "Menu" screen, and then select "Fuel Consumption".

If the "Past Record" screen does not appear, move the controller to the right and select "Past Record".

  1. Previous fuel consumption record
  2. Current fuel consumption
  3. Best recorded fuel consumption

Lexus RX. Energy monitor/consumption screen

Navigation system screen

Press the "MENU" button on the Remote Touch, then select on the "Menu" screen, and then select "Fuel Consumption".

If the "Energy Monitor" or "Trip Information" screen is displayed, select "Past Record".

  1. Resetting the past record data
  2. Best recorded fuel consumption
  3. Average fuel consumption
  4. Previous fuel consumption record
  5. Updating the average fuel consumption data

Lexus RX. Energy monitor/consumption screen

The average fuel consumption history is divided by color into past averages and the average fuel consumption since the last updated. Use the displayed average fuel consumption as a reference.

The image is an example only.

■ Updating the past record data

Vehicles with a Lexus Display Audio system

Update the average fuel consumption by moving the controller to the left and select "Update" to measure the current fuel consumption again.

Vehicles with a navigation system

Update the average fuel consumption by selecting "Update" to measure the current fuel consumption again.

■ Resetting the data

Vehicles with a Lexus Display Audio system

The fuel consumption data can be deleted by moving the controller to the left and select "Clear".

Vehicles with a navigation system

The fuel consumption data can be deleted by selecting "Clear".

■ Cruising range Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.

This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that displayed.

Using the side display (vehicles with 12.3-inch display)

Vehicle information can be displayed on the side display, then select "<" or ">" to select the desired screen.

Fuel consumption

Displays the average fuel consumption and regenerated energy for the past 10 minutes in 1 minute intervals, as well as the cruising range.

Lexus RX. Energy monitor/consumption screen

Past record

Displays the average fuel consumption and highest fuel consumption.

Lexus RX. Energy monitor/consumption screen

Trip information

Displays the cruising range, average fuel consumption and the amount of time elapsed since the hybrid system was started.

Lexus RX. Energy monitor/consumption screen

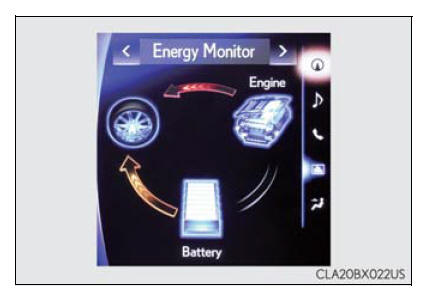

Energy monitor

Displays the hybrid system operation and energy recovery states.

Lexus RX. Energy monitor/consumption screen

The image is an example only, and may vary slightly from actual conditions.
