Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components
COMPONENTS

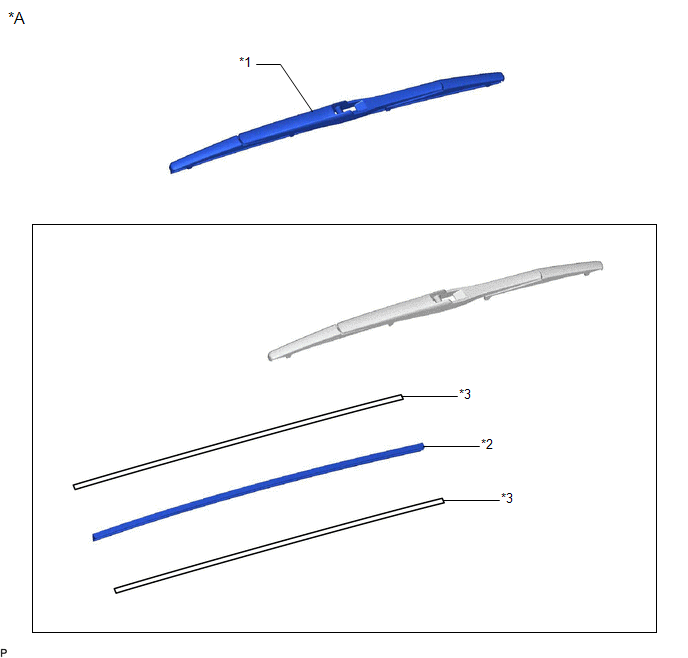

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | - | - |
| *1 | REAR WIPER BLADE | *2 | REAR WIPER RUBBER |
| *3 | REAR WIPER RUBBER BACKING PLATE | - | - |
ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | REAR WIPER BLADE | *2 | REAR WIPER RUBBER |
| *3 | REAR WIPER RUBBER BACKING PLATE | - | - |
Replacement
REPLACEMENT PROCEDURE 1. REMOVE REAR WIPER BLADE (w/o Rear No. 2 Seat) (a) Turn the engine switch on (IG). (b) Operate the rear wiper and when the rear wiper arm and blade assembly reach the point ...
