Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Installation
INSTALLATION
PROCEDURE
1. INSTALL CLEAN AIR FILTER

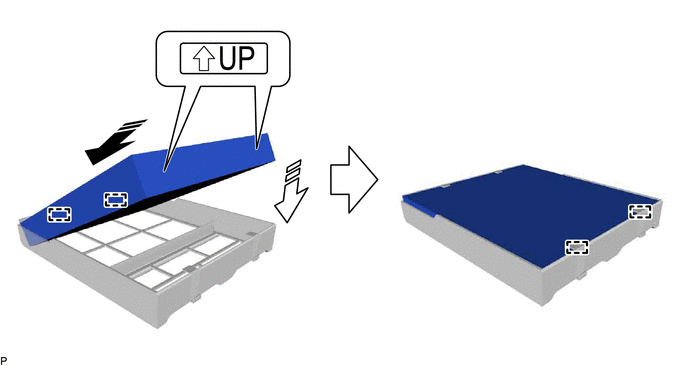

(a) Engage the 4 guides as indicated by the arrows, in the order shown in the illustration to install the clean air filter to the air filter case.
.png)
.png) | Install in this Direction (1) | .png) | Install in this Direction (2) |
NOTICE:
Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.
(b) Install the air filter sub-assembly as shown in the illustration.
| | Install in this Direction |
NOTICE:
Make sure that the "UP" mark is facing the correct direction before installing the air filter sub-assembly.
2. INSTALL AIR FILTER COVER PLATE
(a) Engage the 2 guides and claw as indicated by the arrows, in the order shown in the illustration to install the air filter cover plate.
| | Install in this Direction (1) |
| | Install in this Direction (2) |
3. INSTALL BLOWER ASSEMBLY
(a) Engage the guide (B) and 2 claws.
(b) Install the blower assembly to the air conditioning radiator assembly with the 2 screws.
(c) Engage 4 guides (A).
(d) Connect the connector.
4. INSTALL NO. 5 AIR DUCT SUB-ASSEMBLY
Click here .gif)
5. INSTALL AIR CONDITIONER UNIT ASSEMBLY
Click here
