Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front evaporator temperature sensor removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: When performing learning using the Techstream.
Click here | |||
| Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane Control System | |
| Pre-collision System | |||
| Intelligent Clearance Sonar System*1 | |||
| Parking Assist Monitor System | | ||
| Panoramic View Monitor System | | ||
| Lighting System (w/ Automatic Headlight Beam Level Control System) | | ||
| Initialize back door lock | Power Door Lock Control System | | |
| Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) | | |
| Removal/installation of the spiral cable with sensor sub-assembly |
| Parking assist monitor system | |
| Steering angle neutral point (Initialize panoramic view monitor system) | Panoramic view monitor system | | |
| Steering angle neutral point (Initialize intelligent clearance sonar system) | Intelligent clearance sonar system | | |
PROCEDURE
1. REMOVE BLOWER ASSEMBLY
Click here .gif)
2. REMOVE AIR CONDITIONING HARNESS ASSEMBLY
Click here
3. REMOVE NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
Click here
4. REMOVE HEATER GROMMET
Click here
5. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY
Click here
6. REMOVE COOLING UNIT PARTS
Click here
7. REMOVE COOLER EXPANSION VALVE
Click here
8. REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY
Click here
9. REMOVE NO. 1 COOLER THERMISTOR

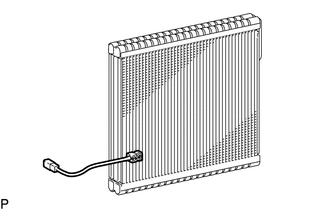

| (a) Remove the No. 1 cooler thermistor. |
|
Inspection
INSPECTION PROCEDURE 1. INSPECT NO. 1 COOLER THERMISTOR (a) Measure the resistance according to the value(s) in the table below. *a Component without harness connected (No. 1 Cooler Thermistor) ...
Installation
INSTALLATION PROCEDURE 1. INSTALL NO. 1 COOLER THERMISTOR (a) Install the No. 1 cooler thermistor as shown in the illustration. Installation Position: Part Length A 61.1 mm (2.41 in.) ...
