Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components
COMPONENTS

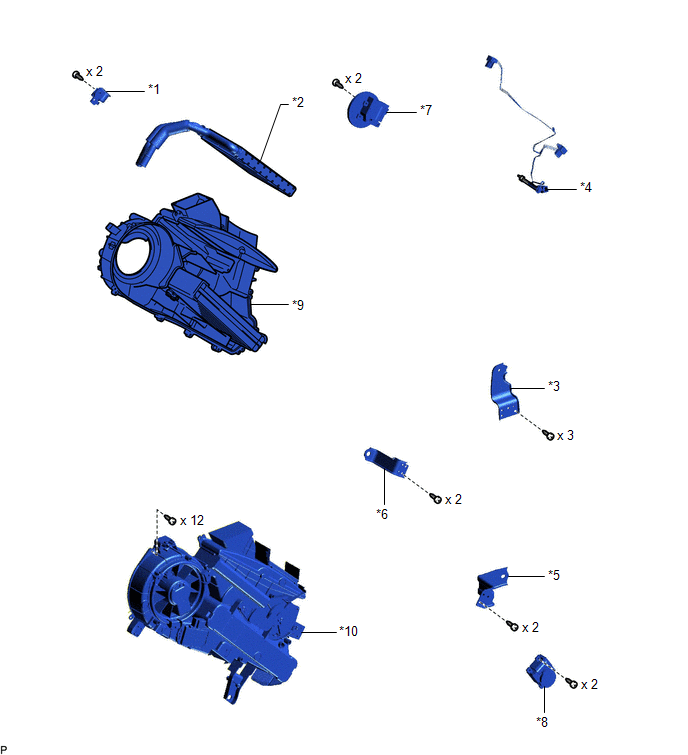

ILLUSTRATION
| *1 | COOLER UNIT CLAMP | *2 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *3 | NO. 1 COOLING UNIT BRACKET | *4 | NO. 2 AIR CONDITIONING HARNESS ASSEMBLY |
| *5 | NO. 2 COOLING UNIT BRACKET | *6 | NO. 3 COOLING UNIT BRACKET |
| *7 | REAR NO. 1 COOLING UNIT DAMPER SERVO SUB-ASSEMBLY | *8 | REAR NO. 2 COOLING UNIT DAMPER SERVO SUB-ASSEMBLY |
| *9 | REAR COOLING UNIT COVER RH | *10 | REAR COOLING UNIT COVER LH |
Removal
REMOVAL PROCEDURE 1. REMOVE REAR COOLING UNIT ASSEMBLY Click here 2. REMOVE REAR NO. 2 COOLING UNIT DAMPER SERVO SUB-ASSEMBLY Click here 3. REMOVE REAR NO. 1 COOLING UNIT DAMPER SERVO SUB-ASSEMBL ...
