Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Touch Panel Switch does not Function
CAUTION / NOTICE / HINT
NOTICE:
Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.
Click here .gif)
PROCEDURE
| 1. | CHECK MULTI-DISPLAY |
(a) Check if there is any foreign matter caught between the display and exterior frame of the multi-display.
OK:
No foreign matter is caught between the display and exterior frame of the multi-display.
HINT:
- If there is foreign matter between the display and exterior frame of the multi-display, the touch panel will remain pressed, preventing touch switch operation.
- If the engine switch is turned on (ACC) or on (IG) with part of your hand touching the multi-display, the display may stop responding correctly.
| NG | .gif) | REMOVE FOREIGN MATTER |
|
.gif)
| 2. | CHECK TOUCH PANEL |
(a) Check for foreign matter on the display.
OK:
The display is clean.
| NG | | CLEAN DISPLAY AND RECHECK TOUCH PANEL |
|
| 3. | CHECK TOUCH SWITCH (OPERATION CHECK) |

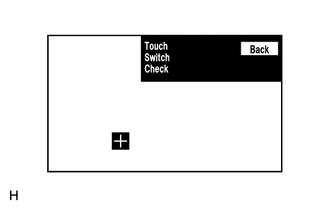

| (a) Enter the "Touch Switch Check" screen. Refer to Check Touch Switch in Operation Check. Click here |
|
.png)
(b) Touch the display in the area where the switch malfunction occurs.
OK:
A "+" mark appears at the touched position.
| OK | | REPLACE MULTI-DISPLAY ASSEMBLY |
| NG | | PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
Panel Switches do not Function
CAUTION / NOTICE / HINT NOTICE: Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precau ...
Screen Flicker or Color Distortion
PROCEDURE 1. CHECK DISPLAY SETTING (a) Reset display settings (contrast, brightness) and check that the screen appears normal. OK: The display returns to normal. OK END (DISPLAY SETTIN ...
