Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *1 | REAR DOOR SCUFF PLATE RH | *2 | REAR NO. 1 SEAT ASSEMBLY RH |
| *3 | REAR SEAT CENTER HEADREST ASSEMBLY | *4 | REAR SEAT HEADREST ASSEMBLY |
| *5 | REAR SEAT INNER TRACK BRACKET COVER RH | *6 | REAR SEAT OUTER TRACK BRACKET COVER RH |
| *7 | REAR SEAT OUTER TRACK BRACKET COVER RH | *8 | SEAT INNER TRACK BRACKET COVER RH |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

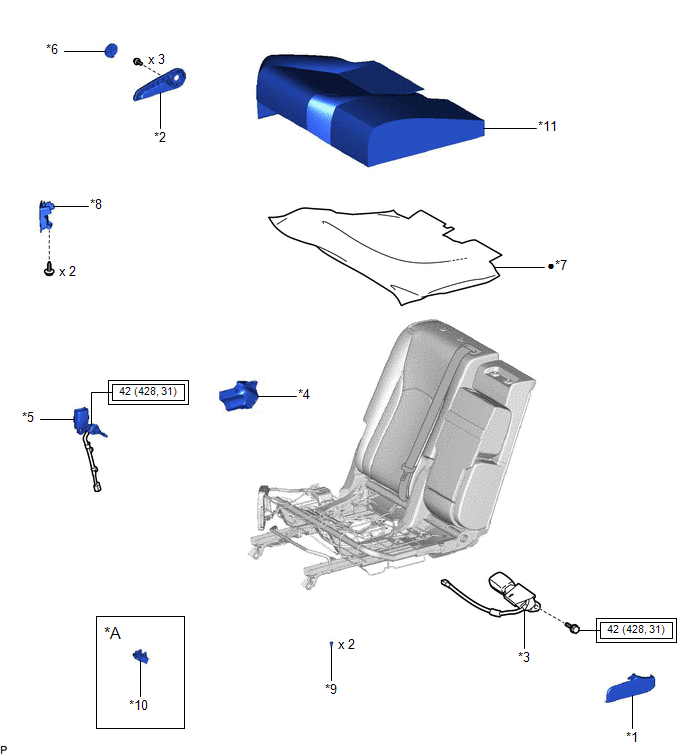

ILLUSTRATION
| *A | w/ Seat Heater System | - | - |
| *1 | CENTER SEAT HINGE COVER LH | *2 | NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH |
| *3 | REAR CENTER SEAT INNER BELT ASSEMBLY | *4 | REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER |
| *5 | REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH | *6 | REAR SEAT COVER CAP RH |
| *7 | REAR SEAT CUSHION EDGE PROTECTOR | *8 | REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH |
| *9 | SEAT ADJUSTER COVER CAP | *10 | SEAT HEATER CONTROL SUB-ASSEMBLY RH |
| *11 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *A | w/ Seat Heater System | - | - |
| *1 | SEAT COVER WIRE | *2 | SEAT HEATER ASSEMBLY |
| *3 | SEPARATE TYPE REAR SEAT CUSHION COVER | *4 | REAR SEAT CUSHION PAD RH |
| *5 | HOG RING | *6 | TAG PIN |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | ARMREST ASSEMBLY | *2 | CENTER ARMREST HINGE COVER LH |
| *3 | NO. 1 SEAT ARMREST ASSEMBLY | *4 | REAR CENTER SEAT CUSHION COVER SUB-ASSEMBLY |
| *5 | REAR SEATBACK BOARD SUB-ASSEMBLY | *6 | REAR SEATBACK COVER |
| *7 | REAR SEATBACK CENTER HINGE SUB-ASSEMBLY | *8 | NO. 2 REAR SEAT RECLINING SPACER |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |
ILLUSTRATION
| *A | w/ Seat Heater System | - | - |
| *1 | CENTER ARMREST HINGE COVER RH | *2 | CENTER ARMREST LOCK SUB-ASSEMBLY |
| *3 | CUP HOLDER ASSEMBLY | *4 | NO. 2 REAR SEAT CENTER ARMREST BOX |
| *5 | REAR CONSOLE BOX WIRE | *6 | REAR SEAT CENTER ARMREST ASSEMBLY |
| *7 | REAR SEAT CENTER ARMREST COVER | *8 | REAR SEAT CENTER ARMREST DOOR SUB-ASSEMBLY |
| *9 | REAR SEAT HEATER SWITCH | *10 | REAR NO. 1 SEAT CENTER ARMREST COVER |
| *11 | REAR SEAT CENTER ARMREST PLATE | *12 | REAR SEAT CENTER ARMREST COVER SUB-ASSEMBLY |
| *13 | NO. 1 REAR SEAT RECLINING SPACER | *14 | NO. 1 SEAT CENTER ARMREST PLATE |
| *15 | REAR SEATBACK HINGE | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | NO. 1 SEATBACK COVER | *2 | NO. 2 CENTER SEATBACK COVER |
| *3 | REAR SEATBACK LOCK ASSEMBLY RH | *4 | REAR SEATBACK LOCK LEVER |
| *5 | FOLD SEATBACK WIRE | *6 | REAR SEAT HEADREST SUPPORT ASSEMBLY |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *1 | NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY RH | *2 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
| *3 | REAR SEAT SHOULDER BELT COVER | *4 | REAR SEAT UPPER RECLINING COVER RH |
| *5 | REAR SEATBACK BOARD CARPET ASSEMBLY RH | *6 | REAR SEATBACK COVER RH |
| *7 | REAR SEATBACK EDGE PROTECTOR | *8 | RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH |
| *9 | SEAT BELT ANCHOR COVER CAP | *10 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
| *11 | REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | w/ Seat Heater System | - | - |
| *1 | RECLINING REMOTE CONTROL BEZEL RH | *2 | SEAT COVER WIRE |
| *3 | SEAT HEATER ASSEMBLY | *4 | SEPARATE TYPE REAR SEATBACK COVER |
| *5 | SEPARATE TYPE REAR SEATBACK PAD | *6 | HOG RING |
| *7 | TAG PIN | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | CENTER SEAT HINGE COVER RH | *2 | NO. 1 RECLINING LINK COVER RH |
| *3 | NO. 2 RECLINING LINK COVER RH | *4 | REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER |
| *5 | REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER | *6 | REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER |
| *7 | REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER | *8 | REAR NO. 1 SEAT RECLINING COVER RH |
| *9 | REAR SEAT AIRBAG ASSEMBLY RH | *10 | REAR SEAT CUSHION SPRING DAMPER RH |
| *11 | REAR SEAT INNER RECLINING COVER RH | *12 | RH SEAT REAR SEAT RECLINING COVER |
| *13 | RH SEAT REAR SEAT RECLINING COVER | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | REAR NO. 1 SEAT TRACK CONTROL CABLE ASSEMBLY RH | *2 | REAR SEAT RECLINING CONTROL CABLE |
| *3 | REAR SEAT WIRE RH | *4 | RECLINING ADJUSTING CABLE ASSEMBLY |
ILLUSTRATION
| *1 | REAR SEATBACK FRAME SUB-ASSEMBLY RH | *2 | RECLINING CONTROL LINK SUB-ASSEMBLY RH |
| *3 | NO. 1 SEAT CUSHION FRAME SUB-ASSEMBLY RH | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear ...
