Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear seat cushion heater removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane Control System | |
| Pre-collision System | |||
| Intelligent Clearance Sonar System*1 | |||
| Parking Assist Monitor System | | ||
| Panoramic View Monitor System | | ||
| Lighting System (w/ Automatic Headlight Beam Level Control System) | | ||
| Initialize back door lock | Power Door Lock Control System | | |
| Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) | |
*1: When performing learning using the Techstream.
Click here .gif)
CAUTION:
-
Be sure to read Precaution thoroughly before servicing.
Click here
- Wear protective gloves. Sharp areas on the parts may injure your hands.
.png)
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
Click here
2. REMOVE REAR SEAT COVER CAP LH
Click here
3. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH
Click here
4. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH
Click here
5. REMOVE CUP HOLDER ASSEMBLY
Click here
6. REMOVE REAR SEAT INNER RECLINING COVER LH
Click here
7. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD
Click here
8. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER
Click here
9. REMOVE SEAT HEATER ASSEMBLY

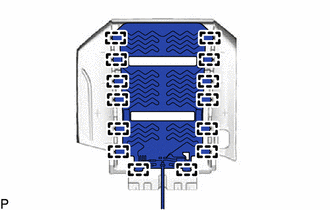

| (a) Remove the 14 tag pins and seat heater assembly from the separate type rear seat cushion cover. |
|
Components
COMPONENTS ILLUSTRATION *1 CUP HOLDER ASSEMBLY *2 NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH *3 REAR SEAT COVER CAP LH *4 REAR SEAT INNER RECLINING COVER LH *5 REAR SEAT LOCK ...
Inspection
INSPECTION PROCEDURE 1. INSPECT SEAT HEATER ASSEMBLY (for LH Side) (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition ...
