Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components
COMPONENTS

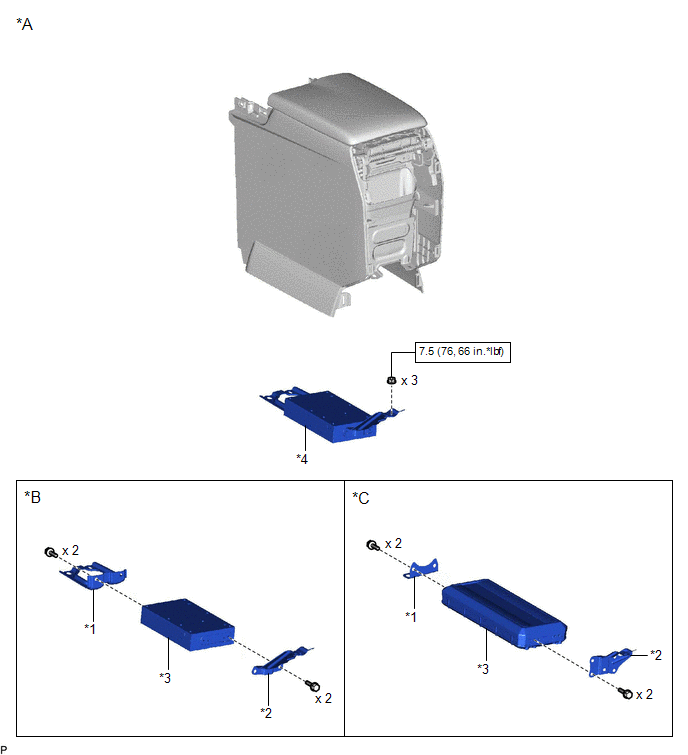

ILLUSTRATION
| *A | for TMMC Made | *B | except 15 Speakers |
| *C | for 15 Speakers | - | - |
| *1 | NO. 1 AMPLIFIER BRACKET | *2 | NO. 2 AMPLIFIER BRACKET |
| *3 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *4 | STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for TMC Made | *B | except 15 Speakers |
| *C | for 15 Speakers | - | - |
| *1 | NO. 1 AMPLIFIER BRACKET | *2 | NO. 2 AMPLIFIER BRACKET |
| *3 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *4 | STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Installation
INSTALLATION PROCEDURE 1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY 2. INSTALL NO. 2 AMPLIFIER BRACKET (a) Install the No. 2 amplifier bracket with the 2 screws. 3. INSTALL NO. 1 AMPLIFIER BRACKET ( ...
