Lexus RX (RX 350L, RX450h) 2016-2022 Repair Manual: Multi-display
Components
COMPONENTS
ILLUSTRATION
| *A | for 8 Inch Display | *B | for 12.3 Inch Display |
| *1 | INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *2 | MULTI-DISPLAY ASSEMBLY |
| *3 | MULTI-DISPLAY CONTROLLER BRACKET A | - | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Click here .gif)
2. REMOVE MULTI-DISPLAY ASSEMBLY
| (a) Disconnect each connector. |
|
(b) Disengage the clamp.
| (c) Remove the 2 nuts. |
|
(d) Disengage the 4 clips and remove the multi-display assembly as shown in the illustration.
.png) | Remove in this Direction |
3. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
HINT:
Perform this procedure only when replacement of the multi-display controller bracket A is necessary.

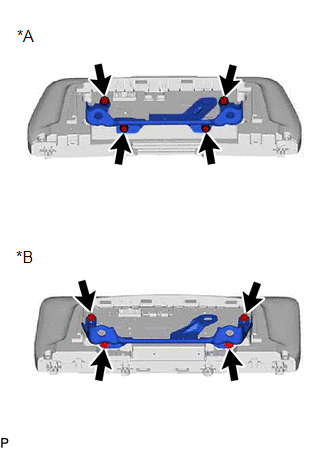

| (a) Remove the 4 screws and multi-display controller bracket A. |
|
Installation
INSTALLATION
PROCEDURE
1. INSTALL MULTI-DISPLAY CONTROLLER BRACKET A
HINT:
Perform this procedure only when replacement of the multi-display controller bracket A is necessary.
(a) Install the multi-display controller bracket A with the 4 screws.
2. INSTALL MULTI-DISPLAY ASSEMBLY
(a) Engage the 4 clips as shown in the illustration.
.png) | Install in this Direction |
(b) Install the multi-display assembly with the 2 nuts.
(c) Connect each connector.
(d) Engage the clamp.
3. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Click here .gif)
