REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.
  • The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.
  • If the rear speed sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.

PROCEDURE

1. REMOVE REAR WHEEL

Click here

2. REMOVE REAR SUSPENSION ARM COVER

Click here

3. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click here

4. REMOVE REAR DISC

Click here

5. SEPARATE REAR SKID CONTROL SENSOR WIRE

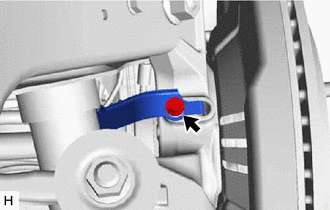

(a) Remove the bolt and separate the rear skid control sensor wire.

(b) Using a screwdriver with its tip wrapped with protective tape, disconnect the rear skid control sensor wire connector from the rear axle hub and bearing assembly.

NOTICE:

Be careful not to damage the rear axle hub and bearing assembly.

*a

Protective Tape

6. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

(a) Remove the rear axle hub and bearing assembly.

Click here

HINT:

  • The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.
  • If the rear speed sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
    Components
    COMPONENTS ILLUSTRATION *1 REAR AXLE HUB AND BEARING ASSEMBLY *2 REAR DISC *3 REAR DISC BRAKE CALIPER ASSEMBLY *4 REAR SKID CONTROL SENSOR WIRE *5 REAR SUSPENSION ARM COVER ...

    Installation
    INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. The rear speed sensor is a component of the rear axle ...
