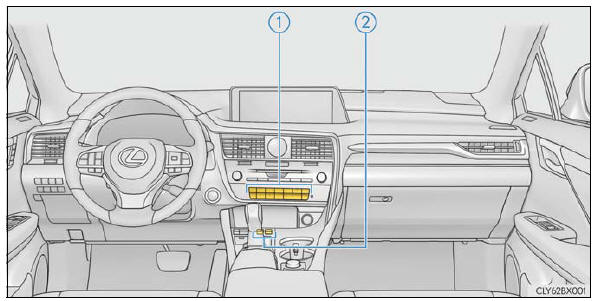

Lexus RX Owners Manual (RX450h): Lexus Climate Concierge

The climate control seats are automatically controlled according to the set temperature of the air conditioning system, outside temperature, cabin temperature, etc. Lexus Climate Concierge allows a comfortable condition to be maintained without adjusting each system.

Lexus RX. Using the air conditioning system and defogger

  1. Front automatic air conditioning system
    Set the air conditioning system to automatic mode.
    The temperature for the driver's seat and front passenger's seat can be adjusted individually.
  2. Seat heaters and ventilators
    Select "AUTO" mode on each seat.
    Seat heater or ventilation is automatically selected according to the set temperature of the air conditioning system, outside temperature, etc.

Front automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the temperature setting.

Vehicles with a Lexus Display Audio system: Press the "MENU" button on the Lexus Display Audio controller, then select "Climate" to display the air conditioning control screen.

Vehicles with a navigation system: Press the "MENU" button on the Remote Touch, then select to display the air conditioning control screen.

Vehicles with a navigation system (12.3-inch display): The air conditioning system can be displayed and operated on the side display. For details on the Remote Touch, refer to the "NAVIGATION SYSTEM OWNER'S MANUAL".

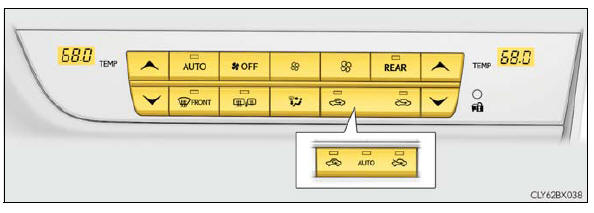

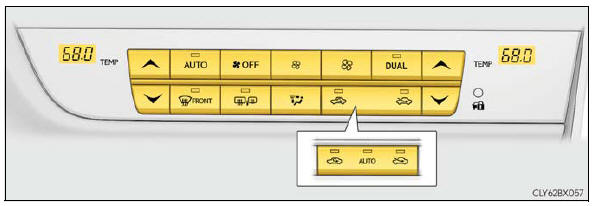

Control panel

RX450h

Lexus RX. Using the air conditioning system and defogger

RX450hL

Lexus RX. Using the air conditioning system and defogger

■ Adjusting the temperature setting Press to increase the temperature and to decrease the temperature.

■ Adjusting the fan speed setting Press to increase the fan speed and to decrease the fan speed.

Press the "OFF" button to turn the fan off.

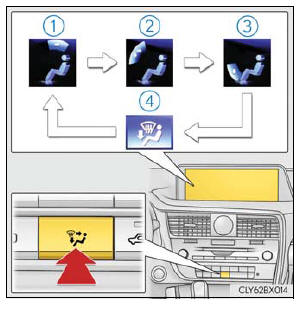

■ Change the airflow mode To change the air outlets, press .

The air outlets used are switched each time the button is pressed.

  1. Air flows to the upper body.

  2. Air flows to the upper body and feet.

  3. Air flows to the feet.

  4. Air flows to the feet and the windshield defogger operates.

Lexus RX. Change the airflow mode

■ Other functions

  • Switching between outside air and recirculated air modes

  • Defogging the windshield

  • Defogging the rear window and outside rear view mirrors

Control screen (RX450h)

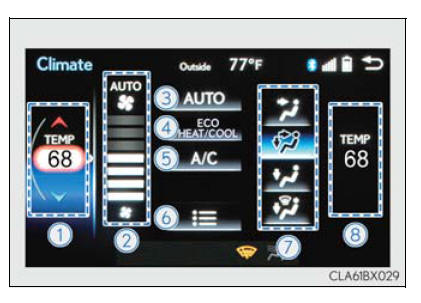

Lexus Display Audio screen

  1. Adjust the left-hand side temperature setting
  2. Adjust the fan speed setting
  3. Select to set auto mode on/off
  4. Select to set eco mode on/off
  5. Select to set cooling and dehumidification function on/off
    If the indicator is turned off, the system will blow ambient temperature air or heated air.
  6. Display the option control screen
  7. Select the air flow mode
  8. Adjust the right-hand side temperature setting

Lexus RX. Using the air conditioning system and defogger

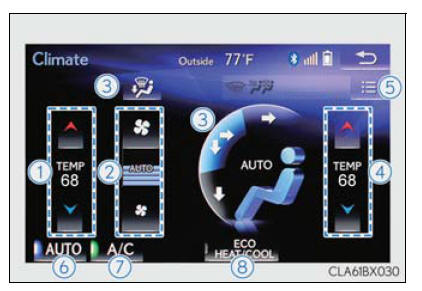

Navigation system screen

  1. Adjust the left-hand side temperature setting
  2. Adjust the fan speed setting
  3. Select the air flow mode
  4. Adjust the right-hand side temperature setting
  5. Display the option control screen
  6. Select to set automatic mode on/off
  7. Select to set cooling and dehumidification function on/off
    If the Lexus RX. Using the air conditioning system and defoggerindicator is turned off, the system will blow ambient temperature air or heated air.
  8. Select to set eco mode on/off

Lexus RX. Using the air conditioning system and defogger

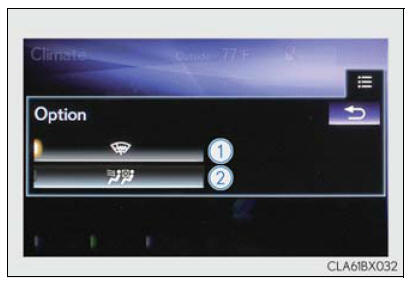

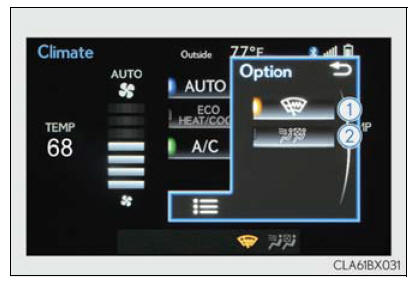

■ Option control screen Select on the air conditioning control screen to display the option control screen. The functions can be switched on and off.

Lexus Display Audio screen

Lexus RX. Using the air conditioning system and defogger

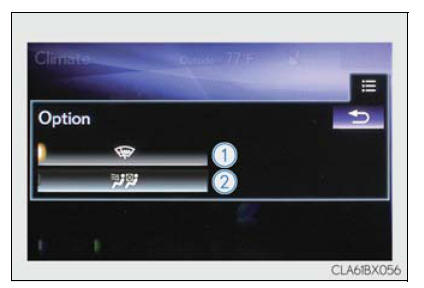

Navigation system screen

Lexus RX. Using the air conditioning system and defogger

  1. Prevent ice from building up on the windshield and wiper blades (if equipped)
  2. Select to set S-FLOW mode

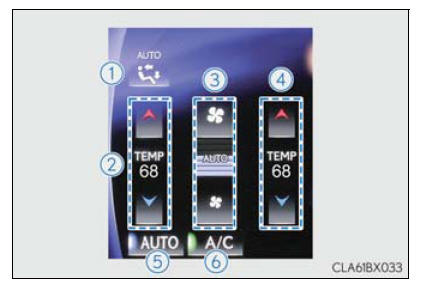

■ Side display operation screen (Vehicles with a navigation system [12.3-inch display])

  1. Select the air flow mode
  2. Adjust the left-hand side temperature setting
  3. Adjust the fan speed setting
  4. Adjust the right-hand side temperature setting
  5. Select to set auto mode on/off
  6. Select to set cooling and dehumidification function on/off
    If theLexus RX. Using the air conditioning system and defogger indicator is turned off, the system will blow ambient temperature air or heated air.

Lexus RX. Using the air conditioning system and defogger

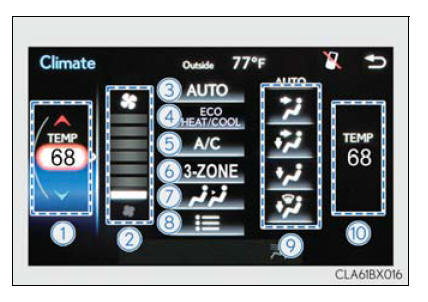

Control screen (RX450hL)

Lexus Display Audio screen

  1. Adjust the left-hand side temperature setting
  2. Adjust the fan speed setting
  3. Select to set auto mode on/off
  4. Select to set eco mode on/off
  5. Select to set cooling and dehumidification function on/off
    If the indicator is turned off, the system will blow ambient temperature air or heated air.
  6. Adjust the temperature for driver, passenger and rear seats separately ("3- ZONE" mode)
  7. Display the rear air conditioning control screen
  8. Display the option control screen
  9. Select the air flow mode
  10. Adjust the right-hand side temperature setting

Lexus RX. Using the air conditioning system and defogger

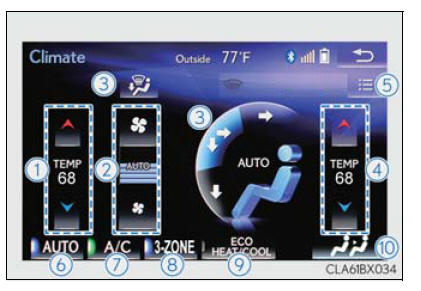

Navigation system screen

  1. Adjust the left-hand side temperature setting
  2. Adjust the fan speed setting
  3. Select the air flow mode
  4. Adjust the right-hand side temperature setting
  5. Display the option control screen
  6. Select to set automatic mode on/off
  7. Select to set cooling and dehumidification function on/off
    If theLexus RX. Using the air conditioning system and defogger indicator is turned off, the system will blow ambient temperature air or heated air.
  8. Adjust the temperature for driver, passenger and rear seats separately ("3- ZONE" mode)
  9. Select to set eco mode on/off
  10. Display the rear air conditioning control screen

Lexus RX. Using the air conditioning system and defogger

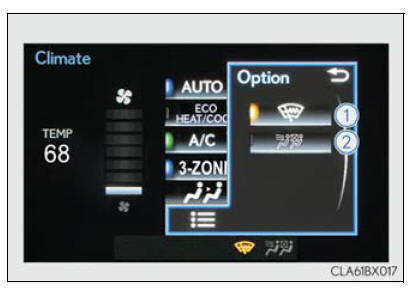

■ Option control screen Select on the air conditioning control screen to display the option control screen. The functions can be switched on and off.

Lexus Display Audio screen

Lexus RX. Using the air conditioning system and defogger

Navigation system screen

Lexus RX. Using the air conditioning system and defogger

  1. Prevent ice from building up on the windshield and wiper blades (if equipped)
  2. Select to set S-FLOW mode

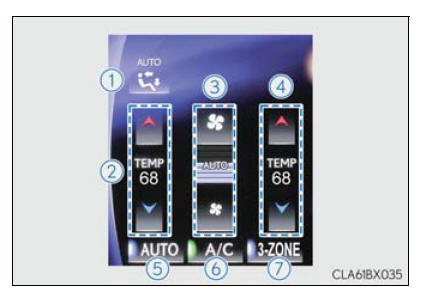

■ Side display operation screen (Vehicles with a navigation system [12.3-inch display])

  1. Select the air flow mode

  2. Adjust the left-hand side temperature setting

  3. Adjust the fan speed setting

  4. Adjust the right-hand side temperature setting

  5. Select to set auto mode on/off

  6. Select to set cooling and dehumidification function on/off
    If the Lexus RX. Using the air conditioning system and defogger indicator is turned off, the system will blow ambient temperature air or heated air.

  7. Adjust the temperature for driver, passenger and rear seats separately ("3- ZONE" mode)

Lexus RX. Using the air conditioning system and defogger

Air conditioning controls

■ Using the automatic mode

1. Press the "AUTO" button or select "AUTO" on the air conditioning control screen.

2. Press to switch to automatic air intake mode. (if equipped)

The air conditioning system automatically switches between outside air and recirculated air modes.

3. Adjust the temperature setting.

3. To stop the operation, press the "OFF" button.

■ Automatic mode indicator If the fan speed setting or air flow modes are operated, the automatic mode indicator goes off. However, automatic mode for functions other than that operated is maintained.

■ Adjusting the temperature for driver and passenger seats separately ("DUAL" mode) (RX450h) To turn on the "DUAL" mode, perform any of the following procedures:

  • Press "DUAL" button.
  • Adjust the temperature setting of the passenger side with the passenger side temperature adjustment button.

    The indicator comes on when the "DUAL" mode is on.

■ Adjusting the temperature for driver, passenger and rear seats separately ("3-ZONE" mode) (RX450hL) To turn on the "3-ZONE" mode, perform any of the following procedures:

  • Select "3-ZONE" on the air conditioning control screen.
  • Select "3-ZONE" on the side display operation screen. (Vehicles with a navigation system [12.3-inch display])
  • Adjust the temperature setting of the passenger side with the passenger side temperature adjustment button.

    The indicator comes on when the "3-ZONE" mode is on.

■ S-FLOW mode In S-FLOW mode, priority for the airflow is given to the front seats, reducing the airflow and air conditioning effect on the rear seats. When in S-FLOW mode, airflow from the rear air conditioning system is stopped. (RX450hL) Operation in S-FLOW mode differs according to the following conditions:

  • Priority is given to the driver's seat only when: Manual S-FLOW mode: When no passenger is judged to be in the front passenger seat.

Automatic S-FLOW mode: When no passengers are judged to be in the front passenger seat or rear seats.

  • Priority is given to the front seats when: Manual S-FLOW mode is selected or no passengers are judged to be in the rear seats when in automatic SFLOW mode.

  • S-FLOW mode will be disabled when: A passenger is judged to be in a rear seat when in automatic S-FLOW mode.

Depending on the set temperature, operation in S-FLOW mode may not change as described above.

When certain conditions are met and priority is given to the driver's seat only, the temperature indicator for the front passenger side will turn off.

How the system judges if a passenger is in the vehicle.

The following S-FLOW modes are available:

Automatic S-FLOW mode

In this mode, when a passenger is judged to be in a rear seat, S-FLOW mode will be automatically disabled.

The indicator will illuminate when S-FLOW mode is enabled.

To enable/disable S-FLOW mode and enter manual S-FLOW mode, select on the option control screen.

How the system judges if a passenger is in the vehicle.

Manual S-FLOW mode

When is selected, S-FLOW mode will be manually enabled/disabled.

The indicator will illuminate when S-FLOW mode is enabled.

In manual S-FLOW mode, as the system does not judge if a passenger is in a rear seat, S-FLOW mode will not be disabled automatically.

To disable S-FLOW mode automatically by opening and closing a rear door or operating the rear air conditioning system (RX450hL), change to automatic SFLOW mode.

Changing the rear seat settings (RX450hL)

Press the "REAR" button or select Lexus RX. Using the air conditioning system and defogger on the air conditioning control screen to display the rear air conditioning control screen.

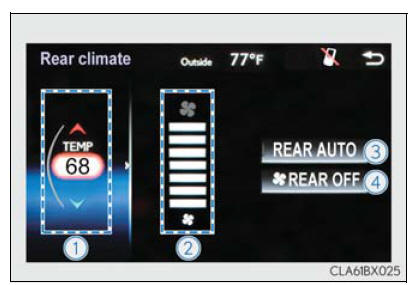

Lexus Display Audio screen

Lexus RX. Using the air conditioning system and defogger

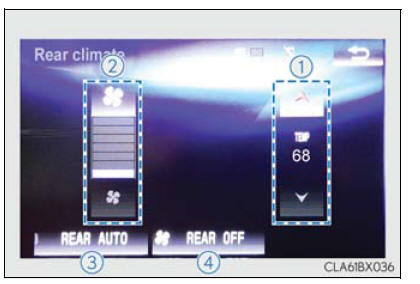

Navigation system screen

Lexus RX. Using the air conditioning system and defogger

  1. Adjust the temperature setting
  2. Adjust the fan speed setting
  3. Select to set auto mode on/off
  4. Turn the fan off

■ Using the automatic mode

1. Select the "REAR AUTO".

2. Adjust the temperature setting.

3. To stop the operation, select "REAR OFF".

■ Automatic mode indicator If the fan speed setting or air flow modes are operated, the automatic mode indicator goes off. However, automatic mode for functions other than that operated is maintained.

Other functions

■ Switching between outside air and recirculated air modes

Type A

Press .

The mode switches between(recirculated air mode) and (outside air mode) modes each time the button is pressed.

Type B

Press .

The mode switches between (recirculated air mode), automatic and (outside air mode) modes each time the button is pressed.

When the system is switched to automatic mode, the air conditioning system operates automatically.

■ Defogging the windshield Defoggers are used to defog the windshield and front side windows.

Press .

Set the outside/recirculated air mode button to outside air mode if the recirculated air mode is used. (It may switch automatically.) To defog the windshield and the side windows early, turn the air flow and temperature up.

To return to the previous mode, press again when the windshield is defogged.

■ Defogging the rear window and outside rear view mirrors Defoggers are used to defog the rear window and to remove raindrops, dew and frost from the outside rear view mirrors.

Press .

The defoggers will automatically turn off after a period of time.

■ Windshield wiper de-icer (if equipped) This feature is used to prevent ice from building up on the windshield and wiper blades.

Select on the option control screen.

When the windshield wiper de-icer is on, is displayed on the air conditioning control screen.

The windshield wiper de-icer will automatically turn off after a period of time.

Air outlets

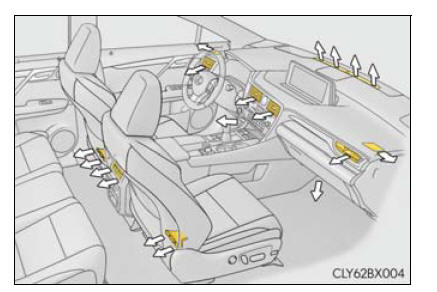

■ Location of air outlets The air outlets and air volume changes according to the selected air flow mode.

Lexus RX. Using the air conditioning system and defogger

■ Adjusting the position of and opening and closing the air outlets

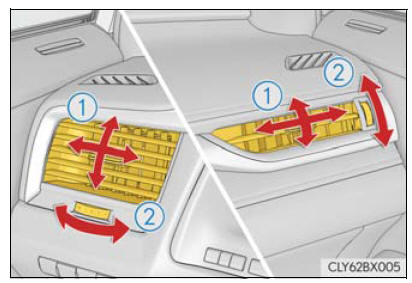

Front side

Lexus RX. Using the air conditioning system and defogger

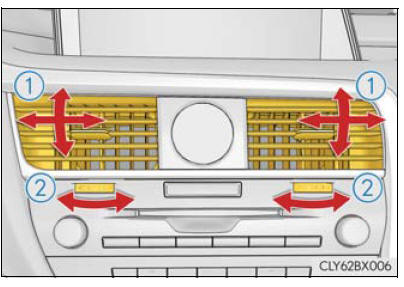

Front center

Lexus RX. Using the air conditioning system and defogger

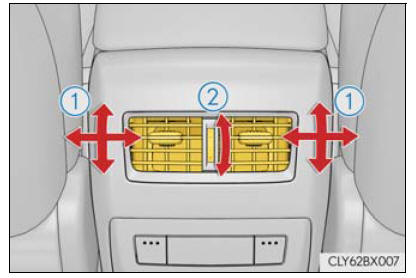

Rear

Lexus RX. Using the air conditioning system and defogger

  1. Direct air flow to the left or right, up or down
  2. Turn the knob to open or close the vent

■ Registering air conditioning settings to electronic keys

  • Unlocking the vehicle using an electronic key and turning the power switch to ON mode will recall that key's registered air conditioning settings.
  • When the power switch is turned off, the current air conditioning settings will automatically be registered to the electronic key that was used to unlock the vehicle.
  • The system may not operate correctly if more than one electronic key is in the vicinity or if the smart access system with push-button start is used to unlock a passenger door.
  • The doors that can recall the air conditioning setting when unlocked using the smart access system with push-button start can be changed.* For details, contact your Lexus dealer.

*: The doors that can recall the driving position memory are changed at the same time.

■ Using automatic mode Fan speed is adjusted automatically according to the temperature setting and the ambient conditions.

Therefore, the fan may stop for a while until warm or cool air is ready to flow immediately after the "AUTO" button is pressed or "AUTO" is selected.

■ How the system judges if a passenger is in the vehicle when in S-FLOW mode In S-FLOW mode, the system judges if a passenger is in the vehicle as follows:

  • Front passenger seat: A passenger is judged to be in the front passenger seat when the system detects an object on the front passenger seat, fastening of the front passenger seat belt, changing of the set temperature for the front passenger seat or the opening and closing of the front passenger door. (However, when only opening and closing of the front passenger door is detected, the system will judge that a passenger is not in the front passenger seat after the vehicle speed reaches approximately 12 mph (20 km/h) or more.)
  • Rear seats (automatic S-FLOW mode only): A passenger is judged to be in a rear seat when the system detects the opening and closing of a rear door or the operation of the rear air conditioning system (RX450hL).

If a passenger is judged to be in the vehicle, the system will retain the judgement for a certain amount of time after the power switch is turned off.

■ Operation of automatic S-FLOW mode When the system is operating in automatic S-FLOW mode, if the system detects the opening and closing of a rear door or the operation of the rear air conditioning system (RX450hL), S-FLOW mode will be disabled. To enable S-FLOW mode, select on the option control screen. (In this case, the system will operate in manual S-FLOW mode.)

■ Changing from manual S-FLOW mode to automatic S-FLOW mode

1. Select on the option control screen to disable S-FLOW mode.

2. Turn the power switch off.

3. Wait for 60 minutes or more and change the power switch to ON mode.

■ Using the voice command system Air conditioning system can be operated using voice commands. For details, refer to the "NAVIGATION SYSTEM OWNER'S MANUAL".

■ When the outside temperature exceeds 75ºF (24ºC) and the air conditioning system is on

  • In order to reduce the air conditioning power consumption, the air conditioning system may switch to recirculated air mode automatically.

    This may also reduce fuel consumption.

  • Recirculated air mode is selected as a default mode when the power switch is turned to ON mode.

  • It is possible to switch to outside air mode at any time by pressing the outside/recirculated air mode button.

■ Automatic mode for air intake control In automatic mode, the system detects exhaust gas and other pollutants and automatically switches between outside air and recirculated air modes.

When the dehumidification function is off, and the fan is operating, turning automatic mode on will activate the dehumidification function.

■ Fogging up of the windows

  • The windows will easily fog up when the humidity in the vehicle is high. Selecting "A/C" will dehumidify the air from the outlets and defog the windshield effectively.

  • If you turn "A/C" off, the windows may fog up more easily.

  • The windows may fog up if the recirculated air mode is used.

■ Windshield fog detection function

When automatic mode is set, the humidity sensor detects fog on the windshield and controls the air conditioning system to prevent fog.

■ Outside/recirculated air mode

  • When driving on dusty roads such as tunnels or in heavy traffic, set the outside/recirculated air mode button to the recirculated air mode. This is effective in preventing outside air from entering the vehicle interior. During cooling operation, setting the recirculated air mode will also cool the vehicle interior effectively.

  • Outside/recirculated air mode may automatically switch depending on the temperature setting or the inside temperature.

■ When the outside temperature is low The dehumidification function may not operate even when "A/C" is selected.

■ Operation of the air conditioning system in Eco drive mode

  • In the Eco drive mode, the air conditioning system is controlled as follows to prioritize fuel efficiency

    • Engine speed and compressor operation controlled to restrict heating/cooling capacity

    • Fan speed restricted when automatic mode is selected

  • To improve air conditioning performance, perform the following operations:

    • Adjust the fan speed

    • Turn off Eco drive mode

■ Ventilation and air conditioning odors

  • To let fresh air in, set the air conditioning system to the outside air mode.

  • During use, various odors from inside and outside the vehicle may enter into and accumulate in the air conditioning system. This may then cause odor to be emitted from the vents.

  • To reduce potential odors from occurring:

    • It is recommended that the air conditioning system be set to outside air mode prior to turning the vehicle off.

    • The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic mode.

■ Customization Some functions can be customized

WARNING

■ To prevent the windshield from fogging up

  • Do not use during cool air operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision.

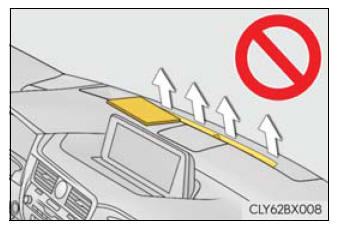

  • Do not place anything on the instrument panel which may cover the air outlets. Otherwise, air flow may be obstructed, preventing the windshield defoggers from defogging.

Lexus RX. Using the air conditioning system and defogger

■ To prevent burns

  • Do not touch the rear view mirror surfaces when the outside rear view mirror defoggers are on.
  • Do not touch the glass at lower part of the windshield or to the side of the front pillars when the windshield wiper de-icer is on. (if equipped)

NOTICE

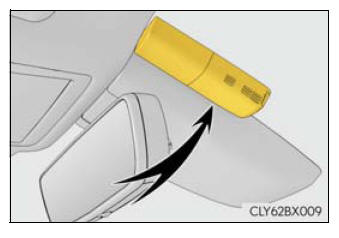

■ Humidity sensor

In order to detect fog on the windshield, a sensor which monitors the temperature of the windshield, the surround humidity, etc. is installed.

Follow these points to avoid damaging the sensor:

  • Do not disassemble the sensor
  • Do not spray the glass cleaner on the sensor or subject it to strong impacts
  • Do not stick anything on the sensor

■ To prevent 12-volt battery discharge Do not leave the air conditioning system on longer than necessary when the hybrid system is off.

Lexus RX. Using the air conditioning system and defogger

    Using the air conditioning system and defogger
    ...

    Rear automatic air conditioning system (RX450hL)
    Air outlets and fan speed are automatically adjusted according to the temperature setting. Control panel ■ Adjusting the temperature setting Press to increase the temperature and to decre ...

    Other materials:

    Lexus RX Owners Manual (RX450h) > Using the driving support systems: BSM (Blind Spot Monitor)
    Summary of the Blind Spot Monitor The Blind Spot Monitor is a system that has 2 functions: The BSM (Blind Spot Monitor) function Assists the driver in making a decision when changing lanes The RCTA (Rear Cross Traffic Alert) function Assists the driver when backing up These functions u ...

    Lexus RX Owners Manual (RX450h) > Instrument cluster: Gauges and meters
    Except F SPORT models F SPORT models The units used on the meters may differ depending on the target region. Engine coolant temperature gauge Displays the engine coolant temperature Hybrid System Indicator Displays hybrid system power output or regeneration level This display chang ...

    Lexus RX Owners Manual (RX450h)

    © 2020 Copyright www.lexusrx.net
    0.0099
