Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Speed Sensor
Components
COMPONENTS
ILLUSTRATION
| *1 | TRANSMISSION REVOLUTION SENSOR (NC3) | *2 | TRANSMISSION REVOLUTION SENSOR (NT) |
| *3 | TRANSMISSION REVOLUTION SENSOR (NC) | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
Removal
REMOVAL
CAUTION / NOTICE / HINT
NOTICE:
Since the transmission revolution sensor (NC) is installed to the front planetary gear sub-assembly, it is necessary to disassemble the automatic transaxle before removing the transmission revolution sensor (NC). Refer to Automatic Transaxle Unit.
Click here .gif)
PROCEDURE
1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
Click here
2. REMOVE TRANSMISSION REVOLUTION SENSOR (NC3)

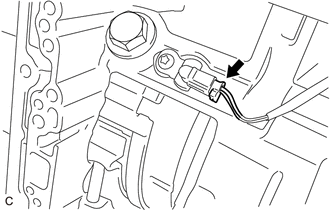

| (a) Disconnect the transmission revolution sensor (NC3) connector. |
|
| (b) Using a T30 "TORX" socket wrench, remove the bolt and transmission revolution sensor (NC3) from the automatic transaxle case sub-assembly. |
|
3. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)
| (a) Remove the bolt and transmission revolution sensor (NT) from the automatic transaxle case sub-assembly. |
|
Installation
INSTALLATION
PROCEDURE
1. INSTALL TRANSMISSION REVOLUTION SENSOR (NT)
(a) Install the transmission revolution sensor (NT) to the automatic transaxle case sub-assembly with the bolt.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
2. INSTALL TRANSMISSION REVOLUTION SENSOR (NC3)
(a) Using a T30 "TORX" socket wrench, install the transmission revolution sensor (NC3) to the automatic transaxle case sub-assembly with the bolt.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
(b) Connect the transmission revolution sensor (NC3) connector.
3. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
Click here .gif)
