Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Transmission Wire
Components
COMPONENTS

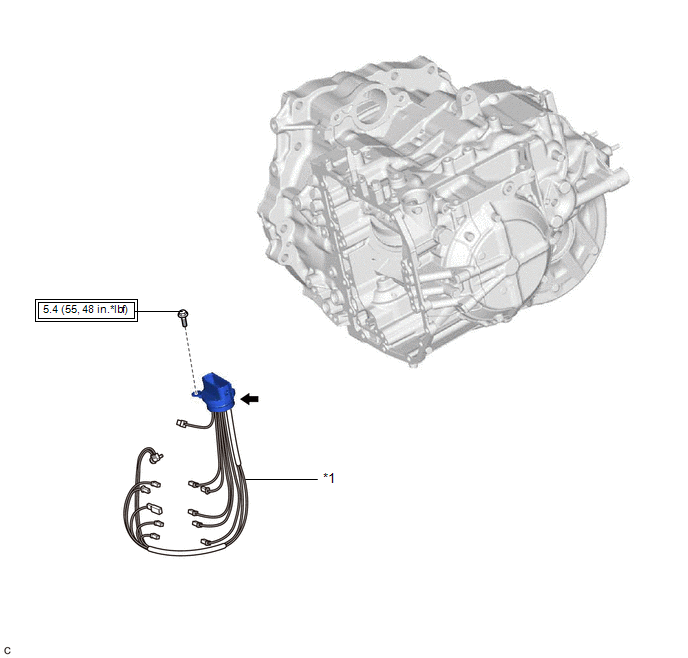

ILLUSTRATION
.png)
| *1 | TRANSMISSION WIRE | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | ATF WS |
Removal
REMOVAL
PROCEDURE
1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
Click here .gif)
2. REMOVE TRANSMISSION WIRE

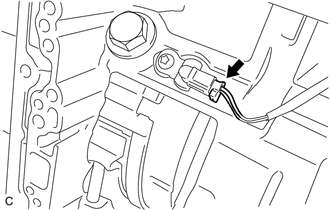

| (a) Disconnect the transmission revolution sensor (NC3) connector. |
|
.png)

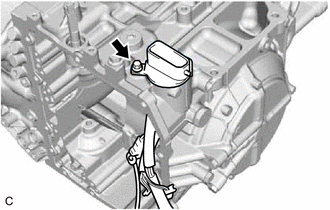

| (b) Remove the bolt and transmission wire from the automatic transmission case sub-assembly. |
|
.png)
Installation
INSTALLATION
PROCEDURE
1. INSTALL TRANSMISSION WIRE

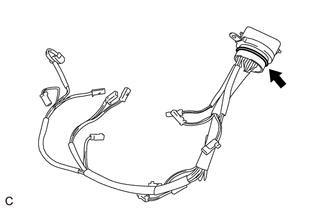

| (a) Apply a light coat of ATF to the O-ring of the transmission wire. |
|
.png)
(b) Install the transmission wire to the automatic transaxle case sub-assembly with the bolt.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
(c) Connect the transmission revolution sensor (NC3) connector.
2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
Click here .gif)
Installation
