DISASSEMBLY
PROCEDURE
1. REMOVE MANUAL VALVE
| (a) Remove the manual valve from the transmission valve body assembly. |
|
| (b) Remove the E-ring and separate the manual valve connecting rod from the manual valve. |
|
2. REMOVE SOLENOID LOCK PLATE
| (a) Remove the 2 bolts and solenoid lock plate from the transmission valve body assembly. |
|

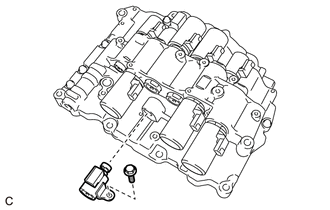

3. REMOVE SHIFT SOLENOID VALVE S1
| (a) Remove the bolt and shift solenoid valve S1. |
|
4. REMOVE SHIFT SOLENOID VALVE S2
| (a) Remove the bolt and shift solenoid valve S2. |
|
5. REMOVE SHIFT SOLENOID VALVE SLU
| (a) Using a Magnet Hand, remove the straight pin from the transmission valve body assembly. |
|
(b) Remove the shift solenoid valve SLU from the transmission valve body assembly.
6. REMOVE SHIFT SOLENOID VALVE SL1
| (a) Using a Magnet Hand, remove the straight pin from the transmission valve body assembly. |
|
(b) Remove the shift solenoid valve SL1 from the transmission valve body assembly.
7. REMOVE SHIFT SOLENOID VALVE SL2
| (a) Using a Magnet Hand, remove the straight pin from the transmission valve body assembly. |
|
(b) Remove the shift solenoid valve SL2 from the transmission valve body assembly.
8. REMOVE SHIFT SOLENOID VALVE SL3
| (a) Using a Magnet Hand, remove the straight pin from the transmission valve body assembly. |
|
(b) Remove the shift solenoid valve SL3 from the transmission valve body assembly.
9. REMOVE SHIFT SOLENOID VALVE SL4
| (a) Using a Magnet Hand, remove the straight pin from the transmission valve body assembly. |
|
(b) Remove the shift solenoid valve SL4 from the transmission valve body assembly.
10. REMOVE SHIFT SOLENOID VALVE SL5
| (a) Using a Magnet Hand, remove the straight pin from the transmission valve body assembly. |
|
(b) Remove the shift solenoid valve SL5 from the transmission valve body assembly.
11. REMOVE SHIFT SOLENOID VALVE SLT
| (a) Using a Magnet Hand, remove the straight pin from the transmission valve body assembly. |
|
(b) Remove the shift solenoid valve SLT from the transmission valve body assembly.
