DESCRIPTION

HINT:

These DTCs relate to the throttle position sensor.

The throttle position sensor is mounted on the throttle body with motor assembly and detects the opening angle of the throttle valve. This sensor is a non-contact type sensor. It uses Hall-effect elements in order to yield accurate signals even in extreme driving conditions, such as at high speeds as well as very low speeds.

The throttle position sensor has 2 sensor circuits, VTA1 and VTA2 each of which transmits a signal. VTA1 is used to detect the throttle valve angle and VTA2 is used to detect malfunctions in VTA1. The sensor signal voltages vary between 0 V and 5 V in proportion to the throttle valve opening angle, and are transmitted to the VTA1 and VTA2 terminals of the ECM.

As the valve closes, the sensor output voltage decreases and as the valve opens, the sensor output voltage increases. The ECM calculates the throttle valve opening angle according to these signals and controls the throttle actuator in response to driver inputs. These signals are also used in calculations such as air fuel ratio correction, power increase correction and fuel-cut control.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P012011

Throttle / Pedal Position Sensor / Switch "A" Circuit Short to Ground

The output voltage of VTA1 is less than 0.56 V for 2 seconds or more (1 trip detection logic).

  • Throttle position sensor (throttle body with motor assembly)
  • Short in VTA1 circuit
  • Open in VCTA circuit
  • ECM

Comes on

DTC stored

SAE Code: P0122

P012015

Throttle / Pedal Position Sensor / Switch "A" Circuit Short to Battery or Open

The output voltage of VTA1 is higher than 4.535 V for 2 seconds or more (1 trip detection logic).

  • Throttle position sensor (throttle body with motor assembly)
  • Open in VTA1 circuit
  • Open in ETA circuit
  • Short between VCTA and VTA1 circuits
  • ECM

Comes on

DTC stored

SAE Code: P0123

P01201C

Throttle / Pedal Position Sensor / Switch "A" Circuit Voltage Out of Range

The difference between the output voltage of VTA1 and VTA2 is less than 0.8 V, or higher than 1.6 V for 2 seconds or more (1 trip detection logic).

  • Throttle position sensor (throttle body with motor assembly)
  • Throttle position sensor circuit
  • ECM

Comes on

DTC stored

SAE Code: P0121

P022011

Throttle/Pedal Position Sensor/Switch "B" Circuit Short to Ground

The output voltage of VTA2 is less than 2.05 V for 2 seconds or more (1 trip detection logic).

  • Throttle position sensor (throttle body with motor assembly)
  • Short in VTA2 circuit
  • Open in VCTA circuit
  • ECM

Comes on

DTC stored

SAE Code: P0222

P022015

Throttle/Pedal Position Sensor/Switch "B" Circuit Short to Battery or Open

The output voltage of VTA2 is higher than 4.75 V, and VTA1 is less than 2.367 V for 2 seconds or more (1 trip detection logic).

  • Throttle position sensor (throttle body with motor assembly)
  • Open in VTA2 circuit
  • Short between VCTA and VTA2 circuits
  • ECM

Comes on

DTC stored

SAE Code: P0223

P21352B

Throttle/Pedal Position Sensor/Switch "A"/"B" Voltage Correlation Signal Cross Coupled

The difference between the output voltages of VTA1 and VTA2 is 0.02 V or less for 2 seconds or more (1 trip detection logic).

  • Throttle position sensor (throttle body with motor assembly)
  • Short between VTA1 and VTA2 circuits
  • Open in ETA circuit
  • ECM

Comes on

DTC stored

SAE Code: P2135

HINT:

  • When any of these DTCs are output, check the throttle valve opening angle using the Techstream. Enter the following menus: Powertrain / Engine / Data List / Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage.
  • Throttle Position Sensor No.1 Voltage is the VTA1 signal, and Throttle Position Sensor No.2 Voltage is the VTA2 signal.

    Reference (Normal Condition):

    Techstream Display

    Accelerator Pedal Fully Released

    Accelerator Pedal Fully Depressed (Engine Running)

    Throttle Position Sensor No.1 Voltage

    0.6 to 1.1 V

    3.2 to 4.8 V

    Throttle Position Sensor No.2 Voltage

    2.1 to 3.1 V

    4.6 to 4.98 V

MONITOR DESCRIPTION

The ECM uses the throttle position sensor to monitor the throttle valve opening angle. There are several checks that the ECM performs to confirm the proper operation of the throttle position sensor.

P012011, P012015, P022011, P022015 and P21352B:
  • A specific voltage difference is expected between the sensor terminals, VTA1 and VTA2, for each throttle valve opening angle. If the difference between VTA1 and VTA2 is incorrect, the ECM interprets this as a malfunction in the sensor circuit, and stores a DTC.
  • VTA1 and VTA2 each have a specific voltage range. If VTA1 or VTA2 is outside the normal operating range, the ECM interprets this as a malfunction in the sensor circuit, and stores a DTC.
  • VTA1 and VTA2 should never be close to the same voltage level. If VTA1 is within 0.02 V of VTA2, the ECM determines that there is a short circuit in the sensor circuit, and stores a DTC.
P01201C:
  • This sensor transmits two signals: VTA1 and VTA2. VTA1 is used to detect the throttle opening angle and VTA2 is used to detect malfunctions in VTA1. The ECM performs several checks to confirm the proper operation of the throttle position sensor and VTA1.

    For each throttle opening angle, a specific voltage difference is expected between the outputs of VTA1 and VTA2. If the output voltage difference between the two signals deviates from the normal operating range, the ECM interprets this as a malfunction in the throttle position sensor. In this case the ECM will illuminate the MIL and store this DTC.

MONITOR STRATEGY

Related DTCs

P0121: Throttle position sensor rationality

P0122: Throttle position sensor 1 range check (low voltage)

P0123: Throttle position sensor 1 range check (high voltage)

P0222: Throttle position sensor 2 range check (low voltage)

P0223: Throttle position sensor 2 range check (high voltage)

P2135: Throttle position sensor range check (correlation)

Required Sensors/Components (Main)

Throttle position sensor

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

2 seconds: P0122, P0123, P0222, P0223 and P2135

Within 2 seconds: P0121

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

All

Monitor runs whenever the following DTCs are not stored

None

P0122, P0123, P0222, P0223 and P2135

All of the following conditions are met

-

Battery voltage

8 V or higher

Engine switch

On (IG)

Starter

Off

P0121

Either of the following conditions is met

A or B

A. Engine switch

On (IG)

B. Throttle actuator power

On

Throttle position sensor circuit fail (P0122, P0123, P0222, P0223, P2135)

Not detected

TYPICAL MALFUNCTION THRESHOLDS

P0121

Either of the following conditions is met

A or B

A. Difference of learned throttle position sensor opener position voltage between VTA2 and VTA1

Higher than 1.6 V

B. Difference of learned throttle position sensor opener position voltage between VTA2 and VTA1

Less than 0.8 V

P0122

VTA1 voltage

Less than 0.56 V

P0123

VTA1 voltage

Higher than 4.535 V

P0222

VTA2 voltage

Less than 2.05 V

P0223

VTA2 voltage when VTA1 less than 2.367 V

Higher than 4.75 V

P2135

Difference between VTA1 and VTA2 voltages

0.02 V or less

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the engine switch off and wait for at least 30 seconds.
  6. Turn the engine switch on (IG) [A].
  7. Turn the Techstream on.
  8. Start the engine.

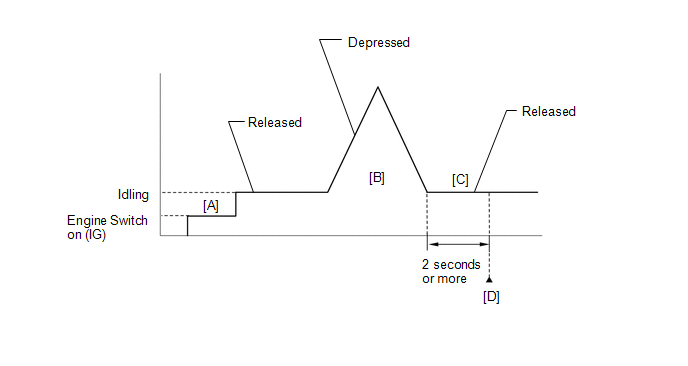

  9. With the vehicle stationary, fully depress and release the accelerator pedal [B].
  10. Idle the engine for 2 seconds or more [C].
  11. Enter the following menus: Powertrain / Engine / Trouble Codes [D].
  12. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  14. Input the DTC: P012011, P012015, P01201C, P022011, P022015 or P21352B.
  15. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, perform steps [B] through [D] again.
    • [A] to [D]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

FAIL-SAFE

When any of these DTCs or other DTCs relating to Electronic Throttle Control System (ETCS) malfunctions are stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 7° throttle valve opening angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the engine switch is then turned off.

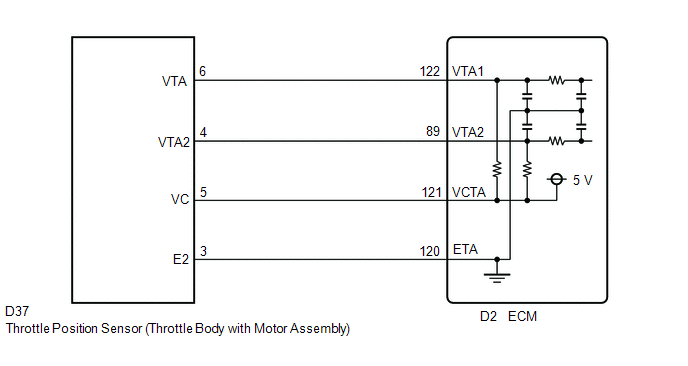

WIRING DIAGRAM

CAUTION / NOTICE / HINT

HINT:

Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

READ VALUE USING TECHSTREAM (THROTTLE POSITION SENSOR)

(a) Connect the Techstream to the DLC3.

(b) Start the engine.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage.

Powertrain > Engine > Data List

Tester Display

Throttle Position Sensor No.1 Voltage

Throttle Position Sensor No.2 Voltage

(e) Read the values displayed on the Techstream.

When Accelerator Pedal Fully Released

When Accelerator Pedal Fully Depressed (Engine Running)

Trouble Area

Proceed to

Throttle Position Sensor No.1 Voltage (VTA1)

Throttle Position Sensor No.2 Voltage (VTA2)

Throttle Position Sensor No.1 Voltage (VTA1)

Throttle Position Sensor No.2 Voltage (VTA2)

0 to 0.2 V

0 to 0.2 V

0 to 0.2 V

0 to 0.2 V

VCTA circuit open

A

4.5 to 4.98 V

4.5 to 4.98 V

4.5 to 4.98 V

4.5 to 4.98 V

ETA circuit open

0 to 0.2 V, or 4.5 to 4.98 V

2.1 to 3.1 V

(Fail-safe)

0 to 0.2 V, or 4.5 to 4.98 V

2.1 to 3.1 V

(Fail-safe)

VTA1 circuit open or ground short

0.6 to 1.4 V

(Fail-safe)

0 to 0.2 V, or 4.5 to 4.98 V

0.6 to 1.4 V

(Fail-safe)

0 to 0.2 V, or 4.5 to 4.98 V

VTA2 circuit open or ground short

0.6 to 1.1 V

2.1 to 3.1 V

3.2 to 4.8 V

(Not fail-safe)

4.6 to 4.98 V

(Not fail-safe)

Throttle position sensor circuit normal

B

HINT:

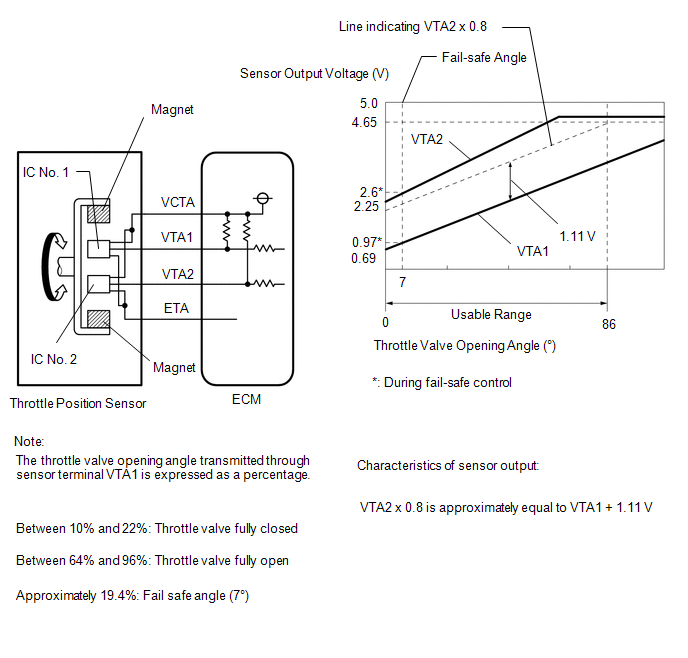

  • DTC P01201C is stored when the VTA1 and VTA2 output voltages are not consistent with the sensor characteristics. Therefore, check the freeze frame data when this DTC is stored. Use the following formula to confirm the relative differences in voltage.

    Characteristic Sensor Output:

    VTA2 x 0.8 is approximately equal to VTA1 + 1.11 V

    VTA1: Throttle Position Sensor No.1 Voltage

    VTA2: Throttle Position Sensor No.2 Voltage

  • If DTC P01201C is output, proceed to "Check Harness And Connector (Throttle Position Sensor - ECM)".
B

GO TO STEP 5

A

2.

CHECK HARNESS AND CONNECTOR (THROTTLE POSITION SENSOR - ECM)

(a) Disconnect the throttle body with motor assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D37-5 (VC) - D2-121 (VCTA)

Always

Below 1 Ω

D37-6 (VTA) - D2-122 (VTA1)

Always

Below 1 Ω

D37-4 (VTA2) - D2-89 (VTA2)

Always

Below 1 Ω

D37-3 (E2) - D2-120 (ETA)

Always

Below 1 Ω

D37-5 (VC) or D2-121 (VCTA) - Body ground and other terminals

Always

10 kΩ or higher

D37-6 (VTA) or D2-122 (VTA1) - Body ground and other terminals

Always

10 kΩ or higher

D37-4 (VTA2) or D2-89 (VTA2) - Body ground and other terminals

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

INSPECT ECM (VC VOLTAGE)

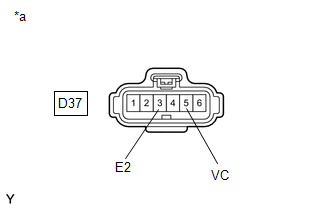

*a

Front view of wire harness connector

(to Throttle Body with Motor Assembly)

(a) Disconnect the throttle body with motor assembly connector.

(b) Turn the engine switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

D37-5 (VC) - D37-3 (E2)

Engine switch on (IG)

4.5 to 5.5 V

NG

REPLACE ECM

OK

4.

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

(a) Replace the throttle body with motor assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

Click here

NEXT

5.

CHECK WHETHER DTC OUTPUT RECURS (THROTTLE POSITION SENSOR DTCS)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG).

(g) Turn the Techstream on.

(h) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Trouble Codes.

(j) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P012011, P012015, P01201C, P022011, P022015 and/or P21352B are output

A

DTCs are not output

B

A

REPLACE ECM

B

END

    Engine Coolant Temperature Sensor 1 Signal Stuck in Range (P01152A)
    DESCRIPTION Refer to DTC P011511. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note P01152A Engine Coolant Temperature Sensor 1 Signal Stuck ...

    Insufficient Coolant Temperature for Closed Loop Fuel Control (P012500)
    DESCRIPTION Refer to DTC P011511. Click here DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note P012500 Insufficient Coolant Temperature for Closed Loop ...

    Other materials:

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Power Back Door System (w/ Outside Door Control Switch): Jam Protection Function Activates During Power Back Door Operation
    DESCRIPTION If the jam protection function activates during power back door operation, one of the following may be the cause: 1) improper fit of back door or a foreign object stuck in the back door, 2) malfunction in the power back door sensor assembly circuit or 3) multiplex network door ECU malfun ...

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Heated Steering Wheel Controller: Removal
    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the steering vibration and heater ECU removal/installation are shown below. Necessary Procedure After Part ...

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Owners Manual

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Repair Manual

    © 2024 Copyright www.lexusrx.net
    0.0153
