REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during throttle body with motor assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
---|---|---|---|
| Inspection After Repair |
| |
CAUTION:
Do not remove the radiator cap sub-assembly or radiator drain cock plug while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
PROCEDURE
1. DRAIN ENGINE COOLANT
Click here
2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
(a) Disconnect the mass air flow meter sub-assembly connector. |
|
(b) Disengage the wire harness clamp.
(c) Disengage the No. 1 fuel vapor feed hose from the air cleaner hose assembly. |
|
(d) Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose assembly.

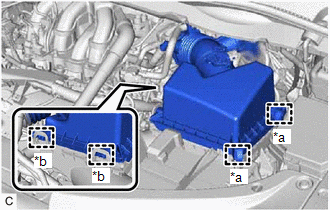

(e) Disengage the 2 air cleaner cap clamps. |
|
(f) Open the air cleaner cap sub-assembly and remove the air cleaner filter element sub-assembly from the air cleaner case sub-assembly.
(g) Disengage the 2 guides to separate the air cleaner cap sub-assembly from the air cleaner case sub-assembly.
(h) Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly. |
|
3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
(a) Slide the 2 clips and disconnect the No. 2 water by-pass hose and No. 3 water by-pass hose from the throttle body with motor assembly. |
|
(b) Disconnect the throttle body with motor assembly connector. |
|
(c) Remove the 4 bolts and throttle body with motor assembly from the intake air surge tank assembly.
NOTICE:
If the throttle body with motor assembly has been struck or dropped, replace it.
4. REMOVE THROTTLE BODY GASKET
(a) Remove the throttle body gasket from the intake air surge tank assembly. |
|
