Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Multiplex Tilt And Telescopic Ecu
Components
COMPONENTS
ILLUSTRATION

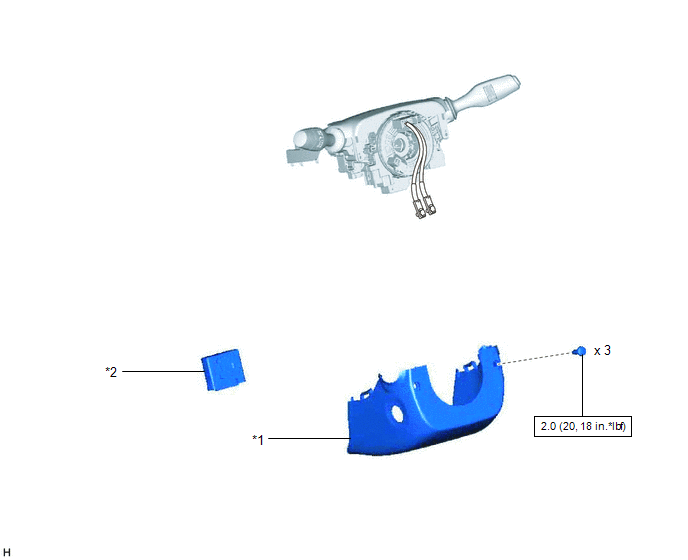

| *1 | LOWER STEERING COLUMN COVER | *2 | MULTIPLEX TILT AND TELESCOPIC ECU |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Installation
INSTALLATION
PROCEDURE
1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
(a) Engage the claw to install the multiplex tilt and telescopic ECU.
.png) | Install in this direction |
(b) Connect the connector.
2. INSTALL LOWER STEERING COLUMN COVER
Click here .gif)
3. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Click here
Removal
REMOVAL
PROCEDURE
1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS
Click here .gif)
2. REMOVE LOWER STEERING COLUMN COVER
Click here
3. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU
(a) Disconnect the connector.
| *a | Protective Tape |
.png) | Remove in this direction |

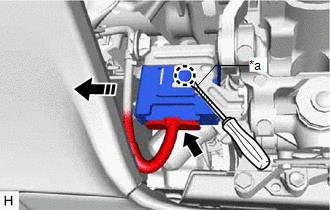

(b) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the multiplex tilt and telescopic ECU.
Terminals Of Ecu
TERMINALS OF ECU STEERING WHEEL HEATER CONTROL ASSEMBLY HINT: Perform the inspection from the harness side with the connectors connected. (a) Measure the voltage or resistance according to the value( ...
