Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components
COMPONENTS

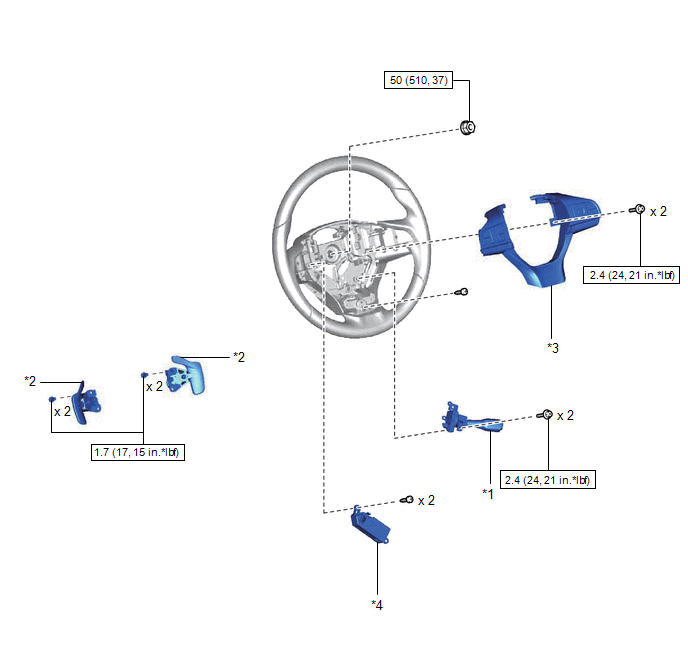

ILLUSTRATION
| *1 | CRUISE CONTROL MAIN SWITCH | *2 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | STEERING VIBRATION AND HEATER ECU |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| ★ | Precoated Part | - | - |
Installation
INSTALLATION PROCEDURE 1. INSTALL STEERING VIBRATION AND HEATER ECU (a) Connect the connector to the steering vibration and heater ECU. (b) Install the steering vibration and heater ECU to the lower s ...
