Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *1 | STEERING WHEEL ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

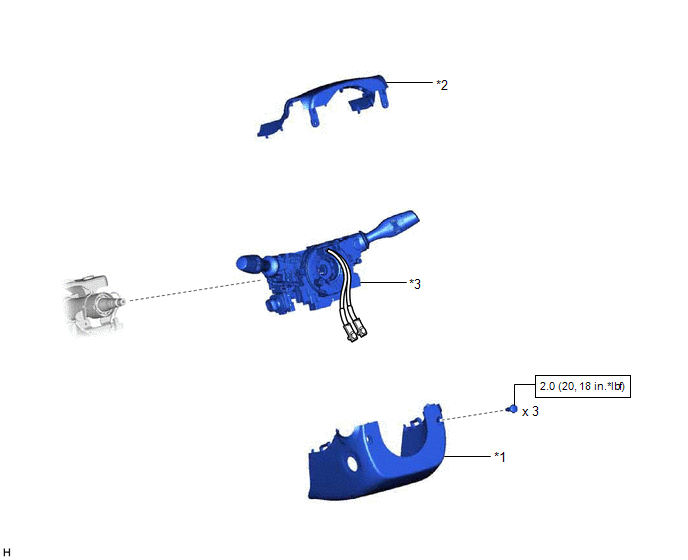

| *1 | LOWER STEERING COLUMN COVER | *2 | UPPER STEERING COLUMN COVER |
| *3 | TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | CONSOLE BOX ASSEMBLY | *2 | CONSOLE PANEL SUB-ASSEMBLY |
| *3 | CONSOLE REAR END PANEL SUB-ASSEMBLY | *4 | REAR CONSOLE UPPER PANEL |
| *5 | SHIFT LEVER KNOB SUB-ASSEMBLY | - | - |
ILLUSTRATION

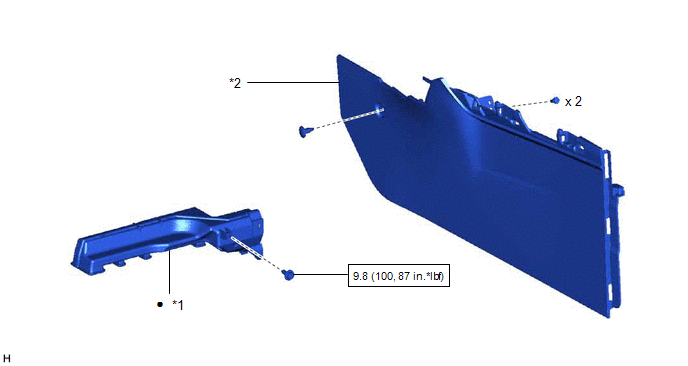

| *1 | NO. 4 AIR DUCT SUB-ASSEMBLY | *2 | FRONT NO. 1 CONSOLE BOX INSERT |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | STEERING COLUMN ASSEMBLY | *2 | STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | ELECTRIC POWER STEERING MOTOR SHAFT DAMPER | *4 | STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY |
| *5 | MULTIPLEX TILT AND TELESCOPIC ECU | *6 | STEERING LOCK SET BOLT |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
.png) | Grease | - | - |
Disassembly
DISASSEMBLY CAUTION / NOTICE / HINT NOTICE:
Do not drop the power steering ECU assembly, strike it with tools or subject it to impacts.
If the power steering ECU assembly is subjected to an impac ...
