COMPONENTS

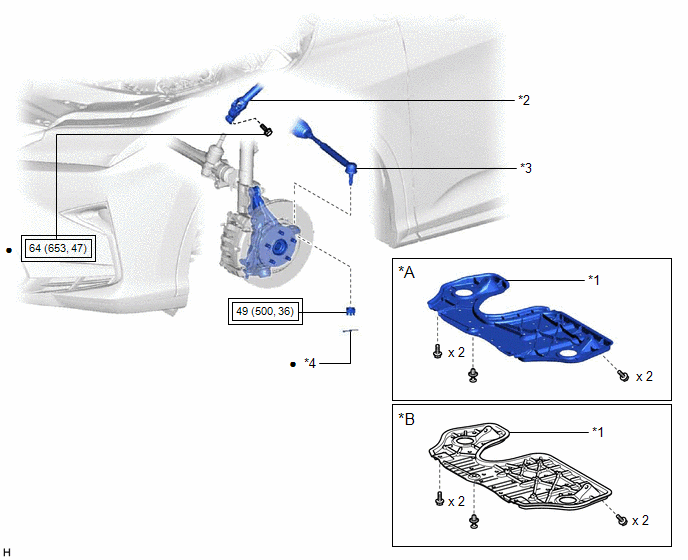

ILLUSTRATION
| *A | for TMC Made | *B | for TMMC Made |
| *1 | NO. 2 ENGINE UNDER COVER | *2 | STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *3 | TIE ROD ASSEMBLY LH | *4 | COTTER PIN |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *1 | FRONT NO. 1 STABILIZER BRACKET LH | *2 | FRONT NO. 1 STABILIZER BRACKET RH |
| *3 | FRONT NO. 2 STABILIZER BRACKET LH | *4 | FRONT NO. 2 STABILIZER BRACKET RH |
| *5 | FRONT STABILIZER BAR | *6 | FRONT STABILIZER LINK ASSEMBLY LH |
| *7 | FRONT STABILIZER LINK ASSEMBLY RH | *8 | STEERING LINK ASSEMBLY |
| *9 | FRONT FRAME ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | STEERING GEAR ASSEMBLY | *2 | TIE ROD ASSEMBLY LH |
| *3 | TIE ROD ASSEMBLY RH | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | NO. 1 STEERING RACK BOOT | *2 | NO. 2 STEERING RACK BOOT |
| *3 | NO. 2 STEERING RACK BOOT CLAMP | *4 | STEERING RACK BOOT CLIP |
| ● | Non-reusable part | .png) | Lithium soap base glycol grease |
Steering Gear
...
Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE STEERING RACK BOOT CLIP (for LH Side) (a) Using pliers, remove the steering rack boot clip. 2. REMOVE STEERING RACK BOOT CLIP (for RH Side) HINT: Perform the same proce ...
