Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *1 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH | *2 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH |
| *3 | REAR BUMPER ASSEMBLY | *4 | REAR LIGHT COVER LH |
| *5 | REAR LIGHT COVER RH | - | - |

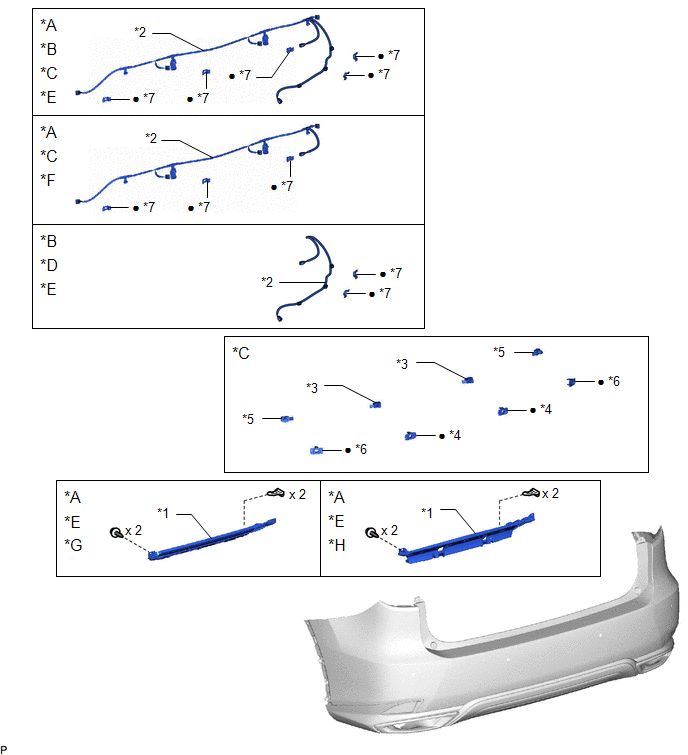

ILLUSTRATION
| *A | for TMC Made | *B | for TMMC Made |
| *C | w/ Intuitive Parking Assist System | *D | w/o Intuitive Parking Assist System |
| *E | w/ Kick Sensor | *F | w/o Kick Sensor |
| *G | except F-Sport | *H | for F-Sport |
| *1 | KICK DOOR CONTROL SENSOR WITH BRACKET | *2 | NO. 3 LUGGAGE ROOM WIRE |
| *3 | REAR CENTER ULTRASONIC SENSOR | *4 | REAR CENTER ULTRASONIC SENSOR RETAINER |
| *5 | REAR CORNER ULTRASONIC SENSOR | *6 | REAR CORNER ULTRASONIC SENSOR RETAINER |
| *7 | ULTRASONIC SENSOR CLIP | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | NO. 1 MOULDING TAPE | *2 | REAR BUMPER EXTENSION SUB-ASSEMBLY LH |
| *3 | REAR BUMPER EXTENSION SUB-ASSEMBLY RH | *4 | REFLEX REFLECTOR ASSEMBLY LH |
| *5 | REFLEX REFLECTOR ASSEMBLY RH | *6 | GROMMET |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | for TMMC Made with Kick Sensor | *B | except TMMC Made with Kick Sensor |
| *C | except F-Sport | *D | for F-Sport |
| *1 | CENTER REAR BUMPER EXTENSION SUB-ASSEMBLY | *2 | KICK DOOR CONTROL SENSOR WITH BRACKET |
| *3 | REAR BUMPER EXTENSION RETAINER LH | *4 | REAR BUMPER EXTENSION RETAINER RH |
ILLUSTRATION
| *A | w/o Towing Hitch | - | - |
| *1 | LOWER REAR BUMPER RETAINER LH | *2 | LOWER REAR BUMPER RETAINER RH |
| *3 | NO. 1 REAR BUMPER REINFORCEMENT | *4 | REAR BUMPER ENERGY ABSORBER |
| *5 | REAR BUMPER SIDE RETAINER LH | *6 | REAR BUMPER SIDE RETAINER RH |
| *7 | REAR WHEEL HOUSE LINER LH | *8 | REAR WHEEL HOUSE LINER RH |
| *9 | UPPER REAR BUMPER RETAINER LH | *10 | UPPER REAR BUMPER RETAINER RH |
| *11 | GROMMET | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Towing Hitch | - | - |
| *1 | RECEIVER HITCH BRACKET LH | *2 | RECEIVER HITCH BRACKET RH |
| *3 | RECEIVER HITCH BRACKET SUB-ASSEMBLY | *4 | TOWING SOCKET |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rea ...
