Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Removal
REMOVAL
PROCEDURE
1. REMOVE INSTRUMENT PANEL GARNISH LH
Click here .gif)
2. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
3. REMOVE COWL SIDE TRIM BOARD LH
Click here
4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
5. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Click here
6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Click here
7. REMOVE AUTOMATIC HIGH BEAM MAIN SWITCH ASSEMBLY (INTEGRATION CONTROL AND PANEL ASSEMBLY)

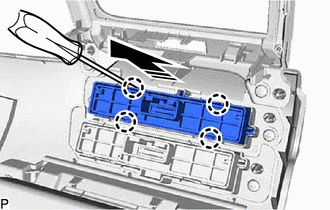

(a) Using a screwdriver, disengage the 4 claws and remove the automatic high beam switch assembly (integration control and panel assembly) as shown in the illustration.
.png)
.png) | Remove in this Direction |
Inspection
INSPECTION PROCEDURE 1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (AUTOMATIC HIGH BEAM SWITCH) (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: ...
Installation
INSTALLATION PROCEDURE 1. INSTALL AUTOMATIC HIGH BEAM MAIN SWITCH ASSEMBLY (INTEGRATION CONTROL AND PANEL ASSEMBLY) (a) Engage the 4 claws to install the automatic high beam main switch assembly (inte ...
