DISASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)

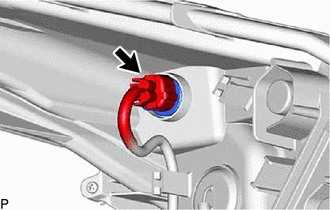

| (a) Disconnect the connector. |
|
(b) Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to remove them as a unit.
.png) | Remove in this Direction |
(c) Remove the front turn signal light bulb from the front turn signal light socket.
2. REMOVE FRONT TURN SIGNAL LIGHT SOCKET (for Bulb Type Turn Signal Light)
3. REMOVE FRONT SIDE MARKER LIGHT BULB (for Bulb Type Turn Signal Light)
| (a) Disconnect the connector. |
|
(b) Turn the front side marker light socket with the front side marker light bulb as shown in the illustration to remove them as a unit.
| | Remove in this Direction |
(c) Remove the front side marker light bulb from the front side marker light socket.
4. REMOVE FRONT SIDE MARKER LIGHT SOCKET (for Bulb Type Turn Signal Light)
5. REMOVE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY (w/ Automatic Headlight Beam Level Control System)
Click here .gif)
6. REMOVE HEADLIGHT GASKET (w/ Automatic Headlight Beam Level Control System)
Click here
7. REMOVE HEADLIGHT UNIT
Components
COMPONENTS ILLUSTRATION *1 FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP *2 HEADLIGHT ASSEMBLY *3 CENTER HOOD CUSHION - - N*m (kgf*cm, ft.*lbf): Specified torque - - IL ...
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during head ...
