Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL REAR LIGHT LENS AND BODY (for Bulb Type Turn Signal Light)
2. INSTALL LICENSE PLATE LIGHT SHADE

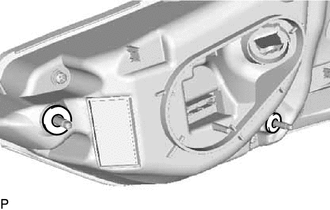

| (a) for Bulb Type Turn Signal Light: (1) Install 2 new license plate light shades. |
|
.png)

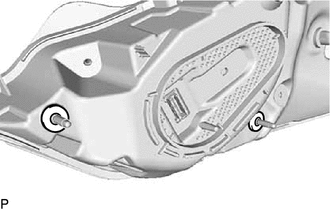

| (b) for LED Type Turn Signal Light: (1) Install 2 new license plate light shades. |
|
.png)
3. INSTALL REAR LIGHT GASKET

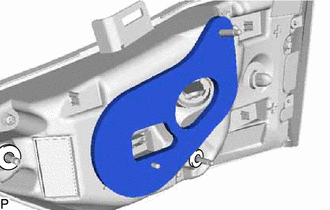

| (a) for Bulb Type Turn Signal Light: (1) Install a new rear light gasket. |
|
.png)

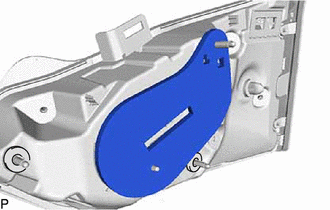

| (b) for LED Type Turn Signal Light: (1) Install a new rear light gasket. |
|
.png)
4. INSTALL REAR LIGHT SOCKET AND WIRE
(a) for Bulb Type Turn Signal Light:

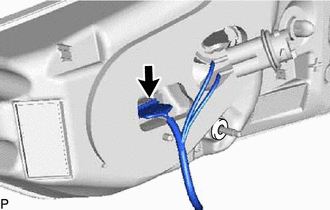

| (1) Connect the connector to install the rear light socket and wire. |
|
.png)
(b) for LED Type Turn Signal Light:

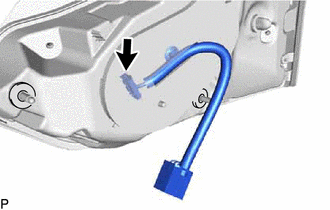

| (1) Connect the connector to install the rear light socket and wire. |
|
.png)
5. INSTALL BACK-UP LIGHT BULB (for Bulb Type Turn Signal Light)
(a) Install the back-up light bulb to the rear light socket and wire.

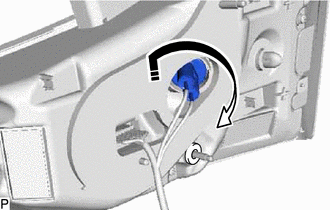

(b) Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.
.png) | Install in this Direction |
