REMOVAL

PROCEDURE

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click here

2. REMOVE AIR CONDITIONER PRESSURE SENSOR

(a) Disconnect the connector.

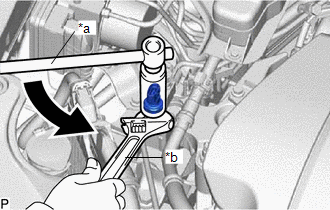

(b) Using a 27 mm deep socket wrench, remove the air conditioner pressure sensor as shown in the illustration.

NOTICE:

Seal the opening of the air conditioning tube and accessory assembly using vinyl tape to prevent entry of moisture and foreign matter.

*a

Turn

*b

Hold
