Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Inspection
INSPECTION
PROCEDURE

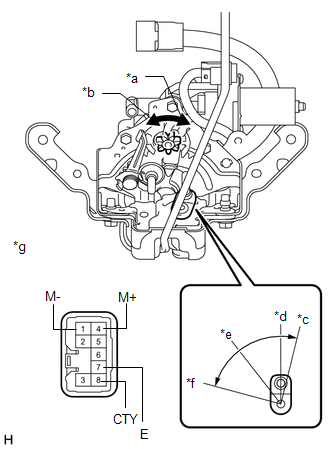

1. INSPECT BACK DOOR LOCK ASSEMBLY
| *a | Clockwise |
| *b | Counterclockwise |
| *c | Over-latch |
| *d | Full-latch |
| *e | Half-latch |
| *f | Open-latch |
| *g | Component without harness connected (Back Door Lock Assembly) |
(a) Apply battery voltage to the door lock motor and check the operation of the door lock motor.
OK:
| Measurement Condition | Result |
|---|---|
| Battery positive (+) → 4 (M+) Battery negative (-) → 1 (M-) | Latch turns to open-latch position (rotates clockwise) |
| Battery positive (+) → 1 (M-) Battery negative (-) → 4 (M+) | Latch turns to full-latch position (rotates counterclockwise) |
If the result is not as specified, replace the back door lock assembly.
(b) Check the operation of the back door courtesy switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| 8 (CTY) - 7 (E) | Open-latch | Below 1 Ω |
| 8 (CTY) - 7 (E) | Half-latch | Below 1 Ω |
| 8 (CTY) - 7 (E) | Half-latch → Full-latch | Below 1 Ω → 10 kΩ or higher |
| 8 (CTY) - 7 (E) | Full-latch | 10 kΩ or higher |
| 8 (CTY) - 7 (E) | Over-latch | 10 kΩ or higher |
If the result is not as specified, replace the back door lock assembly.
