COMPONENTS

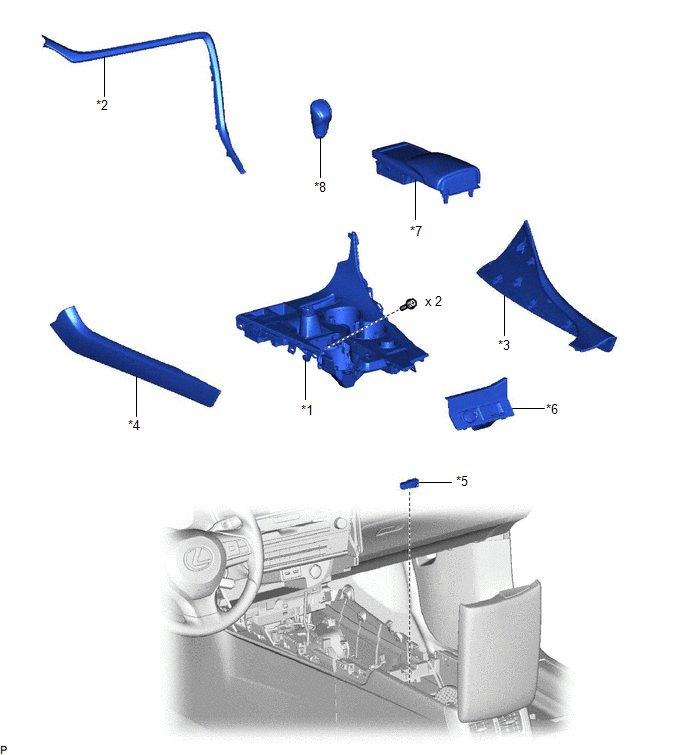

ILLUSTRATION

*1

CONSOLE PANEL SUB-ASSEMBLY

*2

INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

*3

LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

*4

LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

*5

NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

*6

REAR CONSOLE BOX GARNISH

*7

REAR CONSOLE UPPER PANEL

*8

SHIFT LEVER KNOB SUB-ASSEMBLY
    Console Box Light (for Console Box Front Side)
    ...

    Inspection
    INSPECTION PROCEDURE 1. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (a) Inspect the No. 1 interior illumination light. (1) Apply battery voltage to each terminal of No. 1 interior illuminati ...
