Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Console Box Light (for Console Box Rear Side)

Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual / Vehicle Interior / Lighting (int) / Console Box Light (for Console Box Rear Side)

Components

COMPONENTS

ILLUSTRATION

*1

CONSOLE REAR END PANEL SUB-ASSEMBLY

*2

NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

*3

REAR CONSOLE ARMREST ASSEMBLY

-

-

Removal

REMOVAL

PROCEDURE

1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

Click here

2. REMOVE REAR CONSOLE ARMREST ASSEMBLY

Click here

3. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

(a) Disconnect the connector.

(b) Disengage the 2 claws to remove the No. 1 interior illumination light assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

(a) Inspect the No. 1 interior illumination light.

(1) Apply battery voltage to each terminal of No. 1 interior illumination light connector and check the operation of the No. 1 interior illumination light.

Result:

Connection

Specified Condition

Battery positive (+) → 2

Battery negative (-) → 1

No. 1 interior illumination light comes on

If the result is not as specified, replace the No. 1 interior illumination light assembly.

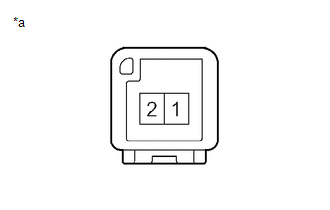

*a

Component without harness connected

(No. 1 interior Illumination Light Assembly)

Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

(a) Engage the 2 claws to install the No. 1 interior illumination light assembly.

(b) Connect the connector.

2. INSTALL REAR CONSOLE ARMREST ASSEMBLY

Click here

3. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

Click here
