Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Removal
REMOVAL
PROCEDURE
1. REMOVE INSTRUMENT PANEL GARNISH RH
Click here .gif)
2. REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Click here
3. REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure as for the LH side.
Click here
4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
5. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Click here
6. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Click here
7. REMOVE GLOVE BOX LIGHT ASSEMBLY

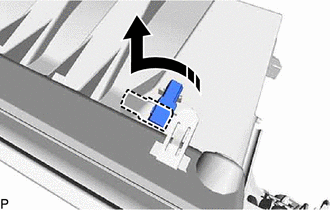

(a) Turn the glove box light assembly as shown in the illustration to remove it.
.png) | Remove in this Direction |
Components
COMPONENTS ILLUSTRATION *1 COWL SIDE TRIM BOARD RH *2 FRONT DOOR SCUFF PLATE RH *3 GLOVE BOX LIGHT ASSEMBLY *4 GLOVE COMPARTMENT DOOR ASSEMBLY *5 INSTRUMENT PANEL GARNISH RH ...
Inspection
INSPECTION PROCEDURE 1. INSPECT GLOVE BOX LIGHT ASSEMBLY (a) Inspect the glove box light. (1) Apply battery voltage to each terminal of glove box light assembly connector and check the operation of ...
