Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 2 POWER OUTLET SOCKET COVER

(a) Engage the 2 claws to install the No. 2 power outlet socket cover as shown in the illustration.

Install in this Direction

2. INSTALL NO. 2 POWER OUTLET SOCKET ASSEMBLY

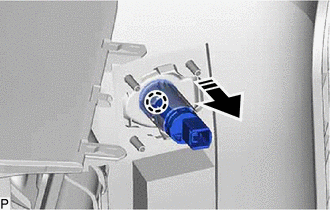

(a) Engage the claw to install the No. 2 power outlet socket assembly as shown in the illustration.

Install in this Direction

3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

Click here

4. INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR

Click here

5. INSTALL NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

Click here

6. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

Click here

7. INSTALL ROPE HOOK ASSEMBLY (for LH Side)

Click here

8. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

Click here

9. INSTALL REAR SEAT SIDE GARNISH LH

Click here

10. INSTALL FRONT DECK SIDE TRIM COVER LH

Click here

11. INSTALL REAR SEAT OUTER TRACK BRACKET COVER LH

for 60/40 Split Seat Type:

Click here

for Captain Seat Type:

Click here

12. INSTALL REAR DOOR INSIDE SCUFF PLATE LH

Click here

13. INSTALL REAR DOOR SCUFF PLATE LH

Click here

14. INSTALL REAR NO. 2 SEAT ASSEMBLY

Click here
